RW400
AAC Clyde Space

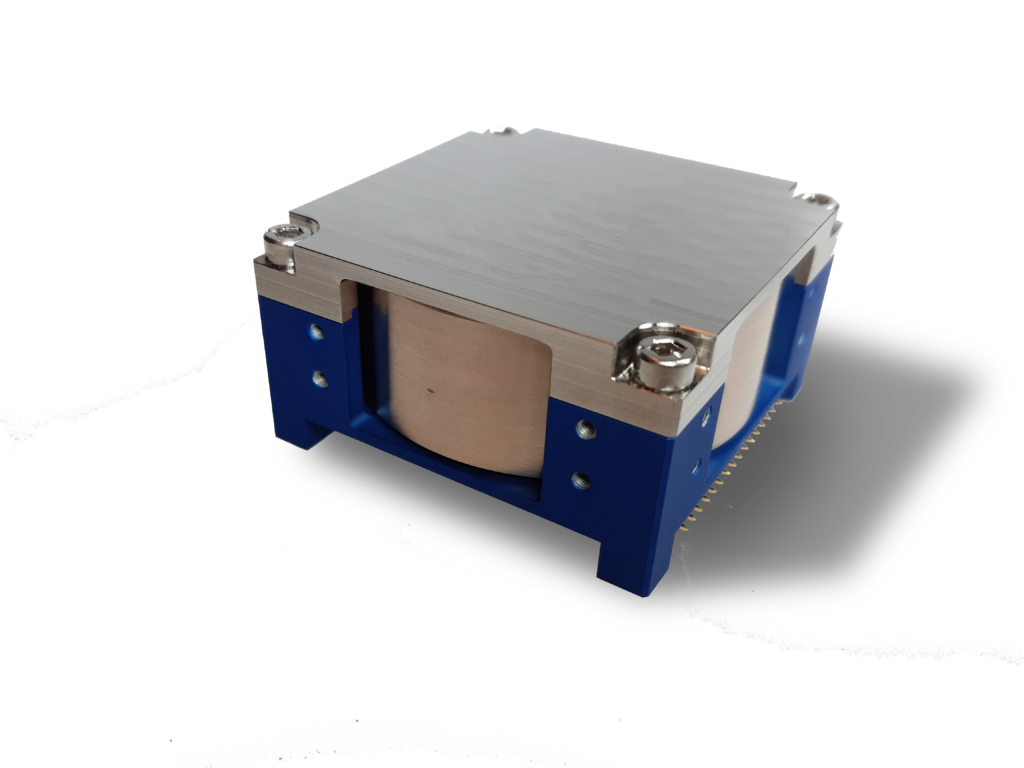

The RW400 is a reaction wheel designed for small satellite missions, offering high reliability, adaptability, and accuracy for precise pointing.
Typed specifications42 values
Discloses 8 of 10 fields engineers filter by in this category (category median 5).
- Mass
- 197 g 15 mN.m.s momentum storage variant · datasheet p.2 210 g 30 mN.m.s momentum storage variant | 375 g 50 mN.m.s momentum storage variant | 197 g one of three versions: 197 / 210 / 375 g | 210 g one of three versions: 197 / 210 / 375 g +1
- Envelope (L×W×H)
- 50 x 50 x 27 mm datasheet p.2
- Angular momentum storage
- 0.015 N·m·s +/- 15 mN.m.s version · datasheet p.2 0.03 N·m·s +/- 30 mN.m.s version | 0.05 N·m·s +/- 50 mN.m.s version
- Max torque
- 8 mN·m as published, mode unspecified · vendor page (catalogue a 12 mN·m min · > 12 mN.m braking | 8 mN·m max · +/- 8 mN.m
- Speed range
- 5 000 rpm product page 5 000 rpm max · maximum rotation speed
- Supply voltage
- 5 V nom. · typ. supply voltage · datasheet p.2 2.3 V min · Logic supply voltage | 4.5 V min · Supply voltage | 5.1 V max · Logic supply voltage | 5.25 V max · Supply voltage +3
- Power consumption
- 1 W Nominal · datasheet p.3 0.751 W | 1.9 W peak, typ. | 0.075 W max · idle | 15 W max · peak, max. +2
- Data interface
- I2C datasheet p.1 RS-422 bidirectional RS422 | RS-422
- Operating temperature
- -40–60 °C datasheet p.2
- Radiation tolerance (TID)
- 36 krad datasheet p.1 36 krad min · >36 krad (Si)
- Wheels in the unit
- 1 datasheet p.1
- Peak power
- 1.9 W peak, typ. · datasheet p.2 15 W max · peak, max.
- Satellite class
- CubeSat designed for 6 - 12U CubeSat platforms · datasheet p.1 microsat 10-100 kg
- Drive electronics
- integrated datasheet p.1
Each value is typed with its unit and measurement condition and cites the datasheet page it was taken from. Nothing is guessed: a field that is absent here has not been published by the manufacturer. machine-extracted ✓ checked by NewSpace Market ✓ manufacturer confirmed by the manufacturer.
As published by the supplier17 lines, in the manufacturer's own wording
- Product name
- Trillian-1 (RW400)
- Application
- Small Satellite missions
- Key features
- High reliability, adaptability, and accuracy
- Total momentum storage
- +/- 15, +/- 30, +/- 50 mN.m. s
- Maximum torque
- +/- 8 mN.m
- Maximum rotation speed
- 5000 rpm
- Control accuracy
- +/- 1 % of target rpm
- Dimensions
- 50 x 50 x 27 mm
- Mass
- 197 / 210 / 375 g
- Operating temperature
- -40 to +60 °C
- Radiation tolerance
- >36 krad (Si)
- Supply voltage
- 4.5 V (Min), 5.0 V (Typ), 5.25 V (Max)
- Logic supply voltage
- 2.3 V (Min), 3.3 V (Typ), 5.1 V (Max)
- Bus logic level voltage
- 3.3 - 5.1 V
- Idle Power
- 751 mW (Max)
- Nominal Power
- 1000 mW (Typ)
- Peak Power
- 1900 mW (Typ), 15000 mW (Max)
