ST200
AAC Clyde Space

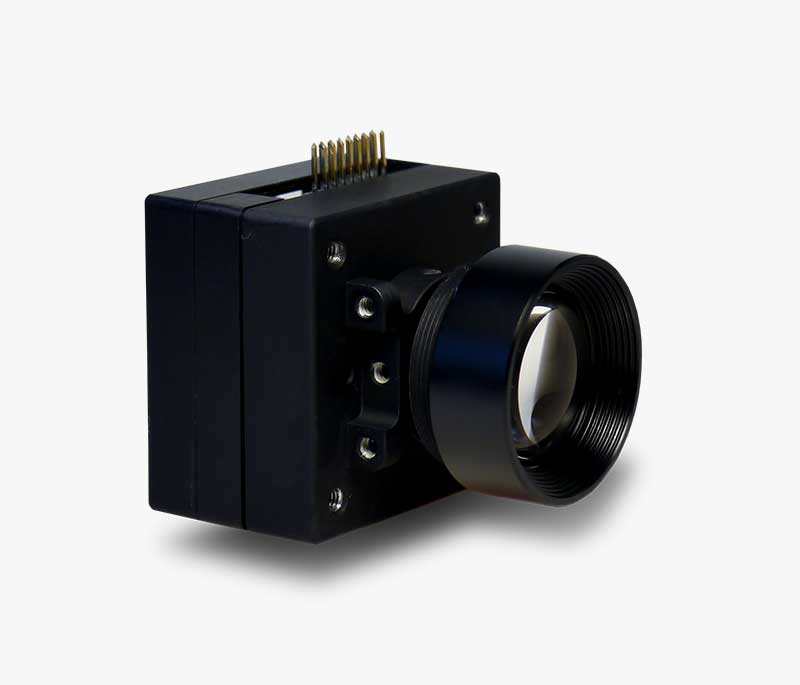

The ST200 is a star tracker designed for small satellites, providing attitude determination capabilities.
Typed specifications50 values
Discloses 10 of 12 fields engineers filter by in this category (category median 8).
- Accuracy, cross-boresight
- 30 arcsec pitch, yaw, 3-sigma · datasheet p.2 30 arcsec pitch, yaw; 3-sigma
- Mass
- 42 g datasheet p.1 42 g excluding baffle
- Accuracy, about boresight (roll)
- 200 arcsec 3-sigma · datasheet p.2 200 arcsec roll; 3-sigma
- Envelope (L×W×H)
- 29 x 29 x 38.1 outer dimensions, without baffle · datasheet p.2 29 x 29 x 38.1 mm without baffle
- Update rate
- 5 Hz datasheet p.1
- Max tracking rate
- 0.6 °/s max · roll · datasheet p.2 0.6 °/s max · roll, < 0.6 | 0.3 °/s max · tip/tilt | 0.3 °/s max · tip/tilt, < 0.3
- Sun exclusion angle
- 30 ° optional baffle · datasheet p.2 30 ° optional baffle sun exclusion half angle, standard size | 45 ° optional baffle | 45 ° optional baffle sun exclusion half angle, standard size
- Field of view
- 15 ° product page
- Supply voltage
- 3.6 V min · datasheet p.2 34 V max | 3.6–34 V
- Power consumption
- 0.6 W nominal · datasheet p.1 0.6 W key highlights: low power | 0.7 W typical | 0.37 W min | 0.7 W typ. +3
- Data interface
- RS-422 optional · datasheet p.1 UART TTL | UART TTL UART interface | RS-422 | RS-485 optional +3
- Operating temperature
- -20 °C min · datasheet p.2 40 °C max | -20–40 °C
- Radiation tolerance (TID)
- 9 krad datasheet p.1 9 krad all components
- TRL
- 9 product page
- Configuration
- single unit datasheet p.1
- Flight heritage
- flying since 2015 on over 20 missions datasheet p.1
- Satellite class
- CubeSat datasheet p.1 nanosat 1-10 kg pico and nano-satellite platforms
- Missions flown
- 20 datasheet p.1 20 min · over 20 missions, flying since 2015
- Baffle
- optional datasheet p.1
Each value is typed with its unit and measurement condition and cites the datasheet page it was taken from. Nothing is guessed: a field that is absent here has not been published by the manufacturer. machine-extracted ✓ checked by NewSpace Market ✓ manufacturer confirmed by the manufacturer.
As published by the supplier15 lines, in the manufacturer's own wording
- Attitude accuracy (cross-boresight)
- <10 arcsec (1σ)
- Attitude accuracy (roll)
- <30 arcsec (1σ)
- Update rate
- Up to 5 Hz
- Acquisition time
- <5 s (initial), <1 s (tracking)
- Field of view
- 15° x 15°
- Limiting magnitude
- Mv = 6.5
- Interface
- RS-232 / SpaceWire
- Supply voltage
- 5 V / 12 V
- Power consumption
- ~3 W
- Operating temperature
- -30°C to +60°C
- Mass
- ~300 g
- Dimensions
- ~100 x 100 x 80 mm
- Radiation tolerance
- 10 KRad
- TRL level
- 9
- Star catalog
- Embedded (>100,000 stars)
About
The ST200 is a star tracker developed by AAC Hyperion, specifically aimed at small satellite systems. It is designed to provide attitude determination for these platforms. While the page does not provide extensive details on its features or how it works, it is mentioned in comparison to its successor, the ST400, which offers increased attitude determination accuracy and improved radiation tolerance. This implies the ST200 is a foundational product in their star tracker line for small satellite missions.
Documentation
Need the full ICD, test reports or a specific revision? Ask the supplier directly.
