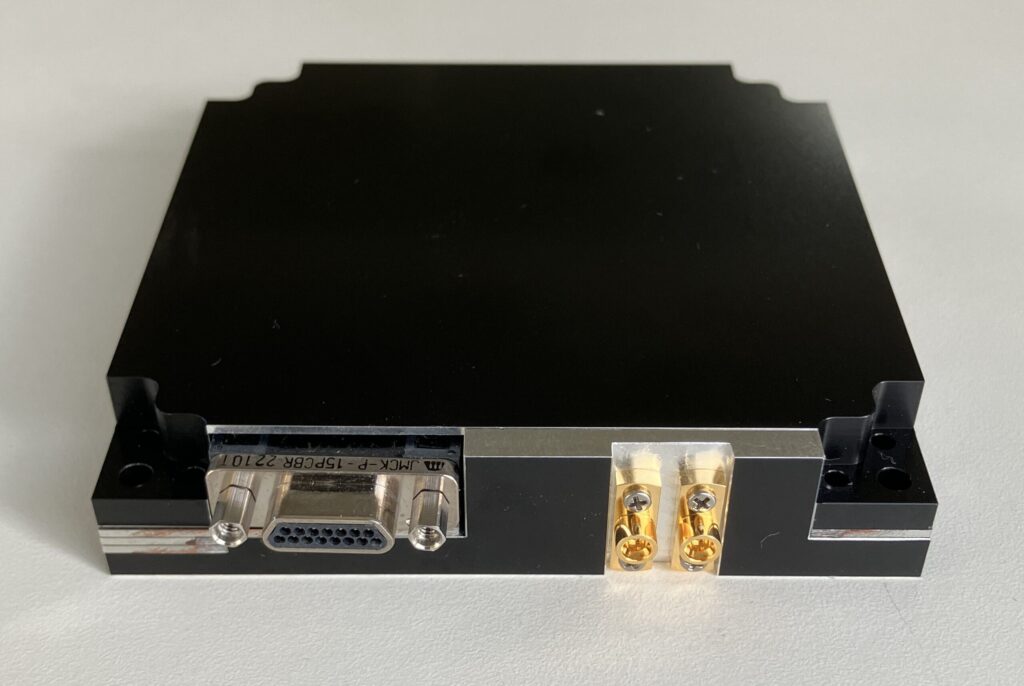

A88 Series S-Band Receiver (A88 SRX)
ADDNICS Corporation
Compact S-band uplink receiver for small satellite TT&C, 80x80x16 mm, 140 g max, covering -130 to -40 dBm input range with PCM-PSK-PM demodulation.
Typed specifications4 values
Discloses 1 of 13 fields engineers filter by in this category (category median 3).
- Envelope (L×W×H)
- 80 x 80 x 16 mm product page
- Modulation
- other PCM/PSK/PM (PSK subcarrier on phase-modulated carrier) · product page
- Operating temperature
- -20–60 °C product page
- Connector
- SMA or SMPM (RF), MDM-15 pin (power/data) product page
Each value is typed with its unit and measurement condition and cites the datasheet page it was taken from. Nothing is guessed: a field that is absent here has not been published by the manufacturer. machine-extracted ✓ checked by NewSpace Market ✓ manufacturer confirmed by the manufacturer.
As published by the supplier11 lines, in the manufacturer's own wording
- Frequency band
- S-band (customer-specified at order)
- Modulation
- PCM-PSK-PM
- Data rate
- 1 kbps or 4 kbps (selectable)
- Input level range
- -40 to -130 dBm
- Receive sensitivity
- -122 dBm at 1 kbps, BER=1e-4
- Power consumption
- max 1 W
- Supply voltage
- +5 V to +12 V
- Operating temperature
- -20 to +60 C
- Dimensions
- 80 x 80 x 16 mm
- Mass
- max 140 g
- Connectors
- SMA or SMPM (RF), MDM-15 pin (power/data)
About
The ADDNICS A88 SRX is the S-band receiver companion to the A88 STX transmitter in the A88 modular small-satellite TT&C family. Operating at a customer-specified S-band frequency, it demodulates PCM-PSK-PM uplink signals at 1 or 4 kbps data rates and covers a wide input level range from -130 to -40 dBm with a receive sensitivity of -122 dBm at 1 kbps BER=1e-4. Power consumption is 1 W max from a +5 V to +12 V supply. The A88 SRX shares the same 80×80 mm baseplate footprint and MDM-15 and SMA/SMPM connector interfaces as other A88 series modules, enabling straightforward integration alongside A88 STX, XTX, and X-TRP units. Operating temperature range is -20 to +60 C and mass is 140 g max.
Documentation
No public datasheet yet — request the datasheet / ICD from the supplier.
