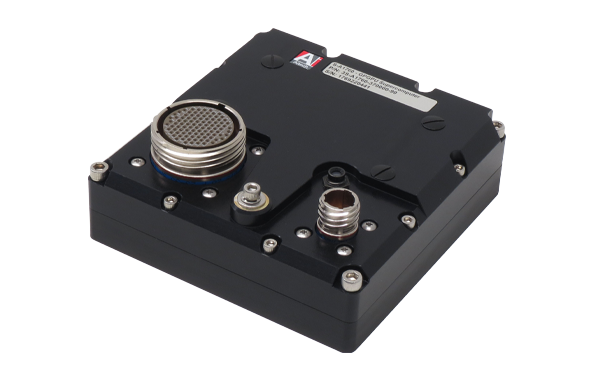

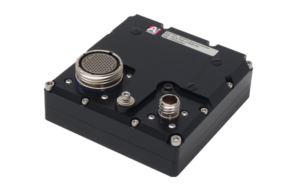

S-A1760 Venus Space GPGPU
Aitech Systems
The S-A1760 Venus is a radiation-characterized small form factor space GPGPU based on the NVIDIA Jetson TX2i with Pascal architecture, offering 256 CUDA cores, 1 TFLOPS, and 8 GB LPDDR4 ECC memory in a sub-1 kg package for NEO and LEO video and signal processing.
Typed specifications3 values
Discloses 2 of 13 fields engineers filter by in this category (category median 5).
- Processor
- NVIDIA Denver 2 Dual-Core ARM + Cortex A57 Quad-Core ARM product page
- Mass
- 1 000 g max · product page
- Mass storage
- 32 GB product page
Each value is typed with its unit and measurement condition and cites the datasheet page it was taken from. Nothing is guessed: a field that is absent here has not been published by the manufacturer. machine-extracted ✓ checked by NewSpace Market ✓ manufacturer confirmed by the manufacturer.
As published by the supplier12 lines, in the manufacturer's own wording
- Gpu
- NVIDIA Jetson TX2i, Pascal Architecture
- Cuda cores
- 256
- Cpu
- NVIDIA Denver 2 Dual-Core ARM + Cortex A57 Quad-Core ARM
- Performance
- 1 TFLOPS
- Energy efficiency
- 60 GFLOPS/W
- Memory
- 8 GB LPDDR4 with ECC
- Storage
- 32 GB SSD
- I/o
- Gigabit Ethernet, UART Serial, USB 2.0, Discretes, CANbus
- Form factor
- SFF 129 mm × 129 mm
- Mass
- < 1 kg
- Radiation
- Series 300 radiation characterization
- Software
- CUDA, OpenGL, OpenGL ES, EGL
About
The S-A1760 Venus is Aitech’s smallest and most power-efficient space-rated GPGPU system, designed specifically for short-duration spaceflight, near-Earth orbit, and LEO satellite applications requiring compact high-performance compute. It integrates the NVIDIA Jetson TX2i module featuring Pascal GPU architecture with 256 CUDA cores delivering 1 TFLOPS of compute at 60 GFLOPS per watt efficiency.
The system packs 8 GB of LPDDR4 memory with ECC protection and 32 GB of SSD storage into a 129 mm square footprint weighing under 1 kg. The heterogeneous CPU cluster combines NVIDIA Denver 2 dual-core ARM and Cortex A57 quad-core ARM processors for flexible task distribution. Hardware H.264/H.265 encoding is included for video compression workloads.
Connectivity encompasses Gigabit Ethernet, UART serial, USB 2.0, discrete I/O signals, and CANbus for spacecraft bus integration. The S-A1760 Venus carries Series 300 radiation characterization and is actively used in distributed processing architectures for satellite imaging, autonomous navigation, and signal intelligence applications.
Documentation
No public datasheet yet — request the datasheet / ICD from the supplier.
