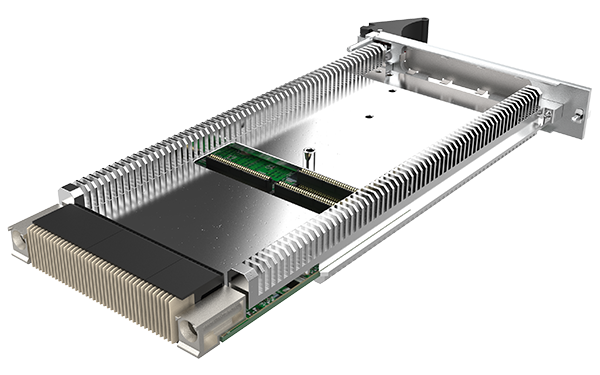

SP1-S Aquarius™ Radiation Tolerant 3U SpaceVPX SBC
Aitech Systems
The SP1-S Aquarius™ is a radiation-tolerant 3U SpaceVPX single-board computer powered by NXP Layerscape LS1046A (four 64-bit ARM Cortex-A72 cores at 1.8 GHz) designed for LEO, GEO, lunar, and deep-space missions with SpaceWire, SpaceFibre, CANbus support and 100 krad TID tolerance.
Typed specifications7 values
Discloses 5 of 13 fields engineers filter by in this category (category median 5).
- Processor
- NXP Layerscape LS1046A SoC product page Four 64-bit ARM Cortex-A72
- CPU clock
- 1 800 MHz product page
- Operating system
- Linux product page VxWorks
- Power consumption
- 50 W max · product page
- Radiation tolerance (TID)
- 100 krad product page
Each value is typed with its unit and measurement condition and cites the datasheet page it was taken from. Nothing is guessed: a field that is absent here has not been published by the manufacturer. machine-extracted ✓ checked by NewSpace Market ✓ manufacturer confirmed by the manufacturer.
As published by the supplier12 lines, in the manufacturer's own wording
- Processor
- NXP Layerscape LS1046A SoC
- Cpu cores
- Four 64-bit ARM Cortex-A72
- Clock speed
- 1.8 GHz
- Memory
- 4/8 GB DDR4 @ 1050 MHz with ECC
- FPGA
- Radiation-tolerant Polarfire FPGA
- Power consumption
- < 50 W
- Total ionizing dose
- 100 krad (Si)
- Latch-up immunity
- 67 MeV-cm²/mg
- Form factor
- 3U SpaceVPX (VITA 78)
- Cooling
- Air-cooled (Lab) / Conduction-cooled (GEO+)
- I/o interfaces
- Gigabit Ethernet, GPIO, UART, Watchdog, USB 2.0, 1PPS, SpaceWire, SpaceFibre, CANbus, SPI
- Operating systems
- Linux, VxWorks RTOS
About
The SP1-S Aquarius™ is Aitech’s flagship 3U SpaceVPX space-rated single-board computer, engineered for high-performance space missions spanning low Earth orbit through deep space. It is built around the NXP Layerscape LS1046A SoC with four 64-bit ARM Cortex-A72 cores running at 1.8 GHz, backed by 4 or 8 GB of DDR4 memory at 1050 MHz with ECC protection and a radiation-tolerant Polarfire FPGA co-processor.
The board targets demanding applications including orbit computation, Earth observation edge processing, command and data handling, robotic vision processing, power distribution control, and signal analysis. It complies with the SpaceVPX (VITA 78) open standard and supports the full range of space communication protocols including SpaceWire, SpaceFibre, CANbus, SPI, USB 2.0, and 1PPS timing.
With a total ionizing dose tolerance of 100 krad (Si) and latch-up immunity to 67 MeV-cm²/mg, the SP1-S covers the full radiation environment from LEO through GEO and beyond. It is available in air-cooled laboratory/EDU configurations and conduction-cooled flight units suitable for GEO+ missions. The board supports Linux and VxWorks RTOS.
Documentation
No public datasheet yet — request the datasheet / ICD from the supplier.
