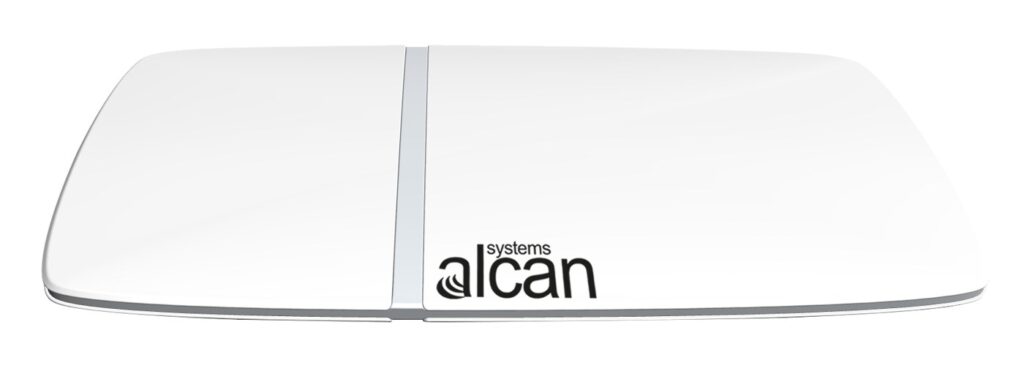

Enterprise NGSO Terminal
ALCAN Systems
Low-cost, electronically steered flat-panel Ka-band ground terminal for LEO/MEO satellite broadband.
Typed specifications31 values
Discloses 8 of 13 fields engineers filter by in this category (category median 2).
- Frequency bands
- Ka Receive · datasheet p.1 Ka Rx 17.7 - 20.2 GHz | Ka Transmit | Ka Tx 27.5 - 30.0 GHz
- Mass
- 18 kg datasheet p.1 20 kg max
- Frequency range
- 17 700 MHz min · Receive · datasheet p.1 27 500 MHz min · Transmit | 20 200 MHz max · Receive | 30 000 MHz max · Transmit | 17 700–20 200 MHz Receive Frequency +1
- Envelope (L×W×H)
- 550 x 995 x 90 mm datasheet p.1
- G/T
- 7.3 dB/K at 55 deg scan across band · datasheet p.1 7.3 dB/K at 55° scan across band | 10.8 dB/K at boresight across band
- EIRP
- 41.4 dBW at 55 deg scan · datasheet p.1 41.4 dBW at 55° scan | 44.9 dBW min · at boresight (6W BUC)
- Power consumption
- 35 W typical (exc. LNB and BUC) · datasheet p.1 98 W (inc. LNB and BUC)
- Operating temperature
- -20 °C min · datasheet p.1 55 °C max | -20–55 °C
- Offering
- antenna hardware flat-panel ground antenna · datasheet p.1
- Antenna type
- flat panel (VICTS or ESA) datasheet p.1
- Mount / pedestal
- electronic steering 55 deg conical 2D scan about boresight · datasheet p.1
- Polarization
- circular Fixed circular · datasheet p.1
- Transmit power
- 6 W BUC · datasheet p.1
- Cross-pol isolation
- 20 dB min · XPD · datasheet p.1
- Tracking
- electronic beam steering slew time < 20 ms at 20 C · datasheet p.1
Each value is typed with its unit and measurement condition and cites the datasheet page it was taken from. Nothing is guessed: a field that is absent here has not been published by the manufacturer. machine-extracted ✓ checked by NewSpace Market ✓ manufacturer confirmed by the manufacturer.
As published by the supplier12 lines, in the manufacturer's own wording
- Throughput
- In excess of 400 Mbps
- Beam steering
- 2D electronic, no moving parts
- Scan angle
- +/-55 degrees
- Duplex
- Full-duplex
- Slew time
- <30 ms
- Signal throughput reliability
- >99.5%
- Antenna size
- 55 cm x 99 cm x 9 cm
- Mass
- <20 kg
- Power consumption
- <100 W (including LNB and BUC)
- Frequency band
- Ka-band
- Supported orbits
- LEO, MEO
- Design
- Modular, combinable for higher gain/throughput
About
The Enterprise NGSO Terminal is ALCAN Systems’ flat-panel ground terminal built on the company’s liquid-crystal electronically steered antenna technology, targeted at enterprise connectivity over Low Earth Orbit (LEO) and Medium Earth Orbit (MEO) satellite constellations. ALCAN positions it as the market’s lowest-cost flat-panel ground terminal for NGSO broadband, delivering high-capacity Ka-band throughput without any mechanically moving parts.
The antenna uses two-dimensional electronic beam steering across a wide +/-55 degree scan angle, allowing it to track fast-moving non-geostationary satellites continuously. It is full-duplex, with slew times under 30 ms enabling greater than 99.5% signal throughput during satellite handovers. The terminal’s modular design allows multiple antenna panels to be combined to scale gain and throughput to customer requirements.
Target applications include cellular/ISP trunking and backhaul to difficult-to-reach locations, mission-critical enterprise connectivity and disaster recovery, and energy and mining site connectivity, particularly where low power consumption (including potential solar power) and low maintenance (no moving parts) are important.
