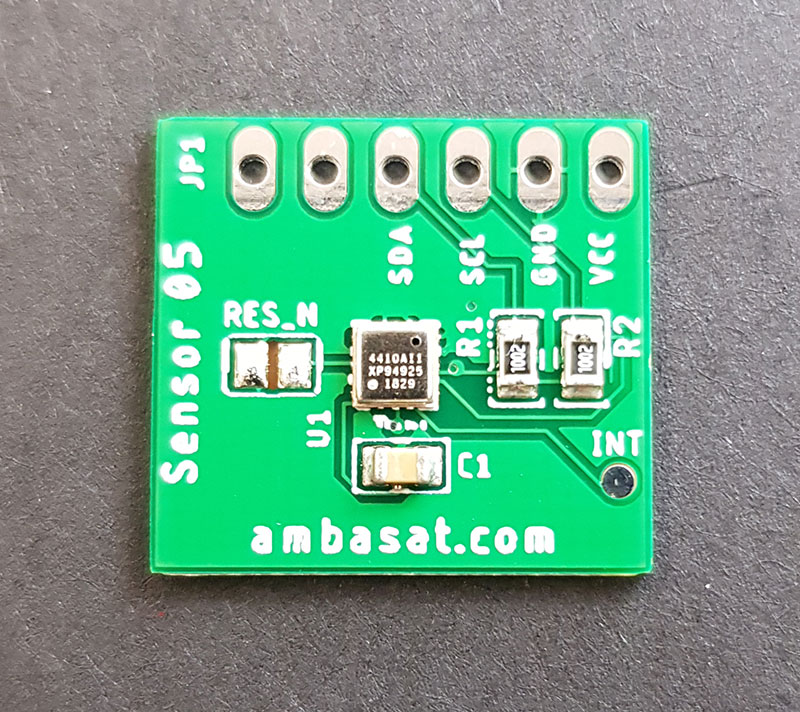

AmbaSat-1 Sensor 05

This pack includes the ZMOD4410AI1V sensor, an AmbaSat-1 Daughterboard, and all necessary daughterboard components (resistors, capacitors, etc.). The ZMOD4410AI1V is specifically designed for detecting total volatile organic compounds (TVOC). It is a 12-pin LGA assembly measuring 3.0 x 3.0 x 0.7 mm. The module comprises a gas sense element and a CMOS signal conditioning IC. The sense element features a heater element on a Si-based MEMS structure and a metal oxide (MOx) chemiresistor. The signal conditioner manages the sensor’s temperature and measures the MOx conductivity, which varies with gas concentration. The AmbaSat-1 Daughterboards are designed to plug into the AmbaSat-1 main satellite board and utilize the I2C interface for transmitting sensor data.
