Fixed Frequency Synthesizer 8-16 GHz FSN11200816QF
ReliaSat

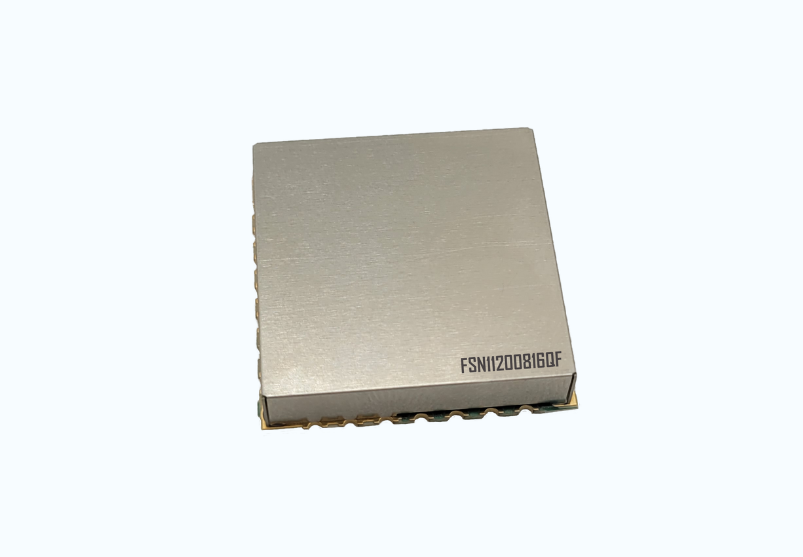

The FSN11200816QF is a low-phase-noise fixed-frequency microwave synthesizer covering a custom fixed frequency in the 8-16 GHz range, housed in a compact 25.4x25.4x6.35 mm surface-mount package with -103 dBc/Hz phase noise for SATCOM and radar LO applications.
Technical specifications
- Frequency range
- 8-16 GHz (custom fixed frequency)
- Phase noise
- -103 dBc/Hz
- Spurious
- <-80 dBc
- Package
- 25.4 x 25.4 x 6.35 mm surface mount
- Dimensions
- 25.4 x 25.4 x 6.35 mm
- Frequency
- 8-16 GHz
- Load Impedance
- 50 Ω
- Harmonics
- -25 dBc
- Subharmonics
- -25 dBc
- Reference Signal Input
- 10 / 100 / Custom on request MHz
- Operating temperature
- -40 to +85 °C
- Supply voltage
- 3.3 V
- Supply voltage (2)
- 5.0 V
About
The FSN11200816QF is a low-phase-noise, fixed-frequency microwave synthesizer providing a custom-specified output frequency within the 8-16 GHz range. It achieves -103 dBc/Hz phase noise with spurious content below -80 dBc, meeting the stringent LO requirements of Ka-band satellite transceiver front-ends, X-band radar systems, and precision microwave test equipment.
The synthesizer is packaged in an exceptionally compact 25.4×25.4×6.35 mm surface-mount package, enabling integration into space-constrained designs such as CubeSat payloads, compact satellite transceivers, and miniaturized ground terminals. The surface-mount format eliminates the need for coaxial connectors in LO distribution paths, reducing assembly complexity and improving phase noise.
The FSN11200816QF is ordered with a customer-specified fixed output frequency within 8-16 GHz, making it suitable for use as a stable reference oscillator or LO source in satellite communications, radar signal processors, frequency synthesizer chains for Ka-band upconverters, and 5G millimeter-wave base station LO generation.
