K-Band Flat Panel Passive Antenna PAN-8498-64-K
ReliaSat

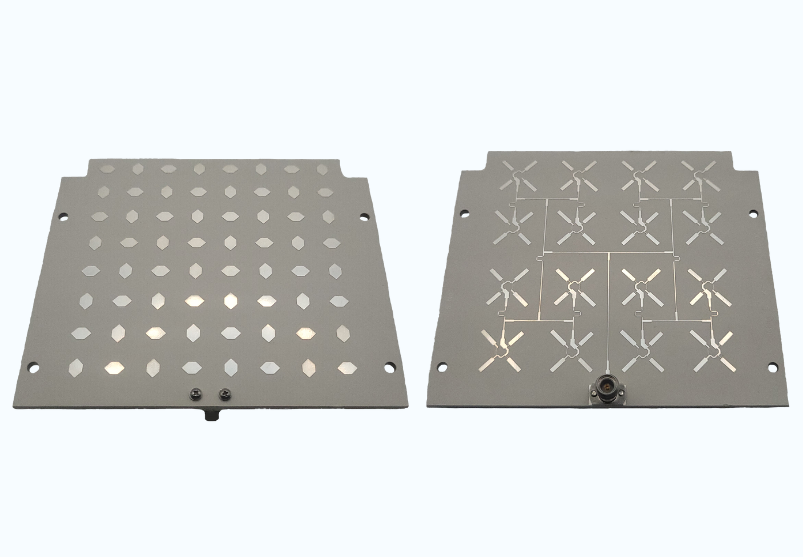

The PAN-8498-64-K is a 64-element K-band passive flat panel antenna covering 17-21 GHz with over 20 dBi peak gain and selectable LHCP or RHCP circular polarization, designed for satellite communications and 5G ground terminals.
Typed specifications28 values
Discloses 7 of 10 fields engineers filter by in this category (category median 2).
- Frequency band
- Ku datasheet p.2
- Peak gain
- 20 dBi min · Peak Gain >20 · datasheet p.2
- Mass
- 50 g max · datasheet p.2
- Frequency range
- 19 000 MHz nom. · centre frequency · datasheet p.1 17 000 MHz | 21 000 MHz max | 17 000–21 000 MHz | 17 000–21 000 MHz
- Beamwidth (-3 dB)
- 9 ° datasheet p.2 11 ° max | 9–11 ° HPBW 9 - 11
- Envelope (L×W×H)
- 84 x 98 mm datasheet p.2
- Polarization
- LHCP datasheet p.2 LHCP LHCP or RHCP, preconfigurable | RHCP | RHCP LHCP or RHCP, preconfigurable
- Antenna type
- Flat Panel Array datasheet p.1
- Power consumption
- 5 W product page
- Passive or active
- passive passive flat panel technology · datasheet p.1
- RF connector
- other K (rear mounted) · datasheet p.2
- Fixed or deployable
- fixed datasheet p.1
- Connector
- K (rear mounted) datasheet p.2
- Satellite class
- CubeSat Fits cubesats · datasheet p.1
- Fits satellite size
- custom Fits cubesats · datasheet p.1
- Beam steering
- fixed K-band Fixed Beam Flat Panel Antenna · datasheet p.1
- Axial ratio
- 3 dB max · datasheet p.2
- Max RF power
- 5 W Power Handling · datasheet p.2
- VSWR, max
- 1.65 max · datasheet p.2
Each value is typed with its unit and measurement condition and cites the datasheet page it was taken from. Nothing is guessed: a field that is absent here has not been published by the manufacturer. machine-extracted ✓ checked by NewSpace Market ✓ manufacturer confirmed by the manufacturer.
As published by the supplier11 lines, in the manufacturer's own wording
- Frequency
- 17-21 GHz
- Peak gain
- >20 dBi
- Array elements
- 64
- Polarization
- LHCP or RHCP (circular)
- Beam type
- Fixed beam
- Profile
- Flat panel, low profile
- VSWR
- <1.65
- Axial Ratio
- <3 dB
- Power
- 5 W
- Connector
- K (rear mounted)
- Dimensions
- 84 x 98 mm
About
The PAN-8498-64-K is a passive flat panel array antenna operating in the K-band downlink frequency range of 17-21 GHz, providing over 20 dBi of peak gain with a compact, low-profile geometry. Its 64-element design produces a high-gain fixed beam in circular polarization (LHCP or RHCP selectable), making it well-suited for fixed satellite service (FSS) ground terminals, VSAT systems, and next-generation LEO satellite user terminals.
The flat panel construction enables easy integration onto vehicle rooftops, building facades, and airframe surfaces without the depth and weight penalties of traditional dish or horn antennas. The antenna supports both LHCP and RHCP to accommodate different satellite services and polarization schemes from LEO, MEO, and GEO constellations.
The PAN-8498-64-K is designed as a passive receive antenna that pairs with Arralis’ Ka-band transceiver modules to form a complete ground terminal front-end. Its combination of high gain, compact form factor, and circular polarization purity makes it applicable to a broad range of satellite communications terminals, from fixed installations to vehicle-mounted systems.
