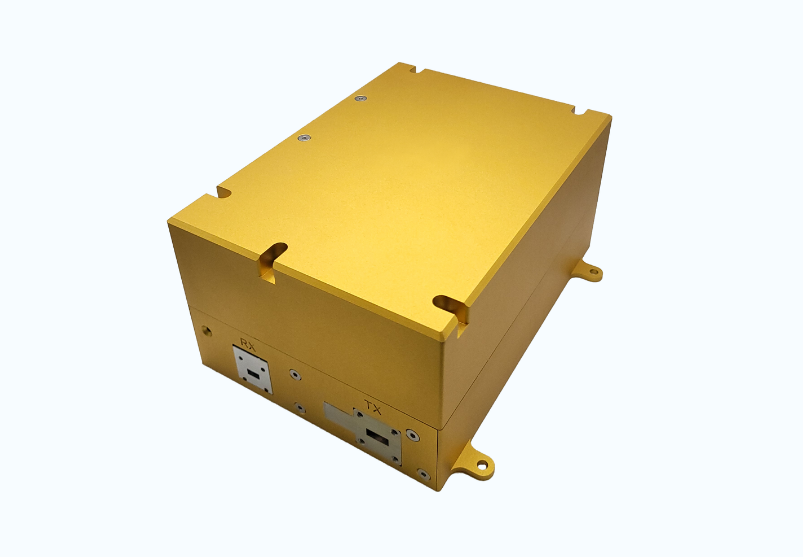

K/Ka-Band Single Channel Transceiver TR1000
ReliaSat
The TR1000 is a complete K/Ka-band RF satellite transceiver module enabling direct interface with a modem or SDR for high data-rate Ka-band payloads. It supports TX at 17-21 GHz and RX at 27-31 GHz with waveguide flanges for high-reliability antenna connections.
Typed specifications47 values
Discloses 6 of 13 fields engineers filter by in this category (category median 5).
- Mass
- 2 200 g datasheet p.1 2 200 g
- Frequency range
- 27 000 MHz min · RX input · datasheet p.1 27 000 MHz min · RX input frequency | 17 000 MHz min · TX output | 17 000 MHz min · TX output frequency | 31 000 MHz max · RX input +11
- Envelope (L×W×H)
- 180 L x 130 W x 87 H datasheet p.1
- TX RF output power
- 10 W CW · datasheet p.1 10 W transmitter power | 10 W CW
- Supply voltage
- 25 V min · datasheet p.2 28 V max | 25–28 V
- Power consumption
- 28 W DC power · datasheet p.1
- Data interface
- I2C 3 wire control interface · datasheet p.4 I2C 3 wire interface
- Operating temperature
- -40 °C min · datasheet p.2 85 °C max | -40–85 °C | -40 °C min | 85 °C max
- Function
- other RF transceiver module (IF 1-5 GHz in/out) to interface with a… · datasheet p.1
- Link use
- payload data downlink high data-rate Ka-band payloads · datasheet p.1
- Frequency band
- Ka RX 27-31 GHz · datasheet p.1 K TX 17-21 GHz | Ka
- TX chains
- 1 single channel, option to extend to dual channel · datasheet p.1
- RF connector
- SMA IF Baseband for RX · datasheet p.4 SMA IF Baseband for TX | SMA IF RX, 50 Ohm | SMA IF TX, 50 Ohm | other WR28 waveguide for RX +1
- RX chains
- 1 single channel, option to extend to dual channel · datasheet p.1
- Connector
- 9 way D-sub (DC, monitoring and control) datasheet p.4
Each value is typed with its unit and measurement condition and cites the datasheet page it was taken from. Nothing is guessed: a field that is absent here has not been published by the manufacturer. machine-extracted ✓ checked by NewSpace Market ✓ manufacturer confirmed by the manufacturer.
As published by the supplier7 lines, in the manufacturer's own wording
- Tx frequency
- 17-21 GHz
- Rx frequency
- 27-31 GHz
- Tx if frequency
- 1-5 GHz
- Rx if frequency
- 1-5 GHz
- Tx output power
- >11 dBm
- RF connectors
- Waveguide flanges
- Architecture
- SDR/modem compatible, expandable channel
About
The TR1000 is a complete RF satellite transceiver system built on Arralis’ space-qualified Leonis GaAs MMIC portfolio, allowing spacecraft designers a fast, reliable, and cost-effective means of implementing high data-rate Ka-band satellite communications payloads. The module enables direct interface with a modem or Software Defined Radio (SDR) and provides TX at 17-21 GHz and RX at 27-31 GHz, with IF ports spanning 1-5 GHz on both paths.
The transmitter incorporates an output monitoring function that enables precise amplitude stability when coupled with external pre-distortion or gain control systems, maximizing achievable data rates. RF outputs and inputs are standard waveguide flanges for high reliability and low-loss antenna connections, while additional channels can be added in both transmit and receive paths to accommodate specific customer requirements.
The TR1000 targets LEO satellite constellation payloads and small satellite missions where a compact, integrated RF front-end is needed. Its architecture is expandable and SDR-compatible, making it suitable for a wide range of high-speed space communications applications including IoT, 5G backhaul, and direct-to-orbit connectivity.
