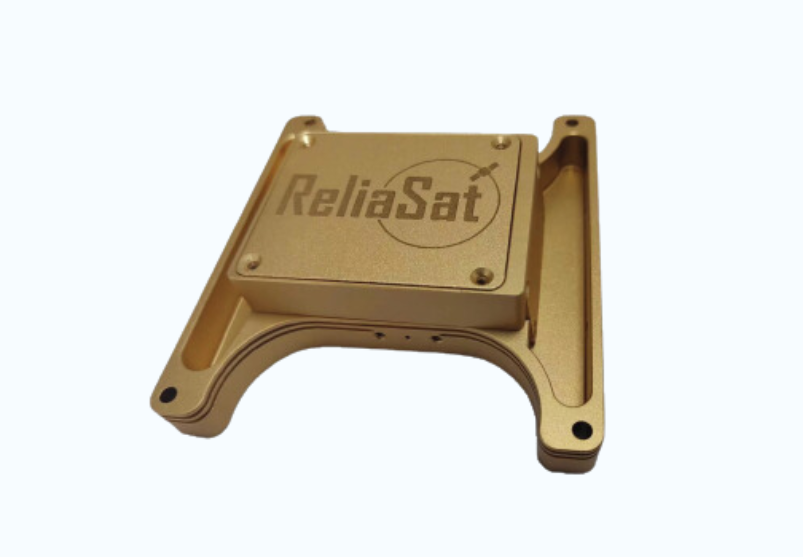

K-Band Solid State Power Amplifier SSPA11201721SS
ReliaSat
The SSPA11201721SS is a K-band GaN solid state power amplifier module delivering over 10 W saturated output power across 17-20.5 GHz from a single 25-28 V supply, with integrated power and temperature detection in a 63x60x25 mm package.
Key figurescomparable across the catalogue
- Power
- 10 W
- Largest dimension
- 63 mm
Normalised to common units so this product can be compared with others in its category. The supplier's own wording is below.
As published by the supplier
- Frequency
- 17-20.5 GHz
- Saturated output power
- >10 W (>40 dBm)
- Small-signal gain
- 21-24 dB
- Supply voltage
- 25-28 VDC (single supply)
- Drain current
- 2.5 A
- Power dissipation
- 44 W
- Vswr
- 1.90:1
- Dimensions
- 63 x 60 x 25 mm
- RF connectors
- 2.92 mm
- Features
- Integrated power detect, temperature detect, enable signal
About
The SSPA11201721SS is a high-power integrated K-band solid state power amplifier module fabricated on space-qualified GaN on SiC technology, operating from 17-20.5 GHz and delivering over 10 W (>40 dBm) of saturated output power across the entire band. The module integrates the full SSPA chain including GaN MMIC die, bias circuits, and RF matching networks in a compact 63x60x25 mm aluminum housing.
Biased from a single 25-28 VDC supply and activated through an enable signal, the module features integrated power detection and temperature monitoring to facilitate system health telemetry and gain control. The VSWR is 1.90:1, and RF ports use 2.92 mm connectors for compatibility with K-band waveguide and coaxial test equipment.
The SSPA11201721SS is designed for demanding SATCOM downlink amplification tasks, Ka-band satellite ground terminals, and point-to-point wireless links requiring high power density and reliable performance. Its compact, fully integrated design significantly reduces system integration effort compared to discrete GaN die implementations, while the on-board monitoring functions enable autonomous system management in satellite payloads and remote ground terminals.
