Programmable Frequency Synthesizer 16-32 GHz FSN11201632QFP
ReliaSat

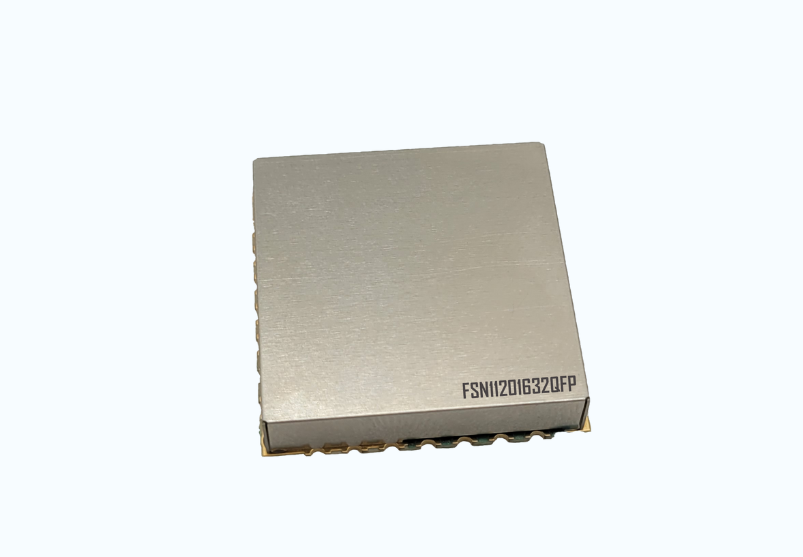

The FSN11201632QFP is a programmable low-phase-noise microwave frequency synthesizer covering 16-32 GHz with -95 dBc/Hz phase noise at 10 kHz offset, in a compact 25.4x25.4x6.35 mm surface-mount package for Ka-band satellite and radar LO applications.
Technical specifications
- Frequency range
- 16-32 GHz (programmable)
- Phase noise
- -95 dBc/Hz at 10 kHz offset
- Spurious
- <-80 dBc
- Package
- 25.4 x 25.4 x 6.35 mm surface mount
- Dimensions
- 25.4 x 25.4 x 6.35 mm
- Settling time
- 3.5 ms
- Reference signal input
- 10 / 100 MHz
- Load impedance
- 50 Ω
- Harmonics
- -30 dBc
- Subharmonics
- -15 dBc
- Interface
- UART
- Operating temperature
- -40 to +85 °C
About
The FSN11201632QFP is a programmable low-phase-noise microwave frequency synthesizer offering tunable output across the 16-32 GHz range, with -95 dBc/Hz phase noise at 10 kHz offset and spurious content below -80 dBc. Its programmable nature provides frequency agility for radar waveform generation, multi-channel satellite transceiver LO synthesis, and frequency-hopping communications systems.
Packaged in a compact 25.4×25.4×6.35 mm surface-mount module, it is designed for direct board-level integration into Ka-band satellite transceivers, ground terminals, and payload electronics where a clean, tunable LO source is required. The 16-32 GHz coverage encompasses both Ka-band downlink and uplink LO frequency requirements, enabling a single synthesizer module to serve both bands with appropriate frequency planning.
The FSN11201632QFP is well-suited to serve as the LO generation block in Arralis Leonis-based satellite transceiver systems, Q/V-band radar front-ends, and 5G millimeter-wave base station LO chains. Its combination of programmability, low phase noise, and compact form factor addresses the need for versatile, high-performance LO generation in next-generation satellite communications systems.
Documentation
Need the full ICD, test reports or a specific revision? Ask the supplier directly.
