S-Band Flat Panel Antenna PAN-185185-4-S
ReliaSat

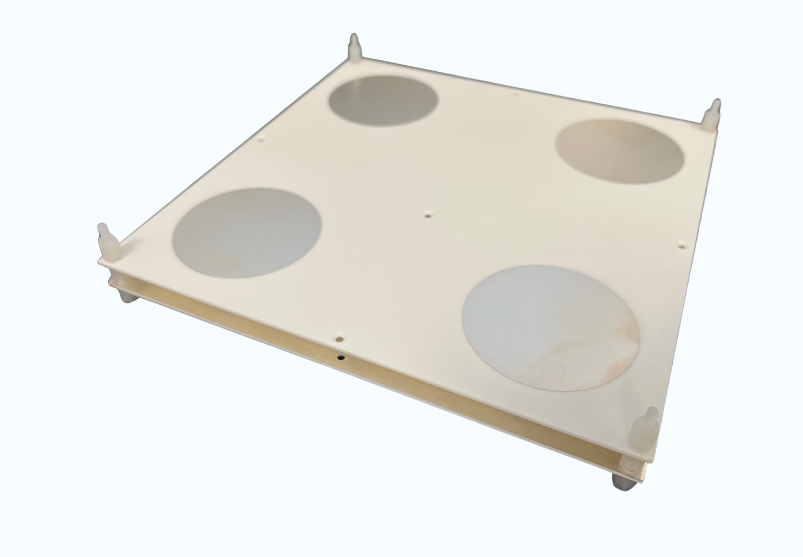

The PAN-185185-4-S is a compact 4-element S-band passive flat panel antenna covering 1.95-2.25 GHz with over 10 dBi gain and selectable LHCP or RHCP circular polarization for satellite TT&C, telemetry, and mobile communications applications.
Typed specifications18 values
Discloses 6 of 10 fields engineers filter by in this category (category median 2).
- Frequency band
- S datasheet p.1
- Peak gain
- 10 dBi min · Gain >10 dB · datasheet p.2
- Frequency range
- 1 950 MHz min · datasheet p.2 2 250 MHz max | 1 950–2 250 MHz
- Beamwidth (-3 dB)
- 35–40 ° datasheet p.2 35–40 ° HPBW 35-40
- Envelope (L×W×H)
- 190 x 190 x 12 mm datasheet p.2
- Polarization
- RHCP datasheet p.2 RHCP RHCP OR LHCP | LHCP | LHCP RHCP OR LHCP
- Antenna type
- Flat Panel Array Antenna datasheet p.1
- RF connector
- SMA datasheet p.2
- Connector
- SMA datasheet p.2
- Satellite class
- CubeSat Fits cubesats · datasheet p.1
- Fits satellite size
- custom Fits cubesats · datasheet p.1
- Axial ratio
- 3 dB max · datasheet p.2
Each value is typed with its unit and measurement condition and cites the datasheet page it was taken from. Nothing is guessed: a field that is absent here has not been published by the manufacturer. machine-extracted ✓ checked by NewSpace Market ✓ manufacturer confirmed by the manufacturer.
As published by the supplier7 lines, in the manufacturer's own wording
- Frequency
- 1.95-2.25 GHz
- Gain
- >10 dBi
- Array elements
- 4
- Polarization
- LHCP or RHCP (circular)
- PCB layers
- 3
- Profile
- Flat panel, low profile
- Beam type
- Fixed beam
About
The PAN-185185-4-S is a passive flat panel array antenna operating in the S-band from 1.95 to 2.25 GHz, delivering more than 10 dBi of gain with circular polarization (LHCP or RHCP selectable). Its compact 3-layer PCB construction and flat profile make it suitable for integration on small satellites, UAVs, and compact satellite ground terminals where S-band TT&C, telemetry, or communications links are required.
The S-band frequency range covers multiple satellite services including deep space tracking, Earth observation satellite TT&C, mobile satellite communications (MSS), and UAV command and control links. The circular polarization design provides polarization insensitivity to satellite attitude variations, critical for CubeSat and small satellite TT&C links where attitude control may be limited.
The PAN-185185-4-S is designed as part of the Arralis/ReliaSat flat panel antenna product family and can be integrated with compatible S-band RF electronics for complete S-band satellite terminal solutions. Its combination of gain, compact form, and circular polarization makes it applicable to both ground-based terminals and spacecraft-mounted TT&C antennas for small satellite missions.
