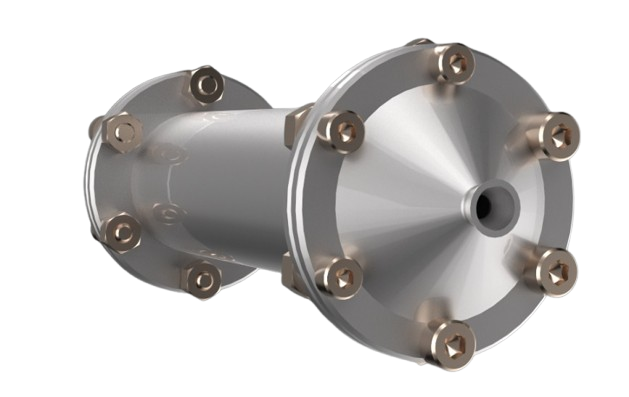

Blue Orbit Water Resistojet
Blue Orbit Space Systems
Water-propellant resistojet for LEO in two configurations: 270 g at 3.3-4.4 mN and 250 g at 27-30 mN, both around 103-108 s Isp.
Typed specifications26 values
Discloses 7 of 10 fields engineers filter by in this category (category median 3).
- Propulsion family
- electric datasheet p.0
- Mass
- 270 g variant 1 (270 g) · datasheet p.1 250 g variant 2 (250 g) | 250 g
- Thrust
- 3.3 mN min · datasheet p.1 4.4 mN max
- Envelope (L×W×H)
- 55 x 33 x 122 mm datasheet p.0 55 x 33 x 122 mm variant 1 (270 g) | 33 x 33 x 100 mm variant 2 (250 g)
- Specific impulse
- 103 s min · datasheet p.1 108 s max
- Propellant
- Water datasheet p.0
- Power consumption
- 80 W product page 10 W min | 18 W max
- Thruster technology
- warm gas or resistojet datasheet p.1
- Propellant mass flow
- 3.2 mg/s min · datasheet p.1 4 400 mg/s max | 3.2–4.4 mg/s variant 1 (270 g), estimate | 26–30 mg/s variant 2 (250 g), estimate
- Propellant mass (full load)
- 270 g datasheet p.0
- Power at thrust
- 80 W variant 2 (250 g), estimate · datasheet p.1 10–18 W | 10–18 W variant 1 (270 g), estimate
- Delta-v
- 95 m/s variant 1 (270 g), estimate; reference mass not stated · datasheet p.1 95 m/s variant 2 (250 g), estimate; reference mass not stated
Each value is typed with its unit and measurement condition and cites the datasheet page it was taken from. Nothing is guessed: a field that is absent here has not been published by the manufacturer. machine-extracted ✓ checked by NewSpace Market ✓ manufacturer confirmed by the manufacturer.
As published by the supplier14 lines, in the manufacturer's own wording
- Propellant
- Water
- Configuration 1 - mass
- 270 g
- Configuration 1 - dimensions
- 55 x 33 x 122 mm
- Configuration 1 - power
- 10 - 18 W (estimate)
- Configuration 1 - thrust
- 3.3 - 4.4 mN (estimate)
- Configuration 1 - mass flow
- 3.2 - 4.4 mg/s (estimate)
- Configuration 2 - mass
- 250 g
- Configuration 2 - dimensions
- 33 x 33 x 100 mm
- Configuration 2 - power
- 80 W (estimate)
- Configuration 2 - thrust
- 27 - 30 mN (estimate)
- Configuration 2 - mass flow
- 26 - 30 mg/s (estimate)
- Specific impulse
- 103 - 108 s (estimate)
- Delta-v
- 95 m/s (estimate)
- Altitude
- 160 - 1000 km (LEO)
About
Blue Orbit Space Systems’ resistojets run on water propellant and provide sustainable propellant use and precision thrust control for Low Earth Orbit operations.
Two configurations are offered. The first is 270 g at 55 x 33 x 122 mm, drawing 10-18 W for 3.3-4.4 mN of thrust at a mass flow of 3.2-4.4 mg/s. The second is 250 g at 33 x 33 x 100 mm, drawing 80 W for 27-30 mN of thrust at a mass flow of 26-30 mg/s. Both deliver 103-108 seconds of specific impulse and around 95 m/s of delta-v, over an altitude band of 160-1000 km (LEO).
The vendor marks these performance values as estimates.
