CW/PW LDMOS UHF SSPA 1.25kW Indoor
TTI Norte
An indoor 1.25kW CW/PW LDMOS UHF Solid State Power Amplifier designed for continuous and pulsed wave operation.
Typed specifications6 values
Discloses 3 of 8 fields engineers filter by in this category (category median 2).
- Mass
- 11 000 g product page
- Frequency range
- 3 000 MHz product page
- Envelope (L×W×H)
- 483 x 88 x 322 mm product page
- TX RF output power
- 349.95 W product page
- Power consumption
- 1 200 W max · product page
- Operating temperature
- 10 °C product page
Each value is typed with its unit and measurement condition and cites the datasheet page it was taken from. Nothing is guessed: a field that is absent here has not been published by the manufacturer. machine-extracted ✓ checked by NewSpace Market ✓ manufacturer confirmed by the manufacturer.
As published by the supplier25 lines, in the manufacturer's own wording
- Supply voltage
- AC 100-264 VAC 50/60 Hz
- Power consumption @ psat
- <1200 W
- Dimensions (W x H x D)
- 483 x 88 x 322 mm
- Mass
- 11 kg
- RF input
- N-type (f), 50 Ω
- RF output
- N-type (f), 50 Ω
- RF sample
- SMA-type (f), 50 Ω
- AC line
- IEC C14 w/ filter, fused
- Trigger
- BNC-type (f), 50 Ω
- M&c
- Dsub-25 (f)
- Operating temperature
- 10 °C to 40 °C
- Storage temperature
- -40 ºC to +85 ºC
- Humidity
- 90 % non-condensing
- Input frequency range
- 3 GHz ±5 MHz
- Operating mode
- Pulsed wave
- Output power (p1 db (typical))
- 55.44 dBm
- Gain
- > 57 dB
- Gain flatness
- < 1 dB
- Input level (nominal)
- -2 dBm to 4 dBm
- Attenuation adjustment range
- 6 dB
- Input vswr
- <1.4:1
- Output vswr
- Full reflection all phases
- Pulse width
- 100 ms max.
- Duty cycle
- 10 % max.
- Rise/fall time
- <50 ns
About

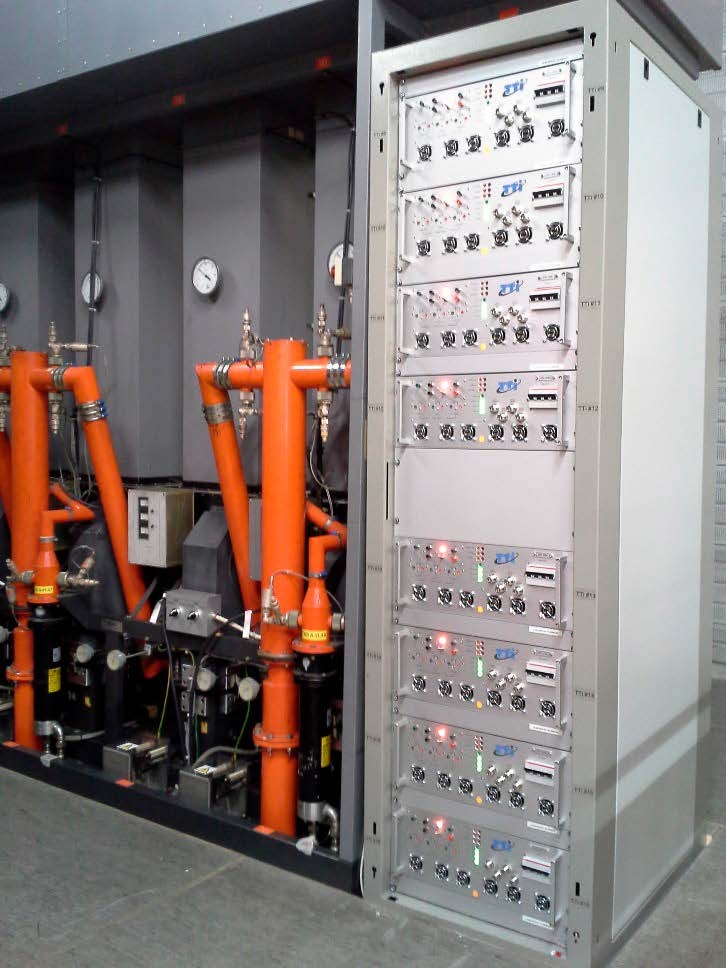

This is an indoor CW/PW LDMOS UHF Solid State Power Amplifier (SSPA) capable of delivering 1.25kW output power. It operates in both continuous wave and pulsed wave modes. The unit features a standard 19” rack mounting and is liquid cooled. It includes internal self-protection mechanisms for temperature, fan failure, overduty, and power supply failure. Remote control is available via discrete analog or digital signals, and it monitors output power and various alarms. The SSPA has an input frequency range of 3 GHz ±5 MHz and provides a gain of > 57 dB.
Documentation
No public datasheet yet — request the datasheet / ICD from the supplier.
