About TTI Norte

Celestia TTI (formerly TTI Norte) is a Spanish satellite ground systems company founded in 1996 in Santander, Cantabria, and now operating as a subsidiary of the Celestia Technologies Group, an international satellite ground segment conglomerate. With more than 25 years of experience and around 100 staff, the company holds ISO 9001:2015 and AS/EN 9100:2018 certifications.

The company designs and manufactures RF electronics and antenna systems for satellite ground stations and spaceborne platforms, including Solid-State Power Amplifiers (SSPAs), Block Upconverters (BUCs), Low-Noise Amplifiers (LNAs) and LNBs, cryogenic amplifiers for radio astronomy, phased array and flat-panel antennas, passive RF components (feeders, orthomode transducers, polarisers) and frequency converters.

Celestia TTI's products have been supplied to major European satellite programs including SpainSat NG I (UHF amplifiers, launched 2025), the ESA ESTRACK deep space antenna network (X/K-band cryogenic receiver upgrade, five-year contract from 2020), and the ESA Galileo navigation satellite program (phased array uplink station antenna, 2021). The company also supplies electronically-steered, no-moving-parts multi-beam antennas (MEGA) for MEOLUT Galileo Search & Rescue ground stations, and equipment for EU Space Surveillance and Tracking (SST) debris monitoring installations.

The facility in Santander operates a 4,000 square metre manufacturing and test centre with ISO 7 cleanroom capability, serving broadcast, aerospace, radio astronomy/deep space, particle accelerator, and government/defence markets.

Milestones

1996 TTI Norte founded in Santander, Cantabria, Spain
2020 Awarded ESA ESTRACK five-year contract to upgrade X/K-band cryogenic receivers across the deep-space antenna network
2021 Delivered phased array uplink station antenna for the ESA Galileo navigation programme
2025 Rebranded as Celestia TTI within the Celestia Technologies Group; UHF amplifiers flown on SpainSat NG I

Company Info

Headquarters C/ Albert Einstein 14, 39011 Santander, Cantabria, Spain, Spain

Offices C/ Albert Einstein 14, 39011 Santander, Cantabria — Santander, Spain

Founded 1996 (30 years)

Specializations

manufacturer

Website celestia-tti.com ↗

LinkedIn linkedin.com/company/celestia-tti ↗

Email sales@ttinorte.es

Photos 1

Products

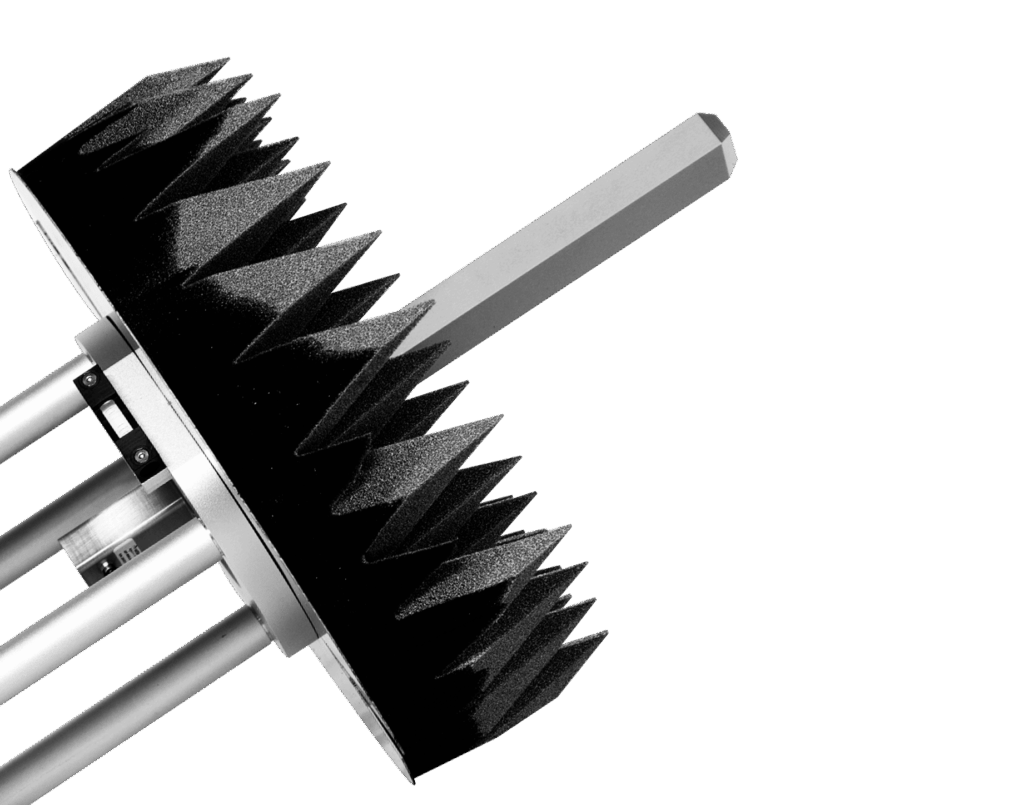

A range of antenna feeders including horns, probes, and dipole arrays, designed for low back radiation and low cross-polarization, covering frequencies from UHF to millimeter bands.

1 21

Polarization	Linear single
Description	Linear-polarized horn antennas
Frequency	0.55 – 170 GHz
Polarization (2)	Linear dual
Description (2)	Dual-linear polarized horn antennas
Frequency (2)	0.55 – 75 GHz
Polarization (3)	Circular dual
Description (3)	Dual-circular polarized corrugated cylindrical horn antennas
Frequency (3)	10 – 60 GHz
Polarization (4)	Linear single
Description (4)	Dual-ridged horn antenna
Frequency (4)	2 – 18 GHz
Polarization (5)	Linear single
Description (5)	Standard gain horn antennas
Frequency (5)	0.5 – 60 GHz
Polarization (6)	Linear single
Description (6)	Open-ended waveguide probes
Frequency (6)	0.49 – 110 GHz
Polarization (7)	Linear single
Description (7)	High crosspolar log periodic dipole array antennas
Frequency (7)	0.5 – 2 GHz

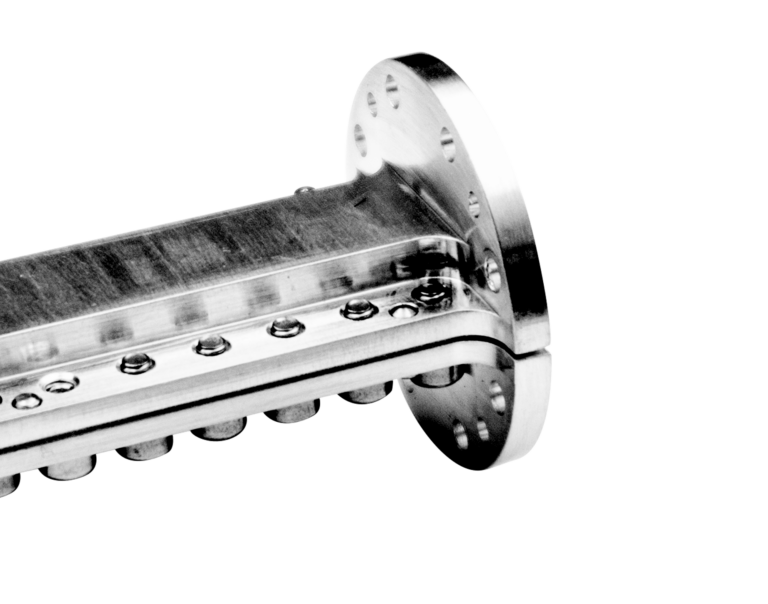

High-performance waveguide polarisers for transmission and reception in Ku-band ground station antenna feed systems, with custom bands available.

1 2

Transmission polariser	Ku-band
Reception polariser	Ku-band

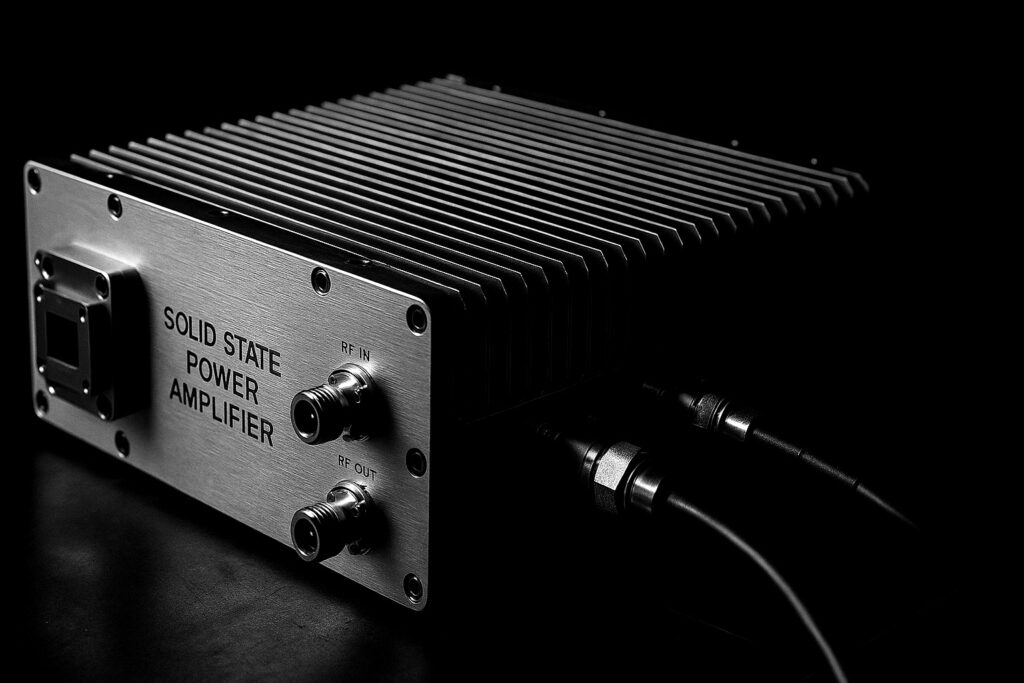

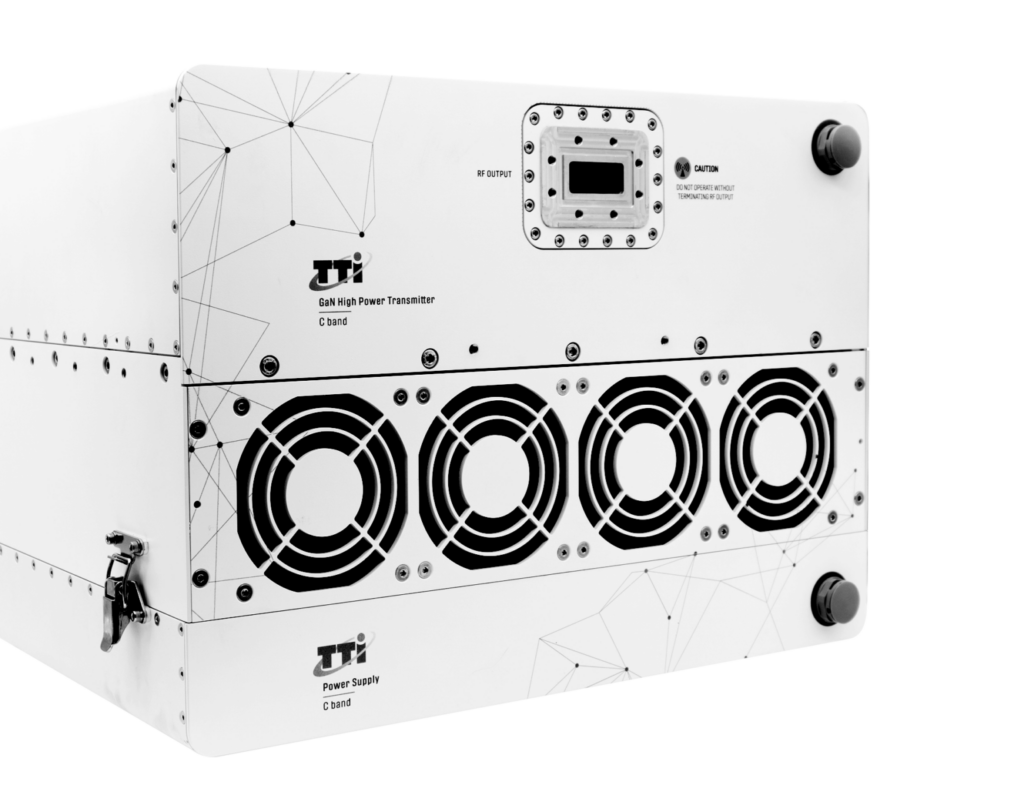

A new generation of GaN-based Solid State Power Amplifiers (SSPAs) and Block Upconverters (BUCs) for C-band satellite communication, offering outstanding performance for outdoor or indoor civil applications.

1 32

Type	C band outdoor SSPA/BUC
Technology	GaN
Psat	800 W
Frequency	5.850–6.425 GHz
Type (2)	Phase combined system
Technology (2)	GaN
Psat (2)	4.8 kW
Frequency (2)	5.850–6.425 GHz
Type (3)	Phase combined system
Technology (3)	GaN
Psat (3)	2.7 kW
Frequency (3)	5.850–6.425 GHz
Type (4)	Phase combined system
Technology (4)	GaN
Psat (4)	1.5 kW
Frequency (4)	5.850–6.425 GHz
Type (5)	C band indoor SSPA/BUC
Technology (5)	GaN
Psat (5)	800 W
Frequency (5)	5.850–6.425 GHz
Type (6)	Phase combined system
Technology (6)	GaN
Psat (6)	4.8 kW
Frequency (6)	5.850–6.425 GHz
Type (7)	Phase combined system
Technology (7)	GaN
Psat (7)	2.7 kW
Frequency (7)	5.850–6.425 GHz
Type (8)	Phase combined system
Technology (8)	GaN
Psat (8)	1.5 kW
Frequency (8)	5.850–6.425 GHz

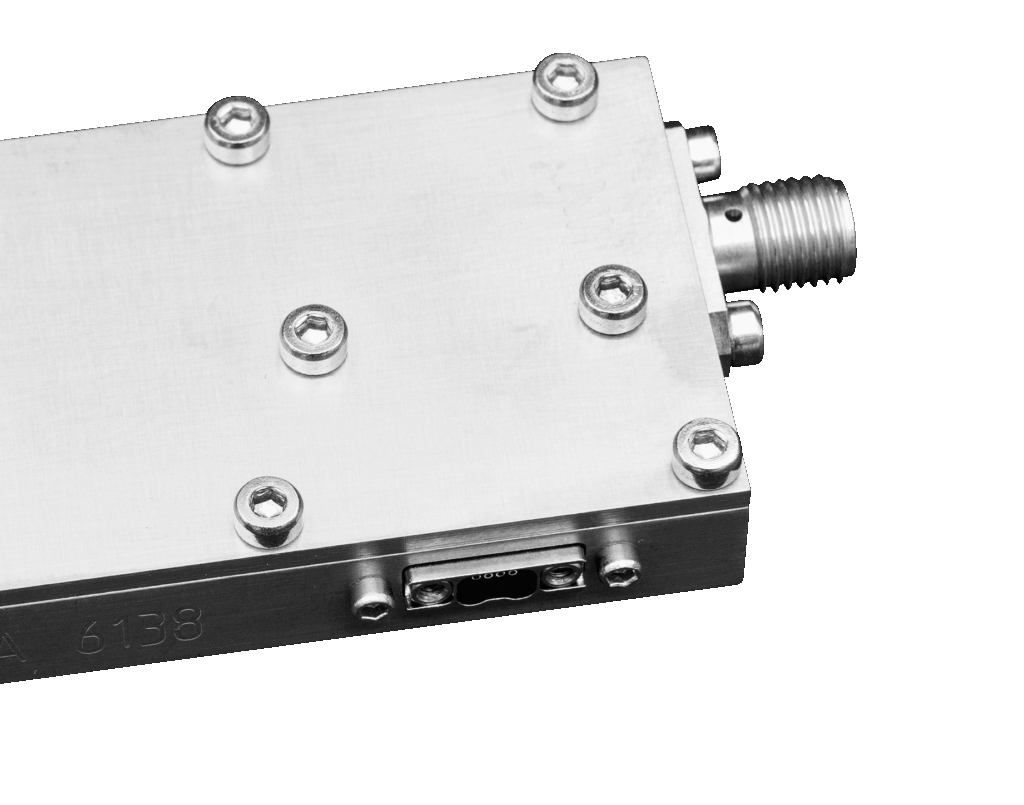

A portfolio of cryogenic Low Noise Amplifiers (LNAs) offering outstanding performance for radioastronomy and quantum computing applications.

2 48

Type	W band Cryo LNA
Frequency	72–116 GHz
Noise temp.	31 K (avg)
Type (2)	Q band Cryo LNA
Frequency (2)	31–50 GHz
Noise temp. (2)	14 K (avg)
Type (3)	K-Ka band Cryo LNA
Frequency (3)	18–32.4 GHz
Noise temp. (3)	8 K (avg)
Type (4)	C-Ka band Cryo LNA
Frequency (4)	4–20 GHz
Noise temp. (4)	4.7 K (avg)
Type (5)	X band Cryo LNA
Frequency (5)	8.4–8.5 GHz
Noise temp. (5)	<3 K
Type (6)	X band Cryo LNA
Frequency (6)	8–9 GHz
Noise temp. (6)	<4 K
Type (7)	C-X band Cryo LNA
Frequency (7)	4–12 GHz
Noise temp. (7)	5.1 K (avg)
Type (8)	C-X band Cryo LNA
Frequency (8)	4–12 GHz
Noise temp. (8)	5 K (avg)
Type (9)	C-X band Cryo LNA
Frequency (9)	2–18 GHz
Noise temp. (9)	4.8 K (avg)
Type (10)	C band Cryo LNA
Frequency (10)	5.7–6.3 GHz
Noise temp. (10)	<2.5 K
Type (11)	C band Cryo LNA
Frequency (11)	4–8 GHz
Noise temp. (11)	<3.5 K
Type (12)	C band Cryo LNA (low power)
Frequency (12)	4–8 GHz
Noise temp. (12)	<4 K
Type (13)	S band Cryo LNA
Frequency (13)	2.3–4.8 GHz
Noise temp. (13)	<3.5 K
Type (14)	S band Cryo LNA
Frequency (14)	2–4.5 GHz
Noise temp. (14)	<3 K
Type (15)	UHF–S band Cryo LNA
Frequency (15)	0.3–3.3 GHz
Noise temp. (15)	5 K (avg)
Type (16)	UHF–S band Cryo LNA
Frequency (16)	0.1–1.1 GHz
Noise temp. (16)	4.5 K (avg)

An indoor 500W CW LDMOS UHF Solid State Power Amplifier, liquid cooled and designed for continuous and pulsed wave operation.

Supply voltage	400 V AC ±10 %, 50/60 Hz, 3P + N + E
Wall plug efficiency @ psat	>50%
Power consumption @ psat	<2500 W
Dimensions (W x H x D)	483 x 176 x 557 mm
Mass	25 kg
RF input	N-type (f), 50 Ω
RF output	7/16”-type (f), 50 Ω
RF samples	N-type (f), 50 Ω
AC line	IEC 309 (m), 3P + N + E
M&c	2 x circular industrial (f)
Coolant fluid	DI water
Coolant inlet temperature	15 °C to 30 °C
Coolant flow	>4 l/min
Coolant inlet pressure	<5 bar
Coolant pressure drop	<1 bar
Operating temperature	10 °C to 45 °C
Storage temperature	-40 ºC to +85 ºC
Humidity	90 % non-condensing
Input frequency range	200 MHz ± 5 MHz
Operating mode	Continuous / Pulsed wave
Output power (p1 db (typical))	61 dBm peak, 58.45 dBm average
Gain	71 dB
Gain flatness	<1 dB
Non-linear phase distortion	<5°
Input level (nominal)	-10 dBm
Output vswr	Full reflection all phases
Pulse characteristics duty cycle	any, respecting maximum average output power
Repetition rate	from CW to 1 MHz
Rise/fall time	<100 ns

An indoor 1.25kW CW/PW LDMOS UHF Solid State Power Amplifier designed for continuous and pulsed wave operation.

1 25

Supply voltage	AC 100-264 VAC 50/60 Hz
Power consumption @ psat	<1200 W
Dimensions (W x H x D)	483 x 88 x 322 mm
Mass	11 kg
RF input	N-type (f), 50 Ω
RF output	N-type (f), 50 Ω
RF sample	SMA-type (f), 50 Ω
AC line	IEC C14 w/ filter, fused
Trigger	BNC-type (f), 50 Ω
M&c	Dsub-25 (f)
Operating temperature	10 °C to 40 °C
Storage temperature	-40 ºC to +85 ºC
Humidity	90 % non-condensing
Input frequency range	3 GHz ±5 MHz
Operating mode	Pulsed wave
Output power (p1 db (typical))	55.44 dBm
Gain	> 57 dB
Gain flatness	< 1 dB
Input level (nominal)	-2 dBm to 4 dBm
Attenuation adjustment range	6 dB
Input vswr	<1.4:1
Output vswr	Full reflection all phases
Pulse width	100 ms max.
Duty cycle	10 % max.
Rise/fall time	<50 ns

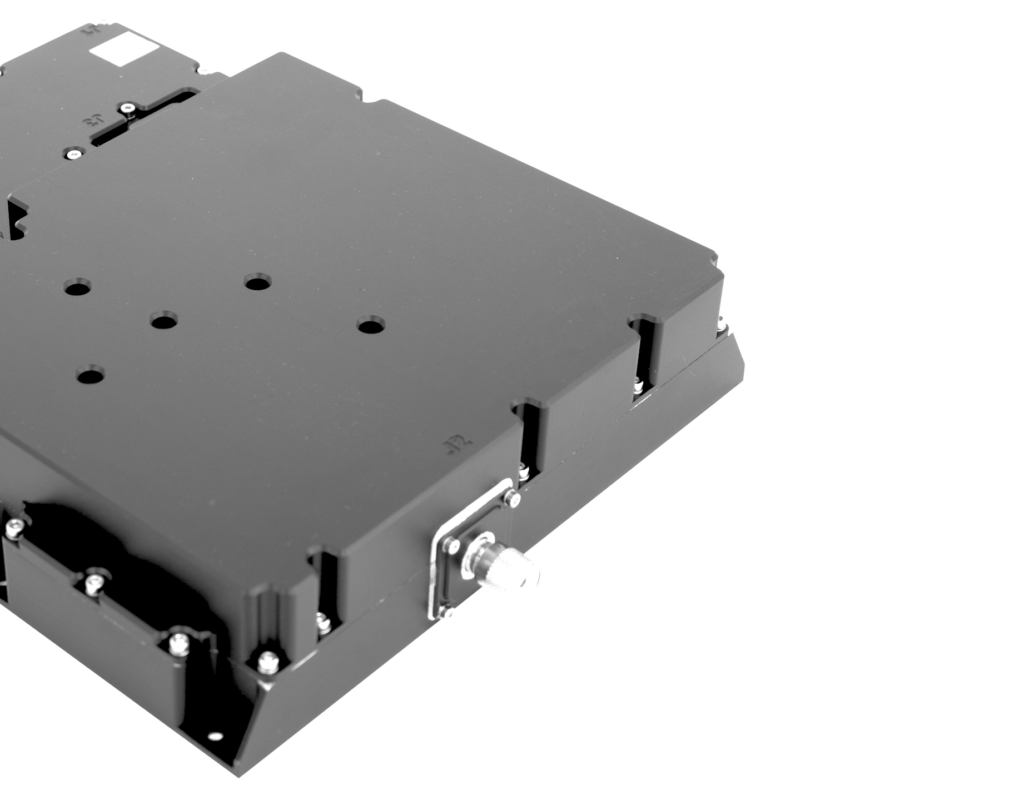

An outdoor 40W Dual GaN Ka-band SSPA/BUC for commercial, government, and defense SATCOM applications, offering high efficiency and reliability.

1 21

Output power (psat (typical))	46 dBm @ 29-30 GHz / 45 dBm @ 30-31 GHz
Linear output power (PLINEAR*)	43 dBm @ 29-30 GHz / 42 dBm @ 30-31 GHz
Supply voltage	90-264 VAC, 50-60 Hz
Power consumption @ psat	350 W
Dimensions (L x W x H)	340 x 210 x 170 mm
Mass	<15 kg
Operating temperature	-30 ºC to +55 ºC
Storage temperature	-40 ºC to +85 ºC
Input frequency range	1-2 GHz
Operating frequency range	29-30 GHz / 30-31 GHz (electronically switchable)
Gain	>70 dB
Gain flatness	4 dB p-p max over full band, 1 dB p-p max over any 40 MHz
Gain stability over 24 hours	±0.25 dB @constant temperature
Gain variation over temperature	±1.5 dB over full operating range
Attenuation adjustment range	20 dB in 0.1 dB step
Input vswr	≤1.5:1
Output vswr	≤1.3:1
Phase noise (BUC)	-63 dBc/Hz at 100 Hz, -73 dBc/Hz at 1 kHz, -83 dBc/Hz at 10 kHz, -93 dBc/Hz at 100 kHz
External ref. freq. & phase noise (BUC)	10 MHz, 0 dBm ±5 dB (TX IF port multiplexed), -135 dBc/Hz at 100 Hz, -155 dBc/Hz at 1 kHz, -160 dBc/Hz at 10 kHz
Spectral regrowth	-30 dBc @ PLINEAR *
Spurious	-60 dBc max @ PLINEAR

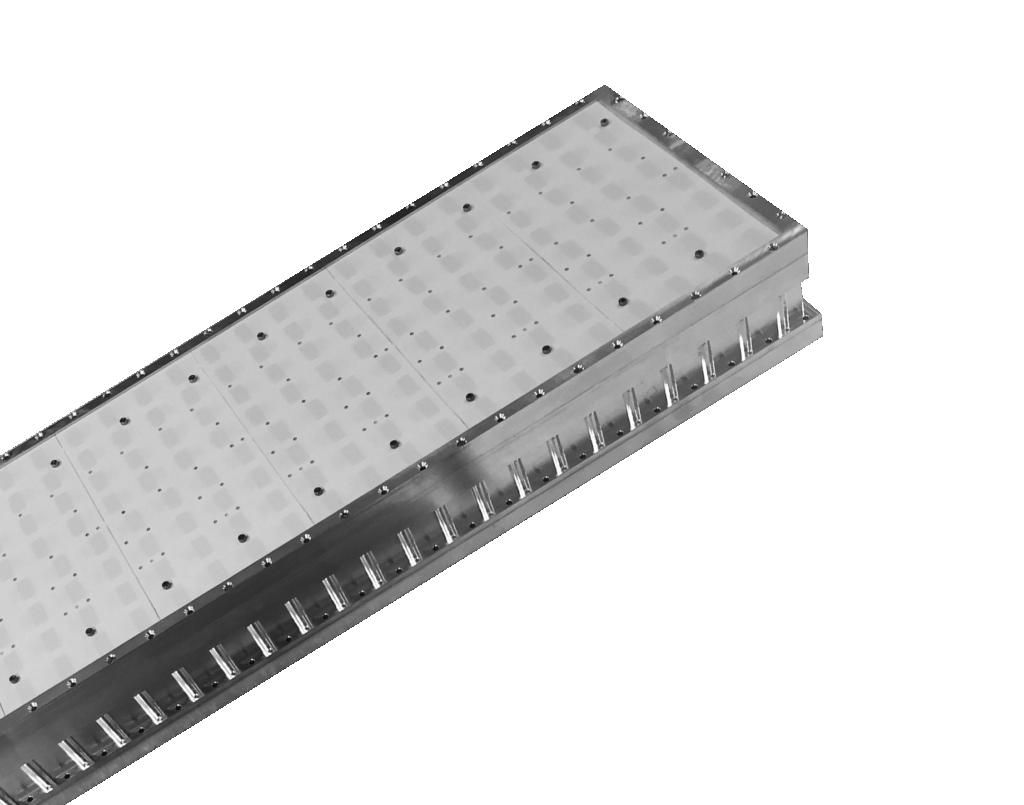

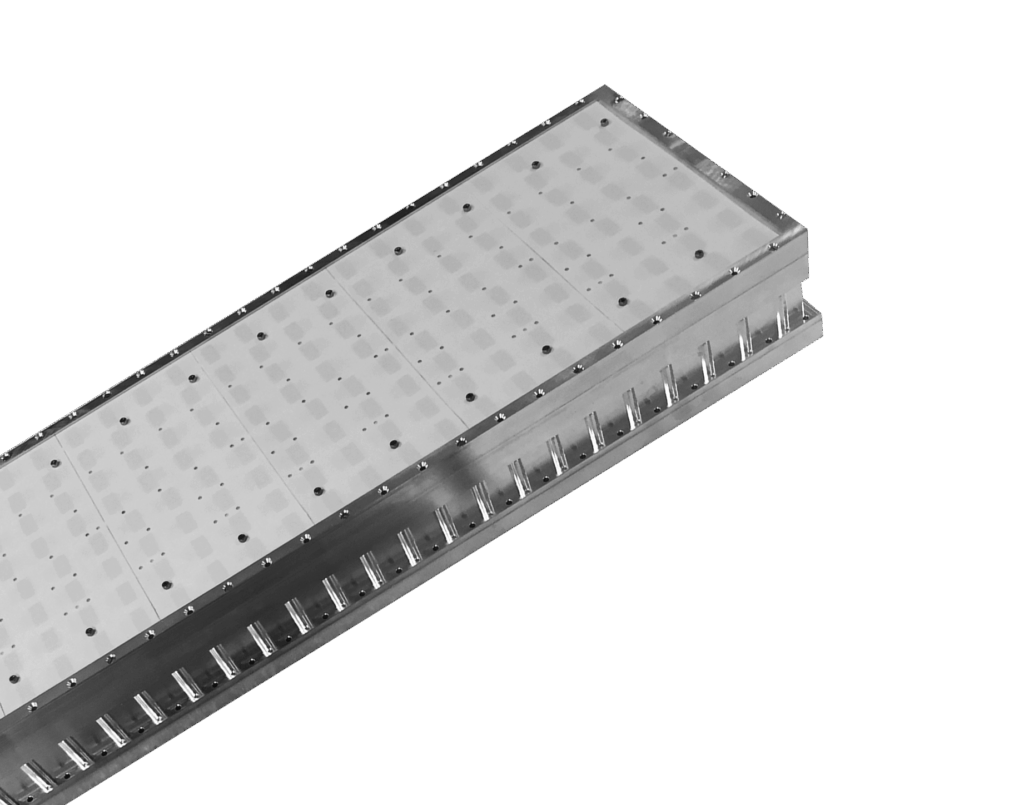

Low-profile flat panel antenna apertures for SATCOM ground and airborne terminals, offering lightweight, high-efficiency solutions across X, Ku, and Ka bands.

1 4

Frequency bands	X, Ku, Ka
Applications	Manpacks, Satcom on the Move, Satcom on the Pause, Airborne Satcom on the Move
Market segments	Commercial and military
Additional supplied elements	Transceivers, BUCs, LNBs, polarisers

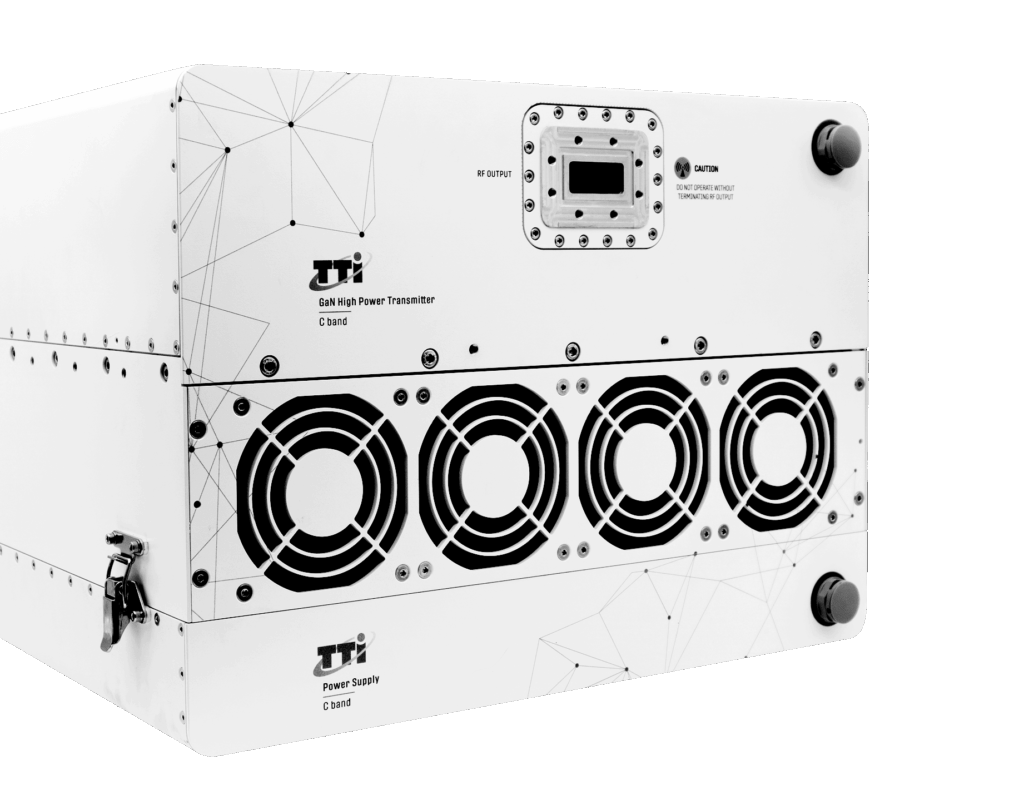

An outdoor 1:1 redundancy system for C-band satellite communication, featuring 800W GaN SSPA/BUC transmitters.

1 6

Configuration	1:1 Redundancy System
Transmitter type	GaN C SSPA/BUC
Power output	800 W
Installation environment	Outdoor
Controller sub-rack height	2U
Controller sub-rack size	19”

A 1:1 redundancy system for C-band satellite communication, featuring two 800W GaN SSPA/BUC units for enhanced reliability and continuous operation.

1 7

System configuration	1:1 Redundancy
Gan high power transmitter	GaN SSPA/BUC C 800 W (Qty 2)
Wg switch	(system output port at WG switch)
Redundancy system controller	Standard controller (indoor)
Sub rack	2U-high 19” sub rack (indoor)
Cabling	AC cables (1.5 m long) (qty 2), System cabling (AC cables (SSPAs/BUCs) (qty 2), M&C cables (SSPAs/BUCs) (qty 2), M&C cable (switch) (qty 1))
Dimensions	19” Rack 42 U (H) x 1 m (D)

An outdoor 2:1 redundancy system for C-band satellite communication, featuring 800W GaN SSPA/BUC transmitters.

1 6

Configuration	2:1 Redundancy System
Transmitter type	GaN C SSPA/BUC
Power output	800 W
Installation environment	Outdoor
Controller sub-rack height	2U
Controller sub-rack size	19”

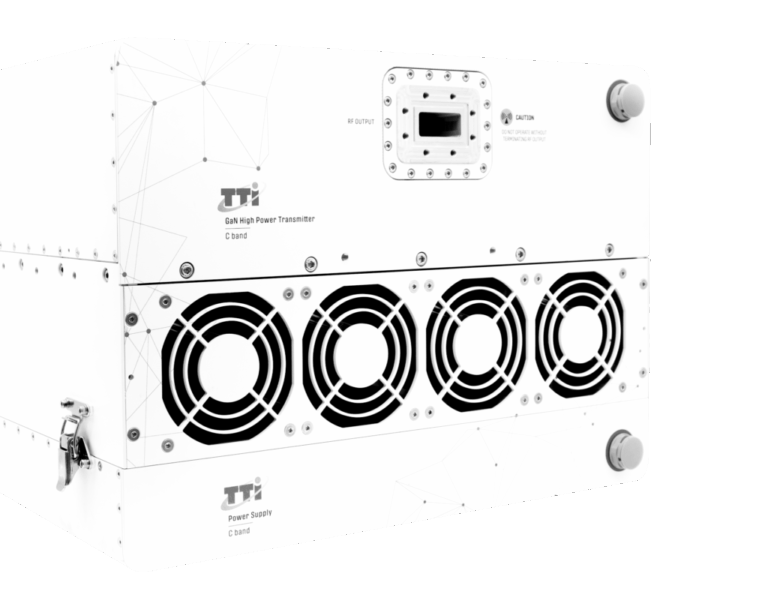

A 2:1 redundancy system for C-band satellite communication, featuring three 800W GaN SSPA/BUC units for enhanced reliability and continuous operation.

1 7

System configuration	2:1 Redundancy
Gan high power transmitter	GaN SSPA/BUC C 800 W (Qty 3)
Dual wg switches	(Qty 2)
Redundancy system controller	Standard controller (indoor)
Sub rack	2U-high 19” sub rack (indoor)
Cabling	AC cables (1.5 m long) (qty 2), RF cabling (Coaxial SMA-SMA/SMA-N cables from switches to SSPAs/BUCs (qty 3), Coaxial SMA-SMA cable from switch 1 to switch 2 (qty 1)), System cabling (AC cables (SSPAs/BUCs) (qty 3), M&C cables (SSPAs/BUCs) (qty 3), M&C cables (switches) (qty 2))
Dimensions	19” Rack 42 U (H) x 1 m (D)

An 800W GaN C-band Solid State Power Amplifier/Block Upconverter (SSPA/BUC) designed for indoor use, offering high power output and various control modes.

1 25

Input frequency range (BUC)	950-1525 MHz
Operating frequency range	5.85 - 6.425 GHz
Lo	4.9 GHz
Output power (psat (typical))	59 dBm
Linear output power (PLINEAR*)	58 dBm
Gain	>70 dB
Gain flatness	3 dB p-p max over full band; 1 dB p-p max over any 40 MHz
Gain variation over temperature	± 1.5 dB over full operating range
Attenuation adjustment range	20 dB 0.1 dB step
Input vswr	≤1.5:1
Output vswr	≤1.3:1
Phase noise (buc) @ 100hz	-75 dBc/Hz
Phase noise (buc) @ 1 khz	-90 dBc/Hz
Phase noise (buc) @ 10hz	-100 dBc/Hz
Phase noise (buc) @ 100 khz	-100 dBc/Hz
External ref. freq. & phase noise (BUC)	10 MHz, 0 dBm ±5 dB (TX IF port multiplexed), -135 dBc/Hz at 100 Hz, -155 dBc/Hz at 1 kHz, -160 dBc/Hz at 10 kHz
Spectral regrowth	-25 dBc @ PLINEAR*
Spurious	-60 dBc max @ PLINEAR*
Supply voltage	90-264 VAC, 50-60 Hz
Power consumption @ psat	<3000 W
Dimensions (W x H x D)	483 x 266 x 518 mm - RF unit 6RU panel height
Power supply	1RU panel height
Mass	35 Kg
Operating temperature	0 ºC to +50 ºC
Storage temperature	-40 ºC to +85 ºC

An 800W outdoor GaN C-band SSPA/BUC for satellite communication, offering high power output and robust environmental performance.

1 38

Transmitter type	GaN C SSPA/BUC
Power output	800 W
Installation environment	Outdoor
Supply voltage	90-264 VAC, 50-60 Hz
Power consumption @ psat	3000 W
Dimensions (L x W x H)	442 x 424 x 302 mm
Mass	45 Kg
RF input (C-Band + Ref Signal)	N (f)
RF output	CPR-137-G Grooved
RF sample	SMA
AC line	3-pin MIL circular (RT00144PNH)
M&c	19-pin MIL circular (UT0016-19SH)
Operating temperature	-30 ºC to +55 ºC
Storage temperature	-40 ºC to +85 ºC
Humidity	100 % condensing
Remote control	RS-485/USB
Buc input frequency range	950-1525 MHz
Operating frequency range	5.85 - 6.425 GHz
Lo frequency	4.9 GHz
Output power (psat (typical))	59 dBm
Linear output power (PLINEAR)	58 dBm
Gain	>70 dB
Gain flatness	3 dB p-p max
Gain flatness over 40 mhz	1 dB p-p max
Gain variation over temperature	± 1.5 dB over full operating range
Attenuation adjustment range	25 dB in 0.1 dB step
Input vswr	≤1.5:1
Output vswr	≤1.3:1
Phase noise (buc) @ 100 hz	-75 dBc/Hz
Phase noise (buc) @ 1 khz	-90 dBc/Hz
Phase noise (buc) @ 10 khz	-100 dBc/Hz
Phase noise (buc) @ 100 khz	-100 dBc/Hz
External ref. freq. & phase noise (BUC)	10 MHz, 0 dBm ±5 dB (TX IF port multiplexed)
External ref. phase noise @ 100 hz	-135 dBc/Hz
External ref. phase noise @ 1 khz	-155 dBc/Hz
External ref. phase noise @ 10 khz	-160 dBc/Hz
Spectral regrowth @ plinear	-25 dBc
Spurious @ plinear	-60 dBc max

An indoor 800W GaN C-band SSPA/BUC, offering high power output, automatic control modes, and various monitoring and control interfaces.

1 16

Output power (psat (typical))	800 W (59 dBm)
Linear output power (PLINEAR*)	58 dBm
Supply voltage	90-264 VAC, 50-60 Hz
Power consumption @ psat	<3000 W
Input frequency range (BUC)	950-1525 MHz
Operating frequency range	5.85 - 6.425 GHz
Lo frequency	4.9 GHz
Gain	>70 dB
Gain flatness	3 dB p-p max over full band; 1 dB p-p max over any 40 MHz
Attenuation adjustment range	20 dB 0.1 dB step
Input vswr	≤1.5:1
Output vswr	≤1.3:1
Dimensions (W x H x D)	483 x 266 x 518 mm (RF unit 6RU panel height)
Mass	35 Kg
Operating temperature	0 ºC to +50 ºC
Storage temperature	-40 ºC to +85 ºC

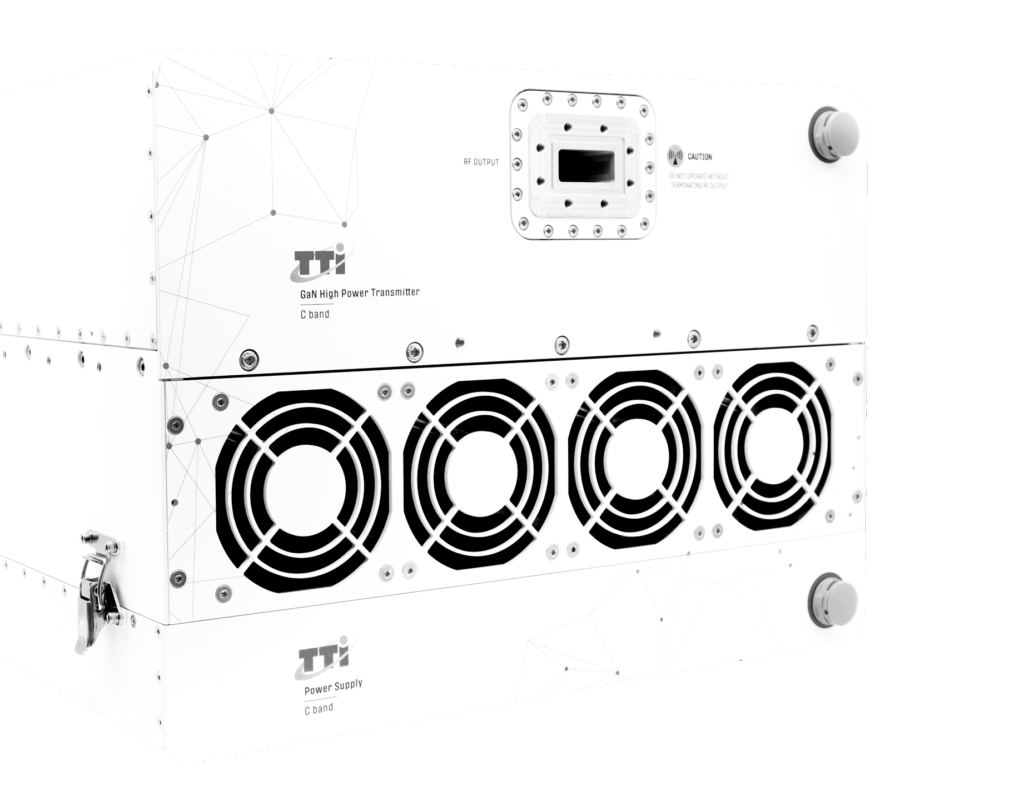

A 200W GaN-based Solid State Power Amplifier/Block Upconverter designed for outdoor broadcast SATCOM applications, offering high efficiency and linear power.

1 26

Input frequency range (BUC)	950-2050 MHz
Operating frequency range	17.3-18.4 GHz
Output power (psat (typical))	200 W / 53 dBm
Linear output power (P LINEAR*)	200 W / 52 dBm
Gain	>75 dB
Gain flatness	4 dB p-p max over full band; 1 dB p-p max over any 40 MHz
Gain variation over temperature	±1.5 dB over full operating range
Attenuation adjustment range (BUC)	20 dB in 0.25 dB step
Attenuation adjustment range (SSPA)	15 dB in 0.50 dB step
Input vswr	≤1.5:1
Output vswr	≤1.3:1
Phase noise (BUC)	-65 dBc/Hz at 100 Hz, -75 dBc/Hz at 1k Hz, -85 dBc at 10 kHz, -95 dBc at 100 kHz
External ref. freq. & phase noise (BUC)	10 MHz, -135 dBc/Hz at 100 Hz, -155 dBc/Hz at 1 kHz, -160 dBc/Hz at 10 kHz, 0 dBm ±3 dB supplied via input L-band cable
Spectral regrowth	-25 dBc @ PLINEAR*
Spurious	-60 dBc max @ PLINEAR*
Supply voltage	90 - 264 VAC, 50 - 60 Hz
Dimensions (L x W x H)	400 x 274 x 220 mm
RF input (L-Band + Ref. signal)	N-type (f) (BUC) / SMA (f) (SSPA)
RF output	WR62 grooved
RF sample	SMA
AC line	3-pin MIL circular
M&c	19-pin MIL circular
Remote control	RS-485 / USB
Operating temperature	-30 ºC to +55 ºC
Storage temperature	-40 ºC to +85 ºC
Humidity	100 % condensing

An indoor GaN DBS SSPA/BUC available in 200W, 300W, or 550W output power, featuring a hot-swappable redundant power supply and comprehensive monitoring capabilities.

1 33

Supply voltage	90-264 VAC, 50-60 Hz
Power consumption @ psat 300 w	<1700 W
Power consumption @ psat 550 w	2700 W
Dimensions (W x H x D)	483 x 266 x 560 mm
Mass	48 Kg
Operating temperature	0 ºC to +50 ºC
Storage temperature	-40 ºC to +85 ºC
Input frequency range (BUC)	950 MHz - 2050 MHz
Input frequency range (SSPA)	17.3 - 18.4 GHz
Operating frequency range	17.3 - 18.4 GHz
Output power (psat (typical)) 200 w	53 dBm
Output power (psat (typical)) 300 w	54.8 dBm
Output power (psat (typical)) 550 w	57.4 dBm
Linear output power (plinear*) 200 w	52 dBm
Linear output power (plinear*) 300 w	53.8 dBm
Linear output power (plinear*) 550 w	56.4 dBm
Gain	>75 dB
Gain flatness over full band	4 dB p-p max
Gain flatness over any 40 mhz	1 dB p-p max
Gain variation over temperature	± 1 dB
Attenuation adjustment range (BUC)	20 dB in 0.25 dB step
Attenuation adjustment range (SSPA)	15 dB in 0.50 dB step
Input vswr	≤1.5:1
Output vswr	≤1.3:1
Phase noise (buc) at 100 hz	-65 dBc/Hz
Phase noise (buc) at 1khz	-75 dBc/Hz
Phase noise (buc) at 10 khz	-85 dBc
Phase noise (buc) at 100 khz	-95 dBc
External ref. freq. & phase noise (buc) at 100 hz	-135 dBc/Hz
External ref. freq. & phase noise (buc) at 1 khz	-155 dBc/Hz
External ref. freq. & phase noise (buc) at 10 khz	-160 dBc/Hz
Spectral regrowth	-25 dBc @ PLINEAR*
Spurious	-60 dBc max @ PLINEAR*

A 300W GaN-based Solid State Power Amplifier/Block Upconverter designed for outdoor broadcast SATCOM applications, offering high efficiency and linear power.

1 26

Input frequency range (BUC)	950-2050 MHz
Operating frequency range	17.3-18.4 GHz
Output power (psat (typical))	300 W / 54.8 dBm
Linear output power (P LINEAR*)	300 W / 53.8 dBm
Gain	>75 dB
Gain flatness	4 dB p-p max over full band; 1 dB p-p max over any 40 MHz
Gain variation over temperature	±1.5 dB over full operating range
Attenuation adjustment range (BUC)	20 dB in 0.25 dB step
Attenuation adjustment range (SSPA)	15 dB in 0.50 dB step
Input vswr	≤1.5:1
Output vswr	≤1.3:1
Phase noise (BUC)	-65 dBc/Hz at 100 Hz, -75 dBc/Hz at 1k Hz, -85 dBc at 10 kHz, -95 dBc at 100 kHz
External ref. freq. & phase noise (BUC)	10 MHz, -135 dBc/Hz at 100 Hz, -155 dBc/Hz at 1 kHz, -160 dBc/Hz at 10 kHz, 0 dBm ±3 dB supplied via input L-band cable
Spectral regrowth	-25 dBc @ PLINEAR*
Spurious	-60 dBc max @ PLINEAR*
Supply voltage	90 - 264 VAC, 50 - 60 Hz
Dimensions (L x W x H)	550 x 450 x 278 mm
RF input (L-Band + Ref. signal)	N-type (f) (BUC) / SMA (f) (SSPA)
RF output	WR62 grooved
RF sample	SMA
AC line	3-pin MIL circular
M&c	19-pin MIL circular
Remote control	RS-485 / USB
Operating temperature	-30 ºC to +55 ºC
Storage temperature	-40 ºC to +85 ºC
Humidity	100 % condensing

A 550W GaN-based Solid State Power Amplifier/Block Upconverter designed for outdoor broadcast SATCOM applications, offering high efficiency and linear power.

1 26

Input frequency range (BUC)	950-2050 MHz
Operating frequency range	17.3-18.4 GHz
Output power (psat (typical))	550 W / 57.4 dBm
Linear output power (P LINEAR*)	550 W / 56.4 dBm
Gain	>75 dB
Gain flatness	4 dB p-p max over full band; 1 dB p-p max over any 40 MHz
Gain variation over temperature	±1.5 dB over full operating range
Attenuation adjustment range (BUC)	20 dB in 0.25 dB step
Attenuation adjustment range (SSPA)	15 dB in 0.50 dB step
Input vswr	≤1.5:1
Output vswr	≤1.3:1
Phase noise (BUC)	-65 dBc/Hz at 100 Hz, -75 dBc/Hz at 1k Hz, -85 dBc at 10 kHz, -95 dBc at 100 kHz
External ref. freq. & phase noise (BUC)	10 MHz, -135 dBc/Hz at 100 Hz, -155 dBc/Hz at 1 kHz, -160 dBc/Hz at 10 kHz, 0 dBm ±3 dB supplied via input L-band cable
Spectral regrowth	-25 dBc @ PLINEAR*
Spurious	-60 dBc max @ PLINEAR*
Supply voltage	90 - 264 VAC, 50 - 60 Hz
Dimensions (L x W x H)	550 x 450 x 278 mm
RF input (L-Band + Ref. signal)	N-type (f) (BUC) / SMA (f) (SSPA)
RF output	WR62 grooved
RF sample	SMA
AC line	3-pin MIL circular
M&c	19-pin MIL circular
Remote control	RS-485 / USB
Operating temperature	-30 ºC to +55 ºC
Storage temperature	-40 ºC to +85 ºC
Humidity	100 % condensing

An indoor 1:1 redundancy system for Ku-band satellite communication, featuring GaN SSPA/BUC transmitters with selectable power outputs of 150W, 325W, or 600W.

Configuration	1:1 Redundancy System
Transmitter type	GaN Ku SSPA/BUC
Power output	150 W/325 W/600 W
Installation environment	Indoor
Controller sub-rack height	2U
Controller sub-rack size	19”
System rack dimensions	19” Rack 42 U (H) x 1 m (D)

An indoor 2:1 redundancy system for Ku-band satellite communication, featuring GaN SSPA/BUC transmitters with selectable power outputs of 150W, 325W, or 600W.

1 7

Configuration	2:1 Redundancy System
Transmitter type	GaN Ku SSPA/BUC
Power output	150 W/325 W/600 W
Installation environment	Indoor
Controller sub-rack height	2U
Controller sub-rack size	19”
System rack dimensions	19” Rack 42 U (H) x 1 m (D)

An indoor standalone GaN Ku-band Solid State Power Amplifier/Block Upconverter (SSPA/BUC) available in 150W, 325W, and 600W output power configurations.

1 21

Input frequency range (BUC)	(1) 950-1700 MHz (2) 950-1450 MHz
Operating frequency range	(1) 13.75-14.50 GHz, LO 12.80 GHz (2) 12.75-13.25 GHz, LO 11.80 GHz
Output power (psat (typical))	150 W / 325 W / 600 W
Linear output power (PLINEAR*)	150 W / 325 W / 600 W
Gain	>65 dB (SSPA); >70 dB (BUC)
Gain flatness	3 dB p-p max over full band; 1 dB p-p max over any 40 MHz
Gain variation over temperature	± 1 dB over full operating range
Attenuation adjustment range (BUC)	25 dB 0.25 dB step
Attenuation adjustment range (SSPA)	25 dB 0.10 dB step
Input vswr	≤1.5:1
Output vswr	≤1.3:1
Phase noise (BUC)	-65 dBc/Hz at 100 Hz, -85 dBc/Hz at 1 kHz, -90 dBc/Hz at 10 kHz, -95 dBc/Hz at 100 kHz
External ref. freq. & phase noise (BUC)	10 MHz, 0 dBm ±5 dB (TX IF port multiplexed), -135 dBc/Hz at 100 Hz, -155 dBc/Hz at 1 kHz,-160 dBc/Hz at 10 kHz
Spectral regrowth	-25 dBc @ PLINEAR*
Spurious	-60 dBc max @ PLINEAR*
Supply voltage	90-264 VAC, 50-60 Hz
Power consumption @ psat	680 W / 1400 W / 2600 W
Dimensions (W x H x D)	483 x 266 x 601 mm (including handles) - RF unit 6RU panel height
Mass	45 Kg
Operating temperature	0 ºC to +50 ºC
Storage temperature	-40 ºC to +85 ºC

An outdoor Gallium Nitride (GaN) Ku-band Solid State Power Amplifier/Block Upconverter (SSPA/BUC) with 325W output power, suitable for SATCOM broadcast applications.

1 25

Output power (psat (typical))	325 W (55 dBm)
Linear output power (PLINEAR*)	325 W (54 dBm)
Supply voltage	90-264 VAC, 50-60 Hz
Power consumption @ psat	1400 W
Dimensions (L x W x H)	550 x 360 x 289 mm
Mass	68.5 Kg
Operating temperature	-30 ºC to +55 ºC
Storage temperature	-40 ºC to +85 ºC
Humidity	100 % condensing
Input frequency range (buc (1))	950-1700 MHz
Input frequency range (buc (2))	950-1450 MHz
Operating frequency range (1)	13.75-14.50 GHz, LO 12.80 GHz
Operating frequency range (2)	12.75-13.25 GHz, LO 11.80 GHz
Gain (SSPA)	>65 dB
Gain (BUC)	>70 dB
Gain flatness	3 dB p-p max over full band; 1 dB p-p max over any 40 MHz
Gain variation over temperature	±1.5 dB over full operating range
Attenuation adjustment range (BUC)	25 dB in 0.25 dB step
Attenuation adjustment range (SSPA)	25 dB in 0.10 dB step
Input vswr	≤1.5:1
Output vswr	≤1.3:1
Phase noise (BUC)	-65 dBc/Hz at 100 Hz, -85 dBc/Hz at 1 kHz, -90 dBc/Hz at 10 Hz, -95 dBc/Hz at 100 kHz
External ref. freq. & phase noise (BUC)	10 MHz, 0 dBm ±5 dB (TX IF port multiplexed) -135 dBc/Hz at 100 Hz, -155 dBc/Hz at 1 kHz, -160 dBc/Hz at 10 kHz
Spectral regrowth	-25 dBc @ PLINEAR*
Spurious	-60 dBc max @ PLINEAR*

An outdoor Gallium Nitride (GaN) Ku-band Solid State Power Amplifier/Block Upconverter (SSPA/BUC) with 600W output power, ideal for SATCOM broadcast applications.

1 25

Output power (psat (typical))	600 W (57.8 dBm)
Linear output power (PLINEAR*)	600 W (56.8 dBm)
Supply voltage	90-264 VAC, 50-60 Hz
Power consumption @ psat	2600 W
Dimensions (L x W x H)	550 x 360 x 289 mm
Mass	68.5 Kg
Operating temperature	-30 ºC to +55 ºC
Storage temperature	-40 ºC to +85 ºC
Humidity	100 % condensing
Input frequency range (buc (1))	950-1700 MHz
Input frequency range (buc (2))	950-1450 MHz
Operating frequency range (1)	13.75-14.50 GHz, LO 12.80 GHz
Operating frequency range (2)	12.75-13.25 GHz, LO 11.80 GHz
Gain (SSPA)	>65 dB
Gain (BUC)	>70 dB
Gain flatness	3 dB p-p max over full band; 1 dB p-p max over any 40 MHz
Gain variation over temperature	±1.5 dB over full operating range
Attenuation adjustment range (BUC)	25 dB in 0.25 dB step
Attenuation adjustment range (SSPA)	25 dB in 0.10 dB step
Input vswr	≤1.5:1
Output vswr	≤1.3:1
Phase noise (BUC)	-65 dBc/Hz at 100 Hz, -85 dBc/Hz at 1 kHz, -90 dBc/Hz at 10 Hz, -95 dBc/Hz at 100 kHz
External ref. freq. & phase noise (BUC)	10 MHz, 0 dBm ±5 dB (TX IF port multiplexed) -135 dBc/Hz at 100 Hz, -155 dBc/Hz at 1 kHz, -160 dBc/Hz at 10 kHz
Spectral regrowth	-25 dBc @ PLINEAR*
Spurious	-60 dBc max @ PLINEAR*

An indoor 300W GaN X-band SSPA for commercial, government, and defense SATCOM, featuring high power, efficiency, and robust performance.

Output power (psat (typical))	55 dBm
Output power (plinear (typical))	52 dBm
Supply voltage	90-264 VAC, 50-60 Hz
Power consumption @ psat	800 W
Dimensions (w x h x d) - RF unit (air cooling)	483 x 266 x 560 mm - 6RU panel height
Dimensions (w x h x d) - (water cooling)	343 x 120 x 508 mm - 343 x 120 x 684 mm with pipes
Mass	<23 kg
Operating temperature	0 ºC to +50 ºC
Storage temperature	-40 ºC to +85 ºC
Operating frequency range	7.9 - 8.4 GHz
3rd order imd (2 tones 5 MHz apart*)	-25 dBc @PLINEAR
Gain @ psat	>60 dB
Gain flatness	±1.0 dB p-p max
Gain stability over 24 hours	±0.25 dB @ constant temperature and drive level
Gain variation over temperature	±1.5 dB over the whole range
Attenuation adjustment range	20 dB whit in 0.1 dB steps
Input vswr	<1.3:1
Output vswr	<1.3:1
Mute	>45 dB
Noise power density	-75 dBm/Hz between 7.9 – 8.4 GHz, -140 dBm/Hz between 7.25 – 7.75 GHz (with external RX rejected filter)
Spurious @ plinear	-65 dBc
Harmonics @ plinear	-60 dBc
Am/pm conversion	<2 º/dB up to PLINEAR

A high-power GaN C-band SSPA with 1.5 kW output, available in outdoor or indoor configurations, featuring automatic control modes and various interfaces.

1 16

Output power (psat (typical))	1.5 kW (61.2 dBm)
Linear output power (PLINEAR*)	1.5 kW (60.8 dBm)
Supply voltage	90-264 VAC, 50-60 Hz
Power consumption @ psat	<5 kW
Operating frequency range	5.85 - 6.425 GHz
Gain	>70 dB
Gain flatness	<3 dB p-p over full band; <1 dB p-p over any 40 MHz
Attenuation adjustment range	20 dB in 0.25 dB step
Input vswr	≤1.5:1
Output vswr	≤1.3:1
Outdoor dimensions (L x W x H)	1370 x 1070 x 1000 mm
Indoor dimensions	19” Rack cabinet 44 U (H), 1 m (D)
Operating temperature (Outdoor)	-30 ºC to +55 ºC
Operating temperature (Indoor)	0 ºC to +50 ºC
Storage temperature	-40 ºC to +85 ºC
Humidity (Outdoor)	100 % condensing

A high-power GaN C-band SSPA with 2.7 kW output, available in outdoor or indoor configurations, featuring automatic control modes and various interfaces.

Output power (psat (typical))	2.7 kW (64.3 dBm)
Linear output power (PLINEAR*)	2.7 kW (63.3 dBm)
Supply voltage	90-264 VAC, 50-60 Hz
Power consumption @ psat	<10 kW
Operating frequency range	5.85 - 6.425 GHz
Gain	>70 dB
Gain flatness	<3 dB p-p over full band; <1 dB p-p over any 40 MHz
Attenuation adjustment range	20 dB in 0.25 dB step
Input vswr	≤1.5:1
Output vswr	≤1.3:1
Outdoor dimensions (L x W x H)	1370 x 1070 x 1000 mm
Indoor dimensions	19” Rack cabinet 44 U (H), 1 m (D)
Operating temperature (Outdoor)	-30 ºC to +55 ºC
Operating temperature (Indoor)	0 ºC to +50 ºC
Storage temperature	-40 ºC to +85 ºC
Humidity (Outdoor)	100 % condensing

A high-power GaN C-band SSPA with 4.8 kW output, available in outdoor or indoor configurations, featuring automatic control modes and various interfaces.

Output power (psat (typical))	4.8 kW (66.8 dBm)
Linear output power (PLINEAR*)	4.8 kW (65.8 dBm)
Supply voltage	90-264 VAC, 50-60 Hz
Power consumption @ psat	<20 kW
Operating frequency range	5.85 - 6.425 GHz
Gain	>70 dB
Gain flatness	<3 dB p-p over full band; <1 dB p-p over any 40 MHz
Attenuation adjustment range	20 dB in 0.25 dB step
Input vswr	≤1.5:1
Output vswr	≤1.3:1
Outdoor dimensions (L x W x H)	1370 x 2000 x 1000 mm
Indoor dimensions	Qty x2 (19” Rack cabinet 44 U (H), 1 m (D))
Operating temperature (Outdoor)	-30 ºC to +55 ºC
Operating temperature (Indoor)	0 ºC to +50 ºC
Storage temperature	-40 ºC to +85 ºC
Humidity (Outdoor)	100 % condensing

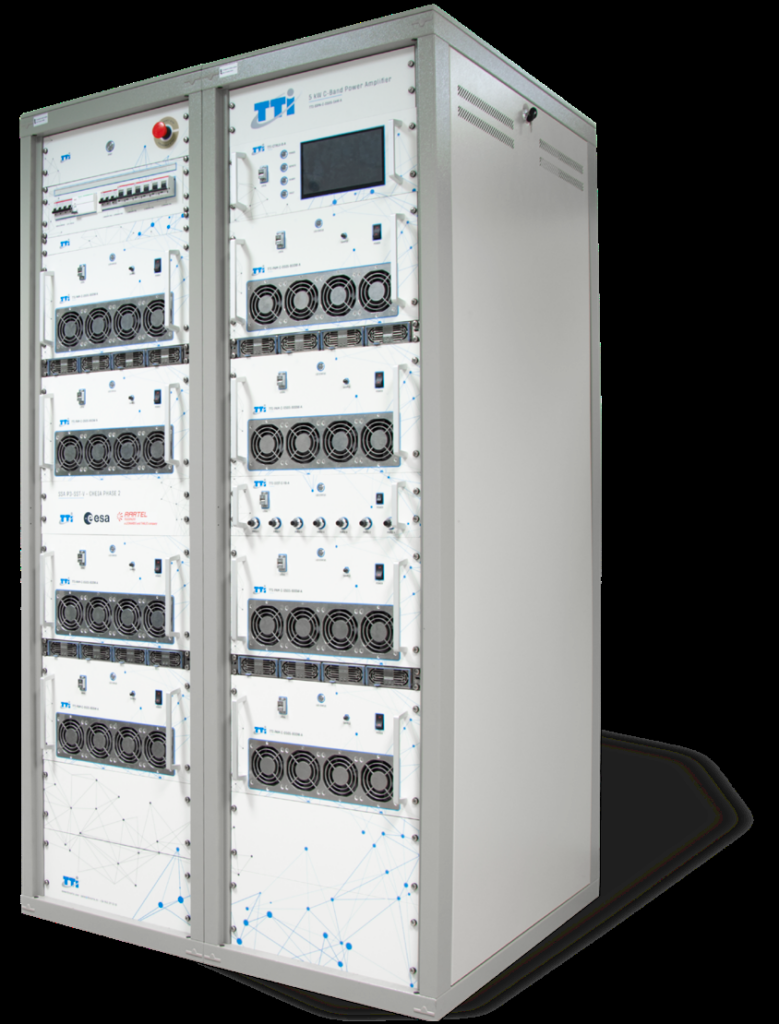

A high-power GaN DBS SSPA available in 1kW, 2kW, or 3.5kW output power, suitable for both outdoor and indoor installations, with a wide operating frequency range.

1 27

Supply voltage	90-264 VAC, 50-60 Hz
Power consumption @ psat 1 kw	<5 kW
Power consumption @ psat 2 kw	<10 kW
Power consumption @ psat 3.5 kw	<20 kW
Dimensions (l x w x h) outdoor 1 kw / 2 kw	1370 x 1070 x 1000 mm
Dimensions (l x w x h) outdoor 3.5 kw	1370 x 2000 x 1000 mm
Indoor rack cabinet	44 U (H), 1 m (D)
Operating temperature outdoor	-30 ºC to +55 ºC
Operating temperature indoor	0 ºC to +50 ºC
Storage temperature	-40 ºC to +85 ºC
Humidity outdoor	100 % condensing
Operating frequency range	17.30 - 18.40 GHz
Output power (psat (typical)) 1 kw	60 dBm
Output power (psat (typical)) 2 kw	63 dBm
Output power (psat (typical)) 3.5 kw	65.4 dBm
Linear output power (plinear*) 1 kw	59 dBm
Linear output power (plinear*) 2 kw	62 dBm
Linear output power (plinear*) 3.5 kw	64.4 dBm
Gain	>70 dB
Gain flatness over full band	<4 dB p-p
Gain flatness over any 40 mhz	<1 dB p-p
Gain variation over temperature	<± 1.5 dB
Attenuation adjustment range	30 dB in 0.25 dB step
Input vswr	≤1.5:1
Output vswr	≤1.3:1
Spectral regrowth	-25 dBc @ PLINEAR*
Spurious	-60 dBc max @ PLINEAR*

Electronically-steered, no-moving-parts L-band phased array antenna for simultaneous multi-satellite Galileo/GLONASS/GPS Search & Rescue (MEOLUT) tracking.

1 7

Frequency band	L-band
Antenna type	Planar phased array, no moving parts
Simultaneous signals	Up to 6
Compatible constellations	Galileo, GLONASS, GPS
Beam steering	Electronic, instantaneous
Maintenance	Self-calibrating, graceful degradation on element failure
Dish replacement ratio	Replaces up to 4 traditional MEOLUT dishes

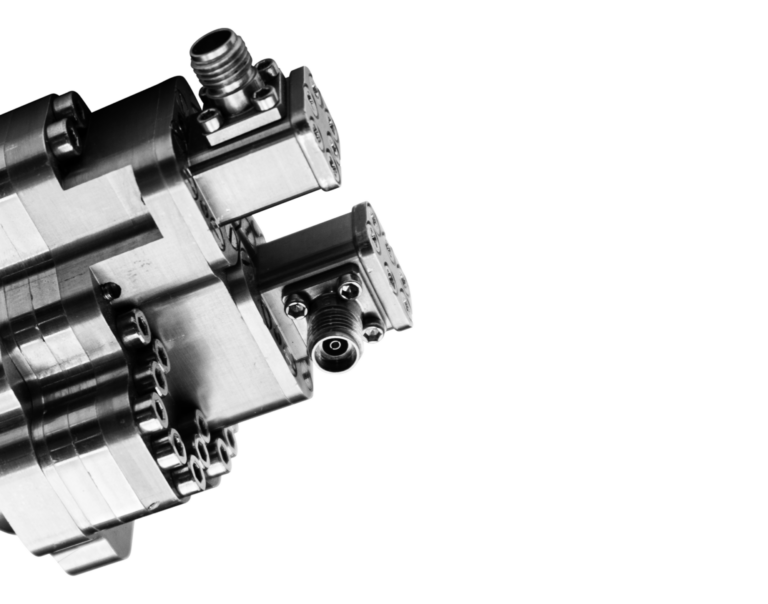

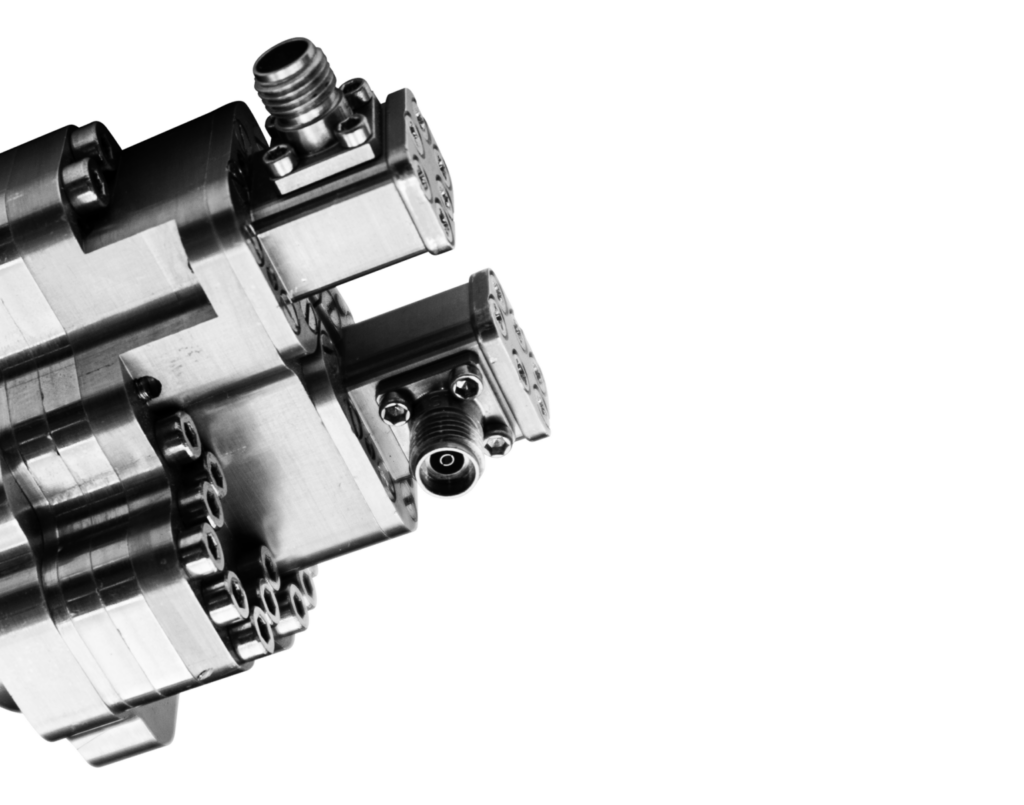

Waveguide orthomode transducers separating dual-polarized transmit/receive signals in ground station antenna feed chains, from very low frequency up to V-band.

1 3

Omt full-band q/u/v	Q/U/V band
Omt full-band k/KA	K/Ka band
Omt full-band	up to 18 GHz

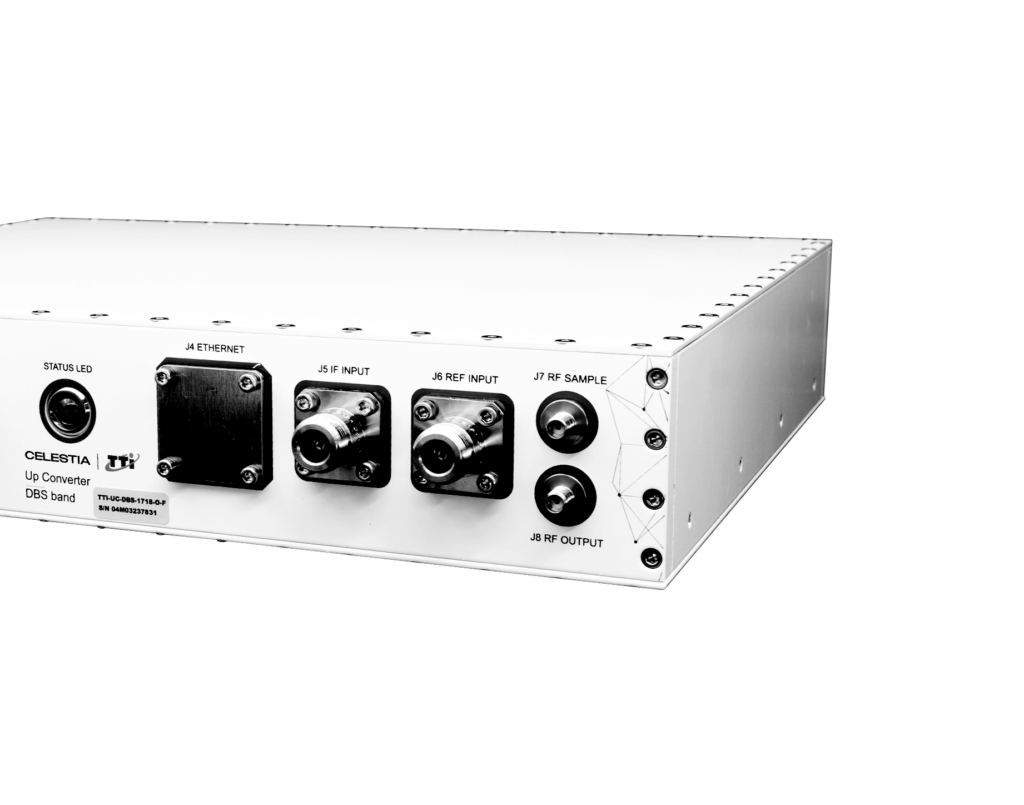

The UPC-Ext is an independent outdoor up-converter module available in various versions for Ku or DBS bands, designed for installation close to GaN SSPA units.

1 15

Type	Q band Down converter, dual channel
Input freq.	39.3 – 39.8 GHz
Output freq.	950 – 1450 MHz
Type (2)	DBS band Up-converter
Input freq. (2)	950 – 2050 MHz
Output freq. (2)	17.3 – 18.4 GHz
Type (3)	Ku band Up-converter
Input freq. (3)	950 – 1450 MHz
Output freq. (3)	12.75 – 13.25 GHz
Type (4)	Ku band Up-converter
Input freq. (4)	950 – 1700 MHz
Output freq. (4)	13.75 – 14.5 GHz
Type (5)	Ku band Up-converter
Input freq. (5)	950–1450 MHz / 950–1700 MHz
Output freq. (5)	12.75–14.5 GHz

An indoor Pulsed Wave LDMOS SSPA with 350W output power, designed for industrial, scientific, and medical applications, featuring air cooling and standard 19” rack mounting.

Supply voltage	AC 100-264 VAC 50/60 Hz
Power consumption @ psat	<1200 W
Dimensions (W x H x D)	483 x 88 x 322 mm / 19” Standard, 2U height
Mass	11 kg
Operating temperature	10 °C to 40 °C
Storage temperature	-40 ºC to +85 ºC
Humidity	90 % non-condensing
Input frequency range	3 GHz ±5 MHz
Operating mode	Pulsed wave
Output power (p1 db (typical))	55.44 dBm
Gain	> 57 dB
Gain flatness	< 1 dB
Input level (nominal)	-2 dBm to 4 dBm
Attenuation adjustment range	6 dB
Input vswr	<1.4:1
Output vswr	Full reflection all phases
Pulse width	100 ms max.
Duty cycle	10 % max.
Rise/fall time	<50 ns

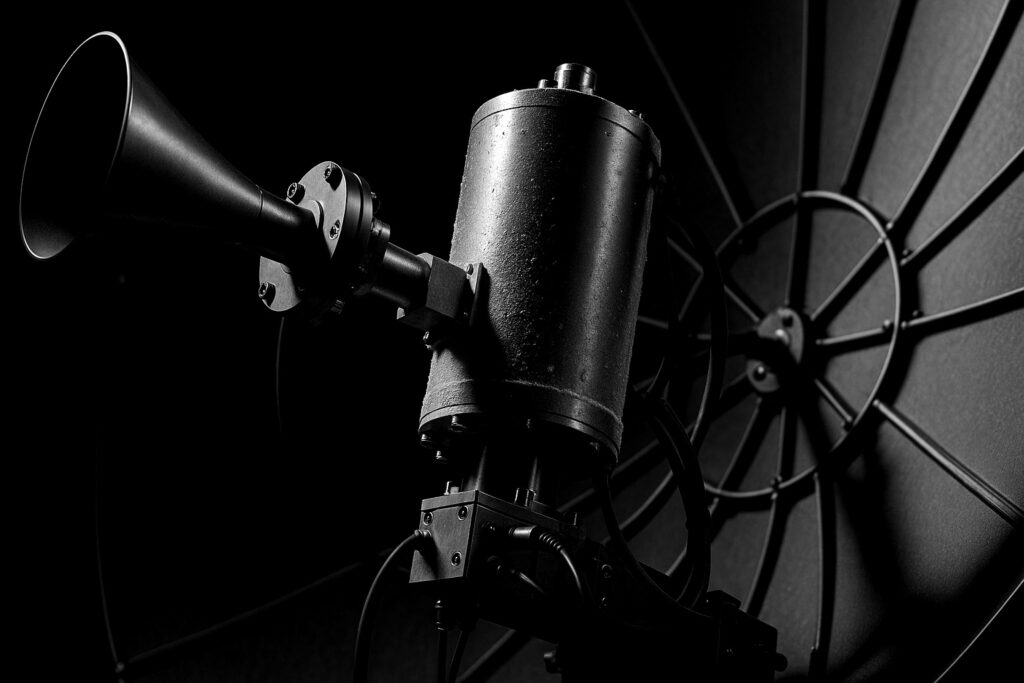

A 25W Q-band Block Upconverter (BUC) designed for outdoor use, providing high gain and robust performance for satellite communications.

1 27

Supply voltage	264 VAC, 50-60 Hz
Power consumption @ psat	495 W
Dimensions (L x W x H)	340 x 210 x 170 mm
Mass	12.3 kg
Input (L-band + external reference)	N-type (f)
Output	WR22 UG-383/U or UG599/U
AC line	3-pin MIL circular
M&c	RS-485, Ethernet upon request
Operating temperature	-30 ºC to +55 ºC
Storage temperature	-40 ºC to +85 ºC
Remote control	RS-485/USB
Monitor parameters	Input power / Temperature / Summary alarms
Internal self protection	Temperature (>75 ºC) / Input level / Reflected power
Input frequency range	950-1450 MHz
Operating frequency range	43-43.5 GHz
Output power (psat (typical))	44 dBm
Gain	>60 dB
Gain flatness	±1.5 dB p-p max (SSPA) / ±0.5 dB p-p max over any 40 MHz
Gain stability over 24 hours	±0.25 dB @ constant temperature
Gain variation over temperature	±2 dB over the whole range
Attenuation adjustment range	30 dB in 0.25 dB steps
Input vswr	<1.5:1
Output vswr	<1.3:1
Mute	>60 dB
Phase noise	As per IESS-308/309
External ref. freq. & phase noise	10 MHz / 0 dBm ± 5 dB. Multiplexed on L-band input SMA (F) 50 Ω upon request
Spurious	<-60 dBc

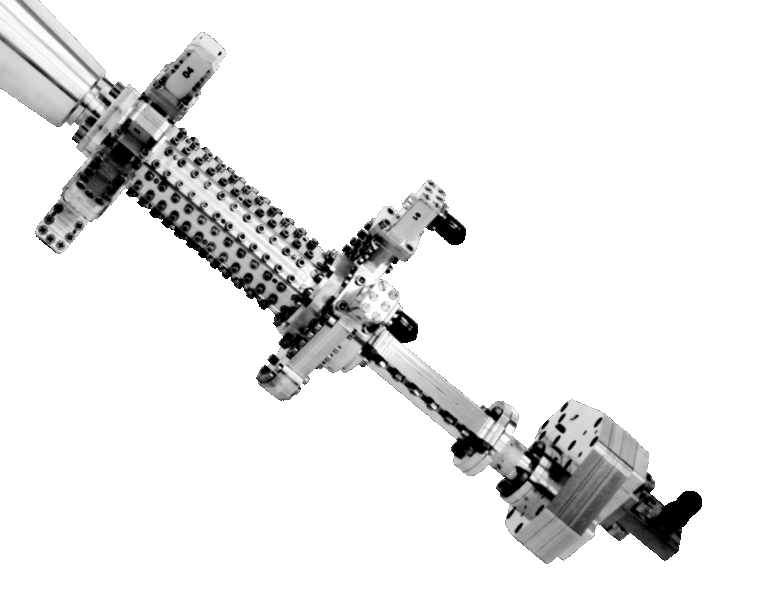

A 25W Q-band Solid State Power Amplifier (SSPA) designed for outdoor use in Satcom and load pull applications, featuring high efficiency and robust performance.

1 24

Supply voltage	90-264 VAC, 50-60 Hz
Power consumption @ psat	495 W
Dimensions (L x W x H)	340 x 210 x 170 mm
Mass	12.6 kg
Input	WR22 (UG599/U or UG-383/U)
Output	WR22 (UG599/U or UG-383/U)
AC line	3-pin MIL circular
M&c	RS 4885, Ethernet upon request
Operating temperature	-30 ºC to +55 ºC
Storage temperature	-40ºC to +85ºC
Remote control	RS-485/USB
Monitor parameters	Input power / Temperature / Summary alarms
Internal self protection	Temperature (>75 ºC) / Input level / Reflected power
Operating frequency range	45 - 46.5 GHz (other sub-bands upon request)
Output power (psat (typical))	44 dBm (45-46.5 GHz)
Gain	>70 dB
Gain flatness	± 1.5 dB p-p max over any 40 MHz
Gain stability over 24 hours	± 0.25 dB @constant temperature
Gain variation over temperature	± 1.5 dB over the whole range
Attenuation adjustment range	25 dB in 0.1 dB steps
Input vswr	<1.5:1
Output vswr	<1.3:1
Mute	>45 dB
Spurious	<-60 dBc

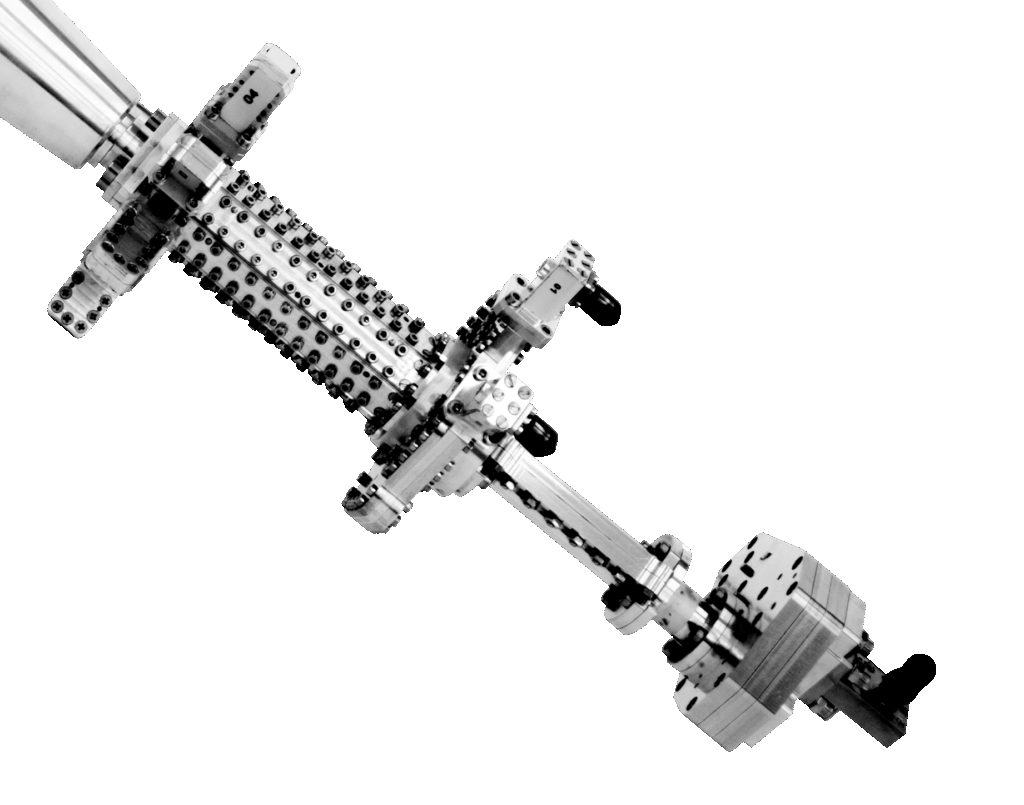

A new generation of Q-band Solid State Power Amplifiers (SSPAs) and Block Upconverters (BUCs) designed for Satcom and load pull applications, offering outstanding performance in outdoor operation.

1 37

Supply voltage	90-264 VAC, 50-60 Hz
Power consumption @ psat	800 W
Dimensions (w x h x d) - RF unit (air cooling)	483 x 266 x 560 mm - 6RU panel height
Dimensions (w x h x d) - (water cooling)	343 x 120 x 508 mm - 343 x 120 x 684 mm with pipes
Mass	<23 kg
RF input	N (f)
RF output	WR112 (CPR-112)
RF forward output sample	N (f)
M&c	RJ45 (f) & DB15 (f)
AC input	3-pin C14 (m), 90-260 VAC, 6 A, 50/60 Hz
Water cooling interface	quick connect coupling connectors
System status	tricolour status LED
Coolant (liquid)	inhibited glycol / distilled water mixture
Coolant inlet temperature	20 °C to 30 °C
Coolant inlet pressure	< 5 bar
Operating temperature	0 ºC to +50 ºC
Storage temperature	-40 ºC to +85 ºC
Remote control	RS-232 / RS-485 / Ethernet
Monitor parameters	Input power / Output forward & reverse power / Temperature / Summary alarms
Internal self protection	Temperature (>85 ºC) / Reflected power / High input or output power
Operating frequency range	7.9 - 8.4 GHz
Output power (psat (typical))	55 dBm
Output power (plinear (typical))	52 dBm
3rd order imd (2 tones 5 MHz apart*)	-25 dBc @PLINEAR
Gain @ psat	>60 dB
Gain flatness	±1.0 dB p-p max
Gain stability over 24 hours	±0.25 dB @ constant temperature and drive level
Gain variation over temperature	±1.5 dB over the whole range
Attenuation adjustment range	20 dB whit in 0.1 dB steps
Input vswr	<1.3:1
Output vswr	<1.3:1
Mute	>45 dB
Noise power density (7.9 – 8.4 GHz)	-75 dBm/Hz
Noise power density (7.25 – 7.75 GHz)	-140 dBm/Hz (with external RX rejected filter)
Spurious @ plinear	-65 dBc
Harmonics @ plinear	-60 dBc
Am/pm conversion	<2 º/dB up to PLINEAR

An indoor Remote Control Unit for monitoring and controlling GaN SSPAs, BUCs, and UCs in redundant systems.

1 4

Dimensions (L x W x H)	404 x 220 x 151 mm
Supply	180-305 VAC, 47-63 Hz
Operating temperature	-30 ºC to +55 ºC
Storage temperature	-40 ºC to +85 ºC

A weatherproof Remote Control Unit for monitoring and controlling GaN SSPAs, BUCs, and UCs in outdoor redundant and phase-combined configurations.

1 4

Dimensions (L x W x H)	404 x 220 x 151 mm
Supply	180-305 VAC, 47-63 Hz
Operating temperature	-30 ºC to +55 ºC
Storage temperature	-40 ºC to +85 ºC

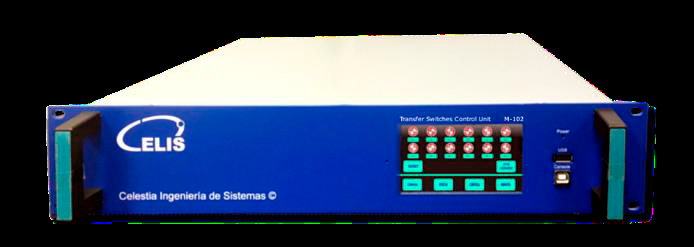

Celestia TTI's RF Management Units provide flexible solutions for SATCOM Ground Stations, offering RF interface and switching capabilities for signal routing, distribution, amplification, attenuation, monitoring, filtering, and frequency translation.

1 5

Functions	Signal routing, distribution, amplification, attenuation, monitoring, filtering, frequency translation
Interfaces	Front-panel GUI and web-based remote MMI
Certification	CE
Redundancy	Redundancy management units available
Monitoring and Control capacity	up to 12 transfer switches

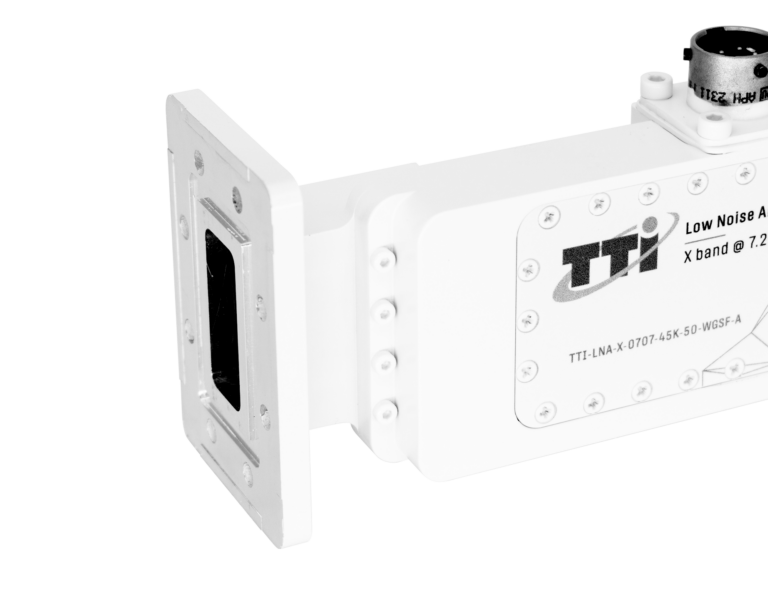

New-generation low-noise amplifiers (LNAs/LNBs) for X-band satcom ground stations, engineered for earth observation and lunar communication receive chains.

1 4

Variant 1 frequency	7.9 - 8.5 GHz
Variant 2 frequency	8.0 - 8.5 GHz
Variant 3 frequency	8.4 - 8.5 GHz
Noise temperature (all variants)	< 50 K

Additional Services

Testing & qualification

Details →

Satellite Signal Test System and Services

TTI Norte provides comprehensive solutions for satellite signal testing, leveraging their expertise in satellite in-orbit testing. They offer full turnkey test solutions and associated services to meet various test challenges. This includes requirements analysis, system design and integration, and the…

Full details →

Ground segment / TT&C

Details →

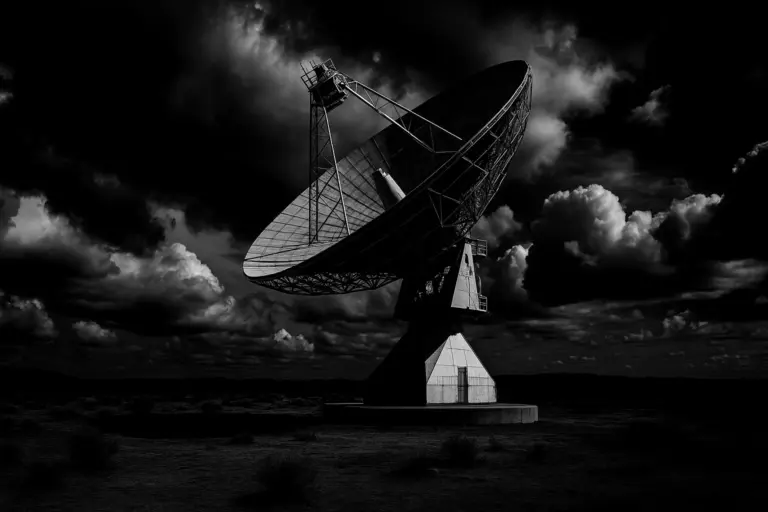

TTI Norte provides turnkey ground station solutions customized to customer requirements and needs. Their expertise covers the design, development, integration, and testing of space surveillance and tracking radar, new ground stations, and upgrades to existing customer ground stations. They develop…

Full details →

Engineering & analysis

Details →

TTI Norte offers consulting engineering services by analyzing customer needs and providing optimal engineering profiles and solutions. They integrate into customer teams to address needs as they arise, offering flexibility for support at customer premises or their own facilities across…

Full details →

Details →

Customized Feeders & Antenna Systems Design, Manufacturing, Characterization and Commissioning

TTI Norte provides end-to-end services for customized feeders and antenna systems, encompassing the detailed specification of requirements, design, manufacturing, characterization, and final commissioning. This customization includes frequency range, polarization, crosspolar discrimination, gain, beamwidth, and other electrical and mechanical requirements. They…

Full details →

Details →

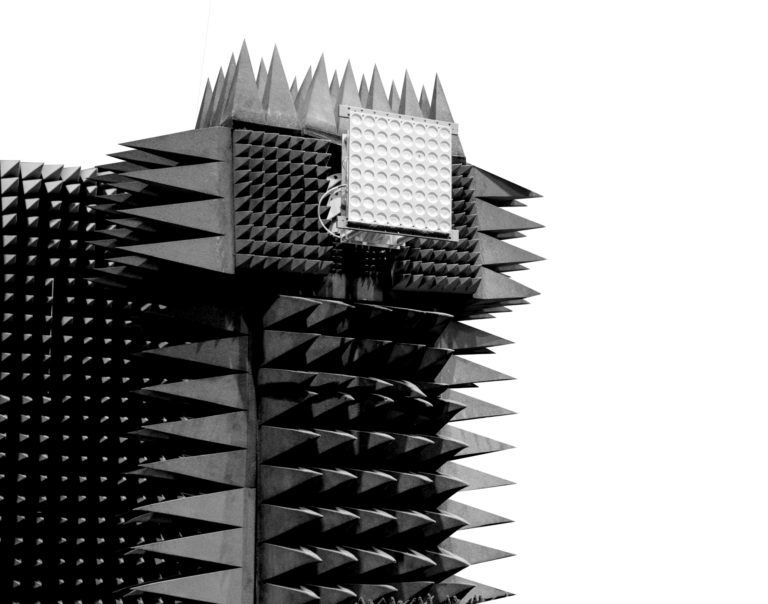

RF & Antenna Solutions Design, Development, Manufacturing, Test and Validation

TTI Norte offers comprehensive services for active RF solutions, including the design, development, manufacturing, testing, and validation of radiofrequency systems and subsystems. These can be TTI branded or OEM, covering a wide range of output powers and frequencies for various…

Full details →

Reviews

No reviews yet — reviews come from buyer accounts that have worked with this company.

Write a review

← All providers

TTI Norte

About TTI Norte

Milestones

Photos 1

Products

Antenna Feeder System

Antenna Feeder System

Description

Specifications

Antenna Polarisers

Antenna Polarisers

Description

Specifications

C band SSPAs & BUCs

C band SSPAs & BUCs

Description

Specifications

Cryogenic LNA portfolio

Cryogenic LNA portfolio

Description

Specifications

CW LDMOS UHF SSPA 500W Indoor

CW LDMOS UHF SSPA 500W Indoor

Description

Specifications

CW/PW LDMOS UHF SSPA 1.25kW Indoor

CW/PW LDMOS UHF SSPA 1.25kW Indoor

Description

Specifications

Dual GaN Ka SSPA/BUC 40W Outdoor

Dual GaN Ka SSPA/BUC 40W Outdoor

Description

Specifications

Flat Antenna Panels

Flat Antenna Panels

Description

Specifications

GaN C SSPA/BUC 800W 1:1 REDUNDANCY SYSTEM - Outdoor

GaN C SSPA/BUC 800W 1:1 REDUNDANCY SYSTEM - Outdoor

Description

Specifications

GaN C SSPA/BUC 800W 1:1 Redundancy System Indoor

GaN C SSPA/BUC 800W 1:1 Redundancy System Indoor

Description

Specifications

GaN C SSPA/BUC 800W 2:1 REDUNDANCY SYSTEM - Outdoor

GaN C SSPA/BUC 800W 2:1 REDUNDANCY SYSTEM - Outdoor

Description

Specifications

GaN C SSPA/BUC 800W 2:1 Redundancy System Indoor

GaN C SSPA/BUC 800W 2:1 Redundancy System Indoor

Description

Specifications

GaN C SSPA/BUC 800W Indoor

GaN C SSPA/BUC 800W Indoor

Description

Specifications

GaN C SSPA/BUC 800W Outdoor

GaN C SSPA/BUC 800W Outdoor

Description

Specifications

GaN C SSPA/BUC 800W STANDALONE - Indoor

GaN C SSPA/BUC 800W STANDALONE - Indoor

Description

Specifications

GaN DBS SSPA/BUC 200W Outdoor

GaN DBS SSPA/BUC 200W Outdoor

Description

Specifications

GaN DBS SSPA/BUC 200W/300W/550W Indoor

GaN DBS SSPA/BUC 200W/300W/550W Indoor

Description

Specifications

GaN DBS SSPA/BUC 300W Outdoor

GaN DBS SSPA/BUC 300W Outdoor

Description

Specifications

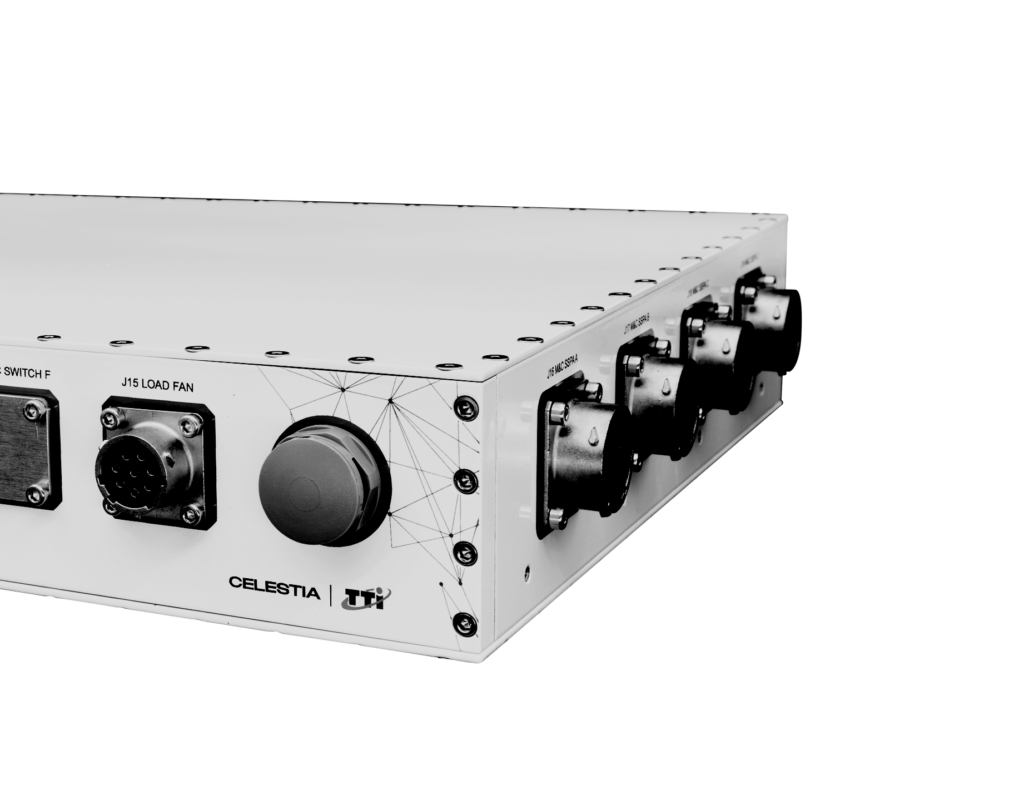

GaN DBS SSPA/BUC 550W Outdoor

GaN DBS SSPA/BUC 550W Outdoor

Description
