C band SSPAs & BUCs
TTI Norte

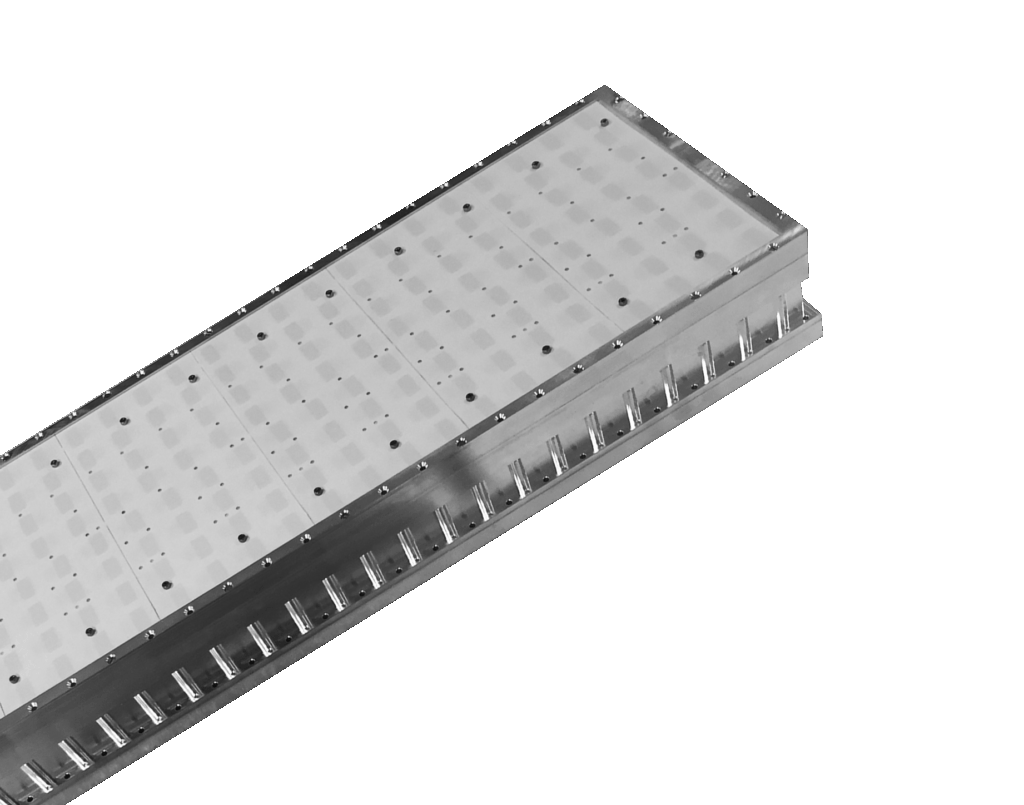

A new generation of GaN-based Solid State Power Amplifiers (SSPAs) and Block Upconverters (BUCs) for C-band satellite communication, offering outstanding performance for outdoor or indoor civil applications.
Typed specifications30 values
Discloses 5 of 8 fields engineers filter by in this category (category median 2).
- Frequency band
- C Indoor · datasheet p.6 C Outdoor
- Mass
- 35 000 g datasheet p.2
- Frequency range
- 5 850–6 425 MHz datasheet p.6 5.850- 6.425 GHz Indoor | 5.850- 6.425 GHz Outdoor | 5 850–6 425 MHz C band SSPA/BUC and SSPA, printed 5.850- 6.425 GHz | 5.850- 6.425 GHz Indoor +1
- Envelope (L×W×H)
- 1200 x 1200 x 1000 mm (1.5 kW) Outdoor · datasheet p.2
- TX RF output power
- 800 W Indoor SSPA/BUC Standalone · datasheet p.6 800 W Outdoor SSPA/BUC Standalone | 4 800 W Psat, C band SSPA phase combined (outdoor and indoor) | 1 500 W Psat, C band SSPA phase combined, indoor | 1 100 W Psat, C band SSPA phase combined, outdoor +8
- Power consumption
- 3 000 W PSAT · datasheet p.2
- Data interface
- RS-485 ASCII commands · datasheet p.1 Ethernet M&C option (Telnet, HTTP, SNMP), GaN DBS/Ku/C SSPA/BUC family | RS-485 M&C, GaN DBS/Ku/C SSPA/BUC family | USB M&C, GaN DBS/Ku/C SSPA/BUC family
- Function
- other GaN SSPA / BUC (solid-state power amplifier, block up-convert… · datasheet p.6
- Link use
- ground terminal broadcast satcom ground transmitter · datasheet p.6
Each value is typed with its unit and measurement condition and cites the datasheet page it was taken from. Nothing is guessed: a field that is absent here has not been published by the manufacturer. machine-extracted ✓ checked by NewSpace Market ✓ manufacturer confirmed by the manufacturer.
As published by the supplier32 lines, in the manufacturer's own wording
- Type
- C band outdoor SSPA/BUC
- Technology
- GaN
- Psat
- 800 W
- Frequency
- 5.850–6.425 GHz
- Type (2)
- Phase combined system
- Technology (2)
- GaN
- Psat (2)
- 4.8 kW
- Frequency (2)
- 5.850–6.425 GHz
- Type (3)
- Phase combined system
- Technology (3)
- GaN
- Psat (3)
- 2.7 kW
- Frequency (3)
- 5.850–6.425 GHz
- Type (4)
- Phase combined system
- Technology (4)
- GaN
- Psat (4)
- 1.5 kW
- Frequency (4)
- 5.850–6.425 GHz
- Type (5)
- C band indoor SSPA/BUC
- Technology (5)
- GaN
- Psat (5)
- 800 W
- Frequency (5)
- 5.850–6.425 GHz
- Type (6)
- Phase combined system
- Technology (6)
- GaN
- Psat (6)
- 4.8 kW
- Frequency (6)
- 5.850–6.425 GHz
- Type (7)
- Phase combined system
- Technology (7)
- GaN
- Psat (7)
- 2.7 kW
- Frequency (7)
- 5.850–6.425 GHz
- Type (8)
- Phase combined system
- Technology (8)
- GaN
- Psat (8)
- 1.5 kW
- Frequency (8)
- 5.850–6.425 GHz
About
This product family comprises C-band Solid State Power Amplifiers (SSPAs) and Block Upconverters (BUCs) utilizing cutting-edge Gallium Nitride (GaN) technology. These devices are designed to provide outstanding performance for satellite communication (Satcom) applications, suitable for both outdoor and indoor operations in civil contexts. The product line includes various configurations, from individual 800W SSPA/BUC units to high-power phase combined systems reaching up to 4.8 kW, all operating within the 5.850–6.425 GHz frequency range. These units are essential components in ground segment infrastructure, responsible for amplifying and upconverting signals for transmission to satellites.
