NANO Dragsail
Frond Space Systems

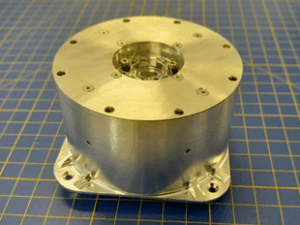

The NANO Dragsail is a low-mass deorbiting system for nanosatellites in LEO, featuring a 1m² deployed area and a tuna-can form factor for late-stage integration.
Typed specifications16 values
Discloses 3 of 10 fields engineers filter by in this category (category median 3).
- Propulsion family
- other drag sail (deorbit device) · datasheet p.1
- Mass
- 250 g datasheet p.1
- Supply voltage
- 3.3 V product page 3.3–8.4 V activation signal, selected on order, 10s duration | 3.3–8.4 V Spacecraft actuated
- Data interface
- I2C datasheet p.2 I2C watchdog configurations only | CAN | CAN watchdog configurations only
- Operating temperature
- -30 °C product page -30–60 °C
- Thruster technology
- other drag sail, 1m2 deployed drag area · datasheet p.1
- Connector
- 5-way Molex Picoblade datasheet p.2
- Random vibration
- 14.1 g RMS GEVS · datasheet p.1
- Satellite class
- nanosat 1-10 kg Nanosatellites in LEO · datasheet p.1 CubeSat optimised for 2U-12U CubeSats
Each value is typed with its unit and measurement condition and cites the datasheet page it was taken from. Nothing is guessed: a field that is absent here has not been published by the manufacturer. machine-extracted ✓ checked by NewSpace Market ✓ manufacturer confirmed by the manufacturer.
As published by the supplier10 lines, in the manufacturer's own wording
- Form factor
- Tuna-Can
- Mass
- 250 g
- Deployed area
- 1m²
- Optimised for
- Cubesats
- Environmental qualification
- GEVS levels (14.1Grms)
- Operational temperature range
- -30°C to +60°C
- Supply voltage
- 3.3 V-8.4 V
- Interface
- 5-way Molex Picoblade
- Data interface
- I2C, CAN
- Mechanical interface
- 4x M3 Countersunk
About
The NANO Dragsail is an effective deorbiting solution for nanosatellites operating in Low Earth Orbit (LEO). It features a compact tuna-can form factor and is designed for low impact and late-stage integration into CubeSats. The system boasts a low mass of 250g, fitting entirely within extended CubeSat volumes. Upon deployment, it provides a 1m² sail area, optimized for CubeSats to ensure effective deorbiting for the majority of these small satellites in LEO without adding unnecessary materials. The NANO Dragsail is environmentally qualified to GEVS levels (14.1Grms) and operates within a temperature range of -30°C to +60°C, requiring minimal spacecraft interfaces. It offers a robust alternative to propulsion systems for deorbiting, as it is less susceptible to spacecraft anomalies like power or attitude control failures, and comes at a significantly lower cost. The design assumes random tumbling conditions of the spacecraft to ensure compliance in worst-case scenarios, with any aero-stabilization or attitude control during operation being an added benefit. This product addresses the increasing need for responsible satellite disposal and compliance with regulations such as the US FCC policy requiring deorbiting within 5 years of end of mission.
