GaN DBS SSPA/BUC 200W/300W/550W Indoor
TTI Norte

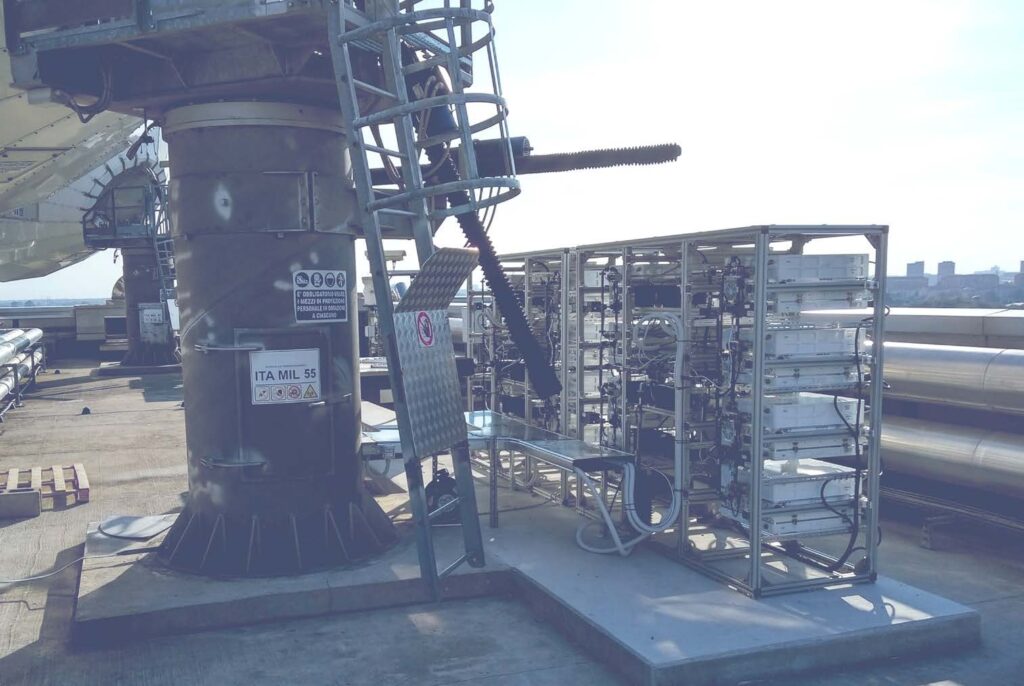

An indoor GaN DBS SSPA/BUC available in 200W, 300W, or 550W output power, featuring a hot-swappable redundant power supply and comprehensive monitoring capabilities.
Key figurescomparable across the catalogue
- Mass
- 48 kg
- Power
- 1,700 W
- Largest dimension
- 560 mm
Normalised to common units so this product can be compared with others in its category. The supplier's own wording is below.
As published by the supplier
- Input voltage
- 90-264 VAC, 50-60 Hz
- Power consumption @ PSAT 300 W
- <1700W
- Power consumption @ PSAT 550 W
- 2700W
- Dimensions (W x H x D)
- 483 x 266 x 560 mm
- Weight
- 48 Kg
- Operating temperature
- 0 ºC to +50 ºC
- Storage temperature
- -40 ºC to +85 ºC
- Input frequency range (BUC)
- 950 MHz - 2050 MHz
- Input frequency range (SSPA)
- 17.3 - 18.4 GHz
- Operating frequency range
- 17.3 - 18.4 GHz
- Output power (PSAT (typical)) 200 W
- 53 dBm
- Output power (PSAT (typical)) 300 W
- 54.8 dBm
- Output power (PSAT (typical)) 550 W
- 57.4 dBm
- Linear output power (PLINEAR*) 200 W
- 52 dBm
- Linear output power (PLINEAR*) 300 W
- 53.8 dBm
- Linear output power (PLINEAR*) 550 W
- 56.4 dBm
- Gain
- >75 dB
- Gain flatness over full band
- 4 dB p-p max
- Gain flatness over any 40 MHz
- 1 dB p-p max
- Gain variation over temperature
- ± 1 dB
- Attenuation adjustment range (BUC)
- 20 dB in 0.25 dB step
- Attenuation adjustment range (SSPA)
- 15 dB in 0.50 dB step
- Input VSWR
- ≤1.5:1
- Output VSWR
- ≤1.3:1
- Phase noise (BUC) at 100 Hz
- -65 dBc/Hz
- Phase noise (BUC) at 1kHz
- -75 dBc/Hz
- Phase noise (BUC) at 10 kHz
- -85 dBc
- Phase noise (BUC) at 100 kHz
- -95 dBc
- External ref. freq. & phase noise (BUC) at 100 Hz
- -135 dBc/Hz
- External ref. freq. & phase noise (BUC) at 1 kHz
- -155 dBc/Hz
- External ref. freq. & phase noise (BUC) at 10 kHz
- -160 dBc/Hz
- Spectral regrowth
- -25 dBc @ PLINEAR*
- Spurious
- -60 dBc max @ PLINEAR*
About
This is an indoor GaN DBS SSPA/BUC available in 200W, 300W, or 550W output power. It includes a 1RU 19” subrack power supply module with two hot-swappable AC/DC converters working in redundancy. Input voltage is 90-264 VAC, 50-60 Hz. Power consumption at PSAT is 85 ºC), reflected power, and high input-output power. Electrical specifications include an input frequency range of 950 MHz – 2050 MHz (BUC) / 17.3 – 18.4 GHz (SSPA) and an operating frequency range of 17.3 – 18.4 GHz. Output power (PSAT typical) is 53 dBm (200 W), 54.8 dBm (300 W), 57.4 dBm (550 W), and linear output power (PLINEAR*) is 52 dBm (200 W), 53.8 dBm (300 W), 56.4 dBm (550 W). Gain is >75 dB, gain flatness is 4 dB p-p max over full band and 1 dB p-p max over any 40 MHz, and gain variation over temperature is ± 1 dB. Attenuation adjustment range is 20 dB in 0.25 dB steps (BUC) and 15 dB in 0.50 dB steps (SSPA). Input VSWR is ≤1.5:1 and output VSWR is ≤1.3:1. Phase noise (BUC) is -65 dBc/Hz at 100 Hz, -75 dBc/Hz at 1kHz, -85 dBc at 10 kHz, -95 dBc at 100 kHz. External reference frequency and phase noise (BUC) are 10 MHz, -135 dBc/Hz at 100 Hz, -155 dBc/Hz at 1 kHz, -160 dBc/Hz at 10 kHz, 0 dBm ± 3 dB supplied via input L-band cable. Spectral regrowth is -25 dBc @ PLINEAR* and spurious is -60 dBc max @ PLINEAR*. Options include Ethernet port, redundant systems (1:1, 2:1, N:1), indoor controller, receive reject filter (external), harmonic filter (external), SNMP, high stability internal reference, air exhaust MEC interface, breaker panel, automatic control mode (AGC, ALC), pressure window, and output RF calibrated sample port. Accessories and spares include a set of fans and a power supply module.
