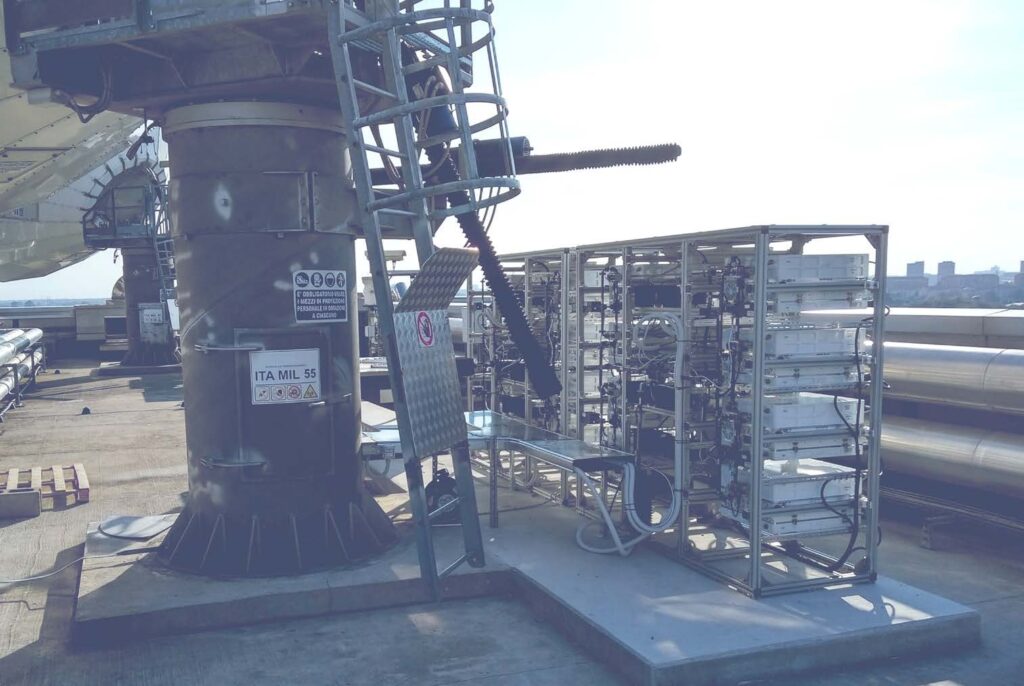

GaN DBS SSPA/BUC 200W Outdoor
TTI Norte
A 200W GaN-based Solid State Power Amplifier/Block Upconverter designed for outdoor broadcast SATCOM applications, offering high efficiency and linear power.
Typed specifications5 values
Discloses 1 of 10 fields engineers filter by in this category (category median 2).
- Frequency range
- 950–2 050 MHz product page 17 300–18 400 MHz
- Envelope (L×W×H)
- 400 x 274 x 220 mm product page
- Power consumption
- 200 W product page 200 W
Each value is typed with its unit and measurement condition and cites the datasheet page it was taken from. Nothing is guessed: a field that is absent here has not been published by the manufacturer. machine-extracted ✓ checked by NewSpace Market ✓ manufacturer confirmed by the manufacturer.
As published by the supplier26 lines, in the manufacturer's own wording
- Input frequency range (BUC)
- 950-2050 MHz
- Operating frequency range
- 17.3-18.4 GHz
- Output power (psat (typical))
- 200 W / 53 dBm
- Linear output power (P LINEAR*)
- 200 W / 52 dBm
- Gain
- >75 dB
- Gain flatness
- 4 dB p-p max over full band; 1 dB p-p max over any 40 MHz
- Gain variation over temperature
- ±1.5 dB over full operating range
- Attenuation adjustment range (BUC)
- 20 dB in 0.25 dB step
- Attenuation adjustment range (SSPA)
- 15 dB in 0.50 dB step
- Input vswr
- ≤1.5:1
- Output vswr
- ≤1.3:1
- Phase noise (BUC)
- -65 dBc/Hz at 100 Hz, -75 dBc/Hz at 1k Hz, -85 dBc at 10 kHz, -95 dBc at 100 kHz
- External ref. freq. & phase noise (BUC)
- 10 MHz, -135 dBc/Hz at 100 Hz, -155 dBc/Hz at 1 kHz, -160 dBc/Hz at 10 kHz, 0 dBm ±3 dB supplied via input L-band cable
- Spectral regrowth
- -25 dBc @ PLINEAR*
- Spurious
- -60 dBc max @ PLINEAR*
- Supply voltage
- 90 - 264 VAC, 50 - 60 Hz
- Dimensions (L x W x H)
- 400 x 274 x 220 mm
- RF input (L-Band + Ref. signal)
- N-type (f) (BUC) / SMA (f) (SSPA)
- RF output
- WR62 grooved
- RF sample
- SMA
- AC line
- 3-pin MIL circular
- M&c
- 19-pin MIL circular
- Remote control
- RS-485 / USB
- Operating temperature
- -30 ºC to +55 ºC
- Storage temperature
- -40 ºC to +85 ºC
- Humidity
- 100 % condensing
About
This GaN DBS SSPA/BUC is a 200W outdoor unit utilizing cutting-edge GaN technology for broadcast SATCOM. It features high efficiency, super high linear power, and multicarrier operation without memory effects. The design ensures superior lifetime and high MTBF. It includes a detachable power supply module and is weatherproof. The unit offers full M&C capability via RS-485/USB (ASCII) or optional Ethernet (Telnet, HTTP, SNMP), with discrete lines for mute/on/off functions and a summary alarm. Robust performance is guaranteed through individual unit testing over temperature and a built-in output isolator for protection against reflected power. Advanced packaging and cooling allow operation in tough environments. It has a built-in upconverter and high stability internal reference for BUC functionality. Options include an Ethernet port, extended temperature range, redundant systems, indoor controller, receive reject filter, harmonic filter, SNMP, high stability internal reference, automatic control modes (AGC, ALC), pressure window, and an output RF calibrated sample port.
Documentation
No public datasheet yet — request the datasheet / ICD from the supplier.
