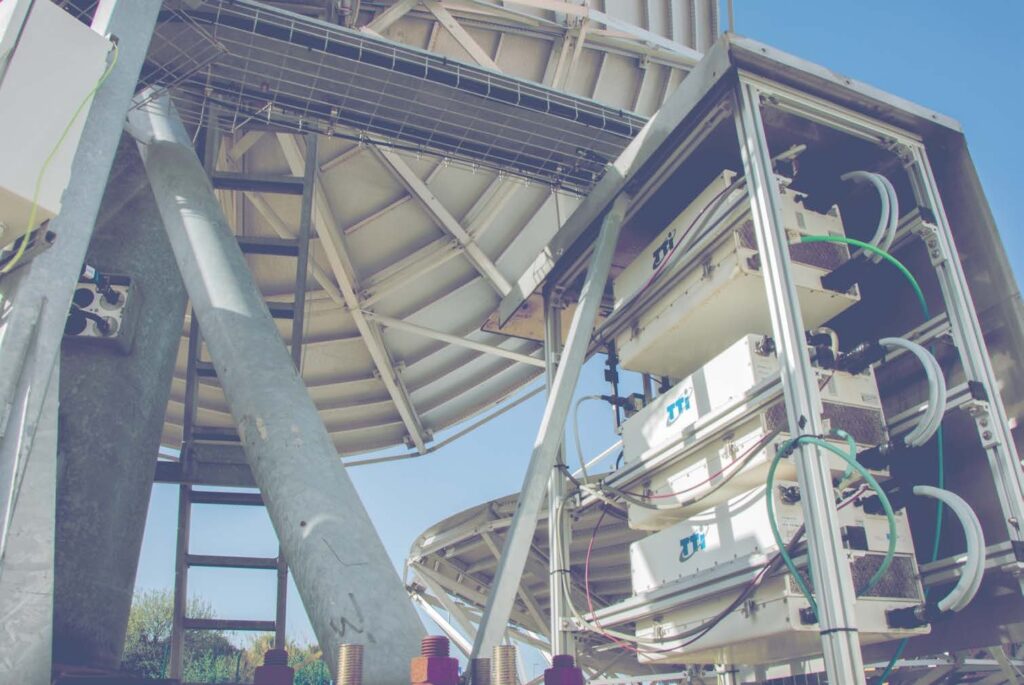

GaN Ku SSPA/BUC 150W/325W/600W 2:1 REDUNDANCY SYSTEM – Indoor
TTI Norte
An indoor 2:1 redundancy system for Ku-band satellite communication, featuring GaN SSPA/BUC transmitters with selectable power outputs of 150W, 325W, or 600W.
Typed specifications3 values
Discloses 0 of 10 fields engineers filter by in this category (category median 2).
- Envelope (L×W×H)
- 19” product page 19” Rack 42 U (H) x 1 m (D)
- Power consumption
- 150 W product page
Each value is typed with its unit and measurement condition and cites the datasheet page it was taken from. Nothing is guessed: a field that is absent here has not been published by the manufacturer. machine-extracted ✓ checked by NewSpace Market ✓ manufacturer confirmed by the manufacturer.
As published by the supplier7 lines, in the manufacturer's own wording
- Configuration
- 2:1 Redundancy System
- Transmitter type
- GaN Ku SSPA/BUC
- Power output
- 150 W/325 W/600 W
- Installation environment
- Indoor
- Controller sub-rack height
- 2U
- Controller sub-rack size
- 19”
- System rack dimensions
- 19” Rack 42 U (H) x 1 m (D)
About
This is an indoor 2:1 redundancy system designed for Ku-band satellite communication, utilizing GaN high-power SSPA/BUC transmitters. The system includes three GaN SSPA/BUC units, a redundancy waveguide assembly outdoor kit, waveguide sections, waveguide and coaxial loads, two dual waveguide switches, and a redundancy system controller. The controller is a standard indoor unit housed in a 2U-high 19” sub-rack, equipped with Ethernet and USB local ports, and dual internal power supplies. The system comes with comprehensive cabling, including AC cables, RF coaxial cables (SMA-SMA/SMA-N), and M&C cables. It also includes a breaker panel and is designed for rack mounting in a 19” rack (42U H x 1m D). Key features include robust redundancy performance, a web interface for remote control, manual and automatic operating modes, and user-friendly configuration/operation.
Documentation
No public datasheet yet — request the datasheet / ICD from the supplier.
