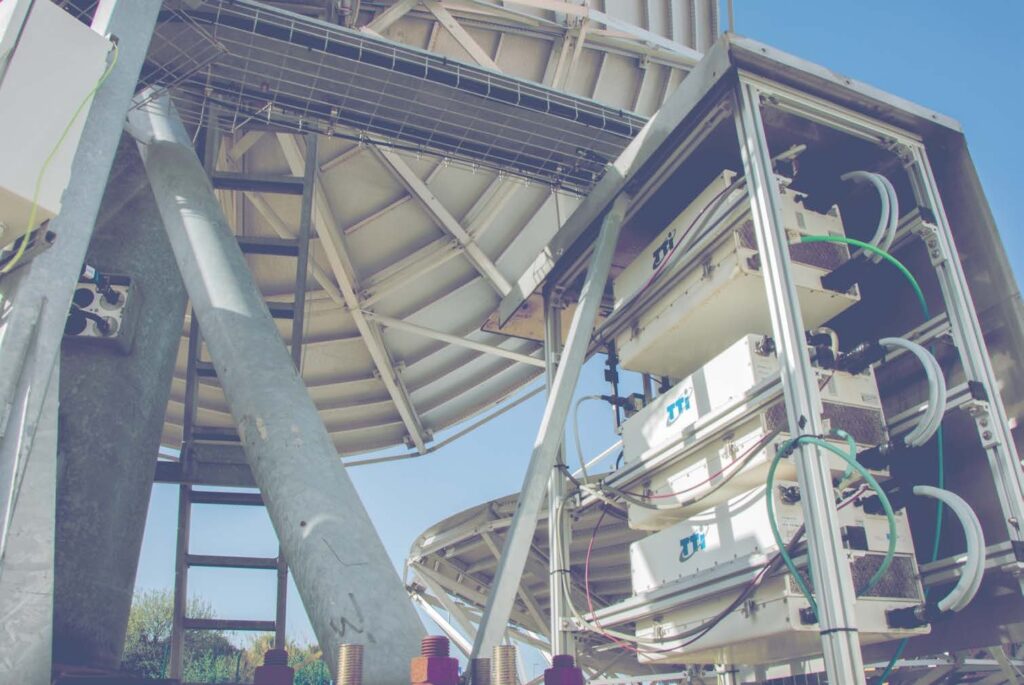

GaN Ku SSPA/BUC 150W/325W/600W STANDALONE – Indoor
TTI Norte
An indoor standalone GaN Ku-band Solid State Power Amplifier/Block Upconverter (SSPA/BUC) available in 150W, 325W, and 600W output power configurations.
Typed specifications3 values
Discloses 0 of 10 fields engineers filter by in this category (category median 2).
- Mass
- 45 kg product page
- Envelope (L×W×H)
- 483 x 266 x 601 mm (including handles) - RF unit 6RU panel height product page
- Supply voltage
- 90–264 V product page
Each value is typed with its unit and measurement condition and cites the datasheet page it was taken from. Nothing is guessed: a field that is absent here has not been published by the manufacturer. machine-extracted ✓ checked by NewSpace Market ✓ manufacturer confirmed by the manufacturer.
As published by the supplier21 lines, in the manufacturer's own wording
- Input frequency range (BUC)
- (1) 950-1700 MHz (2) 950-1450 MHz
- Operating frequency range
- (1) 13.75-14.50 GHz, LO 12.80 GHz (2) 12.75-13.25 GHz, LO 11.80 GHz
- Output power (psat (typical))
- 150 W / 325 W / 600 W
- Linear output power (PLINEAR*)
- 150 W / 325 W / 600 W
- Gain
- >65 dB (SSPA); >70 dB (BUC)
- Gain flatness
- 3 dB p-p max over full band; 1 dB p-p max over any 40 MHz
- Gain variation over temperature
- ± 1 dB over full operating range
- Attenuation adjustment range (BUC)
- 25 dB 0.25 dB step
- Attenuation adjustment range (SSPA)
- 25 dB 0.10 dB step
- Input vswr
- ≤1.5:1
- Output vswr
- ≤1.3:1
- Phase noise (BUC)
- -65 dBc/Hz at 100 Hz, -85 dBc/Hz at 1 kHz, -90 dBc/Hz at 10 kHz, -95 dBc/Hz at 100 kHz
- External ref. freq. & phase noise (BUC)
- 10 MHz, 0 dBm ±5 dB (TX IF port multiplexed), -135 dBc/Hz at 100 Hz, -155 dBc/Hz at 1 kHz,-160 dBc/Hz at 10 kHz
- Spectral regrowth
- -25 dBc @ PLINEAR*
- Spurious
- -60 dBc max @ PLINEAR*
- Supply voltage
- 90-264 VAC, 50-60 Hz
- Power consumption @ psat
- 680 W / 1400 W / 2600 W
- Dimensions (W x H x D)
- 483 x 266 x 601 mm (including handles) - RF unit 6RU panel height
- Mass
- 45 Kg
- Operating temperature
- 0 ºC to +50 ºC
- Storage temperature
- -40 ºC to +85 ºC
About
This indoor standalone GaN Ku-band SSPA/BUC offers output power options of 150W, 325W, and 600W. It supports an input frequency range of 950-1700 MHz or 950-1450 MHz for the BUC, and an operating frequency range of 13.75-14.50 GHz (LO 12.80 GHz) or 12.75-13.25 GHz (LO 11.80 GHz). The unit provides a gain of >65 dB for SSPA and >70 dB for BUC, with attenuation adjustment ranges of 25 dB in 0.25 dB steps for BUC and 25 dB in 0.10 dB steps for SSPA. It features remote control via RS-485 or USB and monitors parameters such as forward/reverse output power, input power, and temperature. Internal self-protection includes temperature, reflected power, and high input-output power. The power supply module is a 1RU 19” subrack with hot-swappable AC/DC converters, supporting 90-264 VAC input. The unit has dimensions of 483 x 266 x 601 mm (including handles) and weighs 45 Kg. Operating temperature is 0 ºC to +50 ºC. Options include Ethernet port, redundant systems (1:1, 2:1, N:1), indoor controller, receive reject filter, harmonic filter, SNMP, high stability internal reference, air exhaust MEC interface, breaker panel, automatic control modes (AGC, ALC), pressure window, and output RF calibrated sample port.
Documentation
No public datasheet yet — request the datasheet / ICD from the supplier.
