Personal Emergency Rescue Terminal Alarm-01
Guodian Gaoke (Tianqi Satellite)
Personal Tianqi satellite distress beacon: 72h battery, one-touch activation, IP67, 125×50×30 mm.
Key figurescomparable across the catalogue
- Mass
- 0.2 kg
- Power
- 4 W
- Largest dimension
- 125 mm
Normalised to common units so this product can be compared with others in its category. The supplier's own wording is below.
As published by the supplier
- Tianqi communication
- Short messages with time and position
- Frequency band
- UHF
- TX power
- ≥30 dBm
- GNSS systems
- BDS/GPS dual-constellation
- GNSS bands
- GPS L1 1575.42 MHz; BDS B1 1561.098 MHz
- GNSS acquisition sensitivity
- -147 dBm
- GNSS tracking sensitivity
- -162 dBm
- Antenna type
- Tape measure antenna
- GNSS antenna
- Internal ceramic antenna
- Battery
- 6V/1400mAh primary lithium-manganese
- Operating time
- 72 h
- TX power consumption
- ≤4 W
- Standby power
- ≤0.01 W
- Operating temperature
- -20°C ~ +55°C
- IP rating
- IP67
- Dimensions
- 125×50×30 mm
- Mass
- 200 g
About

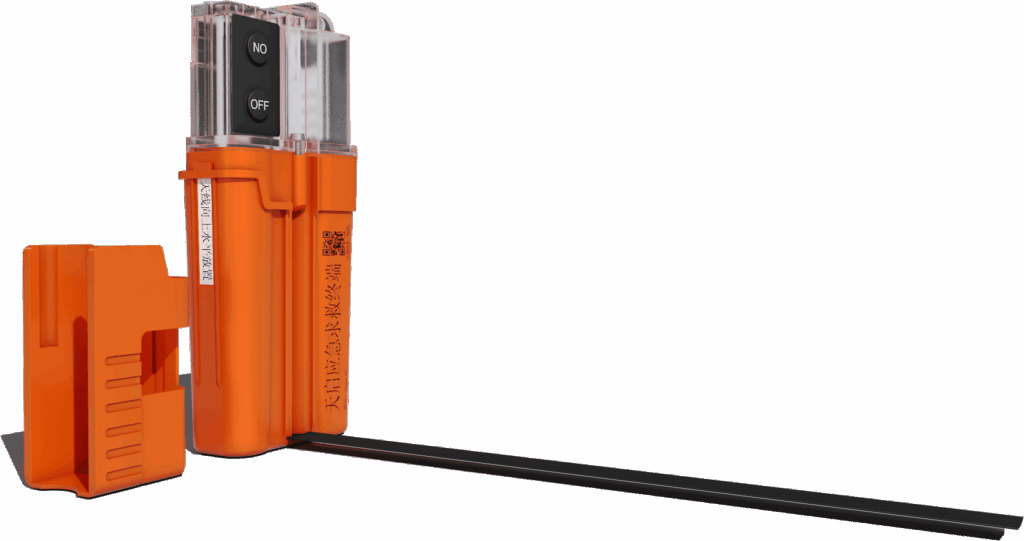

The Alarm-01 is a compact personal emergency rescue terminal that leverages the Tianqi satellite constellation to transmit distress messages containing time and GNSS location to emergency contacts and rescue authorities — even in areas with no cellular network coverage.
The device features dual BDS/GPS positioning for accurate location, one-touch distress signal activation, and automatic water-immersion alarm triggered by a water-contact sensor. A single primary lithium-manganese battery provides 72 hours of operational life. Rescue information can be pushed to up to 3 designated emergency contacts. IP67 waterproofing and a lightweight 200g form factor make it suitable for attachment to a life jacket, climbing harness, or safety vest. Target applications: natural disaster victims, offshore maritime crew, outdoor adventurers, and remote-site workers in areas without terrestrial network coverage.
Documentation
No public datasheet yet — request the datasheet / ICD from the supplier.
