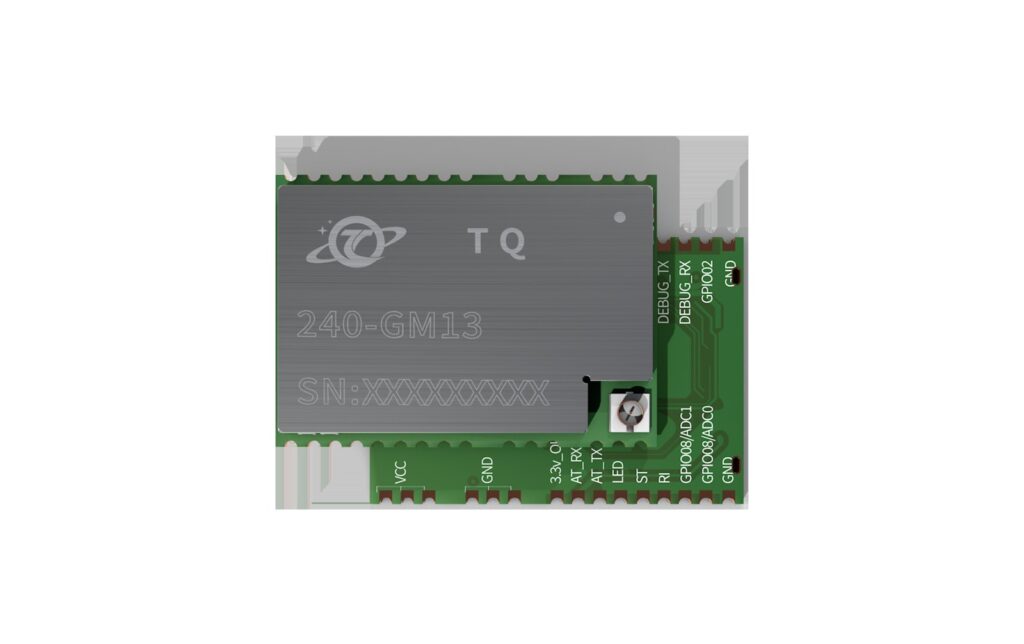

240-GM13 Communication Module
Guodian Gaoke (Tianqi Satellite)
The 240-GM13 module is a dedicated satellite IoT communication module that supports short message communication with the in-orbit Tianqi constellation. It integrates low-power algorithms, data storage management, and adaptive channel selection.
Technical specifications
- Operating voltage
- 3.3~5.3 V
- Initial frequency offset
- -5~+5KHz
- Transmit duty cycle
- 50%, max continuous transmission 10 s
- Transmit band
- 240–243 MHz, set by channel plan (no user action)
- Receive band
- 318-320 MHz
- Transmit power
- 30.4–35.3 dBm, max transmit power scales with supply voltage
- Transmit mode current
- 1560 mA, depends on antenna matching
- Receive mode current
- 24–26 mA (MCU running, RF on)
- Standby receive current
- 13–14 mA (MCU sleeping, RF on)
- Active mode current
- 11–12 mA (MCU running, RF off)
- Sleep mode current
- 15–18 µA (MCU sleeping, RF off)
- Receive sensitivity
- -125~-127 dBm
- Data rate
- 488–2734 bps, set by channel plan
- Data storage
- 480 frames, max 120 bytes each
- Package type
- LCC
- Communication interface
- TTL serial (3.3 V), configurable, default 115200 bps
- Measured voltage range
- 0.1–1.1 V voltage sensing
- Dimensions
- 35*25*3.5 mm
- Dimensional tolerance
- GB/T 1804 class C tolerance
About
The 240-GM13 module is a specialized satellite IoT communication module designed for short message communication with the in-orbit Tianqi constellation. It incorporates low-power algorithms, data storage management, and an adaptive channel selection algorithm. This allows the module to communicate reliably with satellites opportunistically, significantly reducing power consumption during communication. The module is particularly suitable for IoT applications in areas without terrestrial mobile networks. Its features include low power consumption, efficient data storage, and intelligent channel selection for robust satellite communication. The module operates with a working voltage of 3.3~5.3V, has a transmit frequency band of 240-243MHz and a receive frequency band of 318-320MHz. It supports a communication rate of 488~2734bps and can store 480 frames of data, with each frame up to 120 bytes. The module uses an LCC package and communicates via a TTL serial port (3.3V) with a default baud rate of 115200bps. It also supports voltage acquisition from 0.1-1.1V.
Documentation
No public datasheet yet — request the datasheet / ICD from the supplier.
