Refrigerated Container Monitoring Terminal
Guodian Gaoke (Tianqi Satellite)
Dual Tianqi+4G reefer container monitoring terminal: cold chain tracking, remote control, IP-rated.
Key figurescomparable across the catalogue
- Largest dimension
- 182 mm
- Design life
- 5 years
Normalised to common units so this product can be compared with others in its category. The supplier's own wording is below.
As published by the supplier
- Network
- Tianqi satellite + 4G global cellular
- Communication protocol
- MQTT
- Positioning
- Satellite GNSS + LBS
- Bluetooth
- 5.1
- Supply voltage
- AC/DC 24V
- Operating temperature
- -20°C ~ +60°C
- Service life
- >5 years
- Housing
- High-strength PC+ABS engineering plastic
- Dimensions
- 182×80×37 mm
- Compatible reefer brands
- CARRIER, DAIKIN, THERMOKING, STARCOOL
About

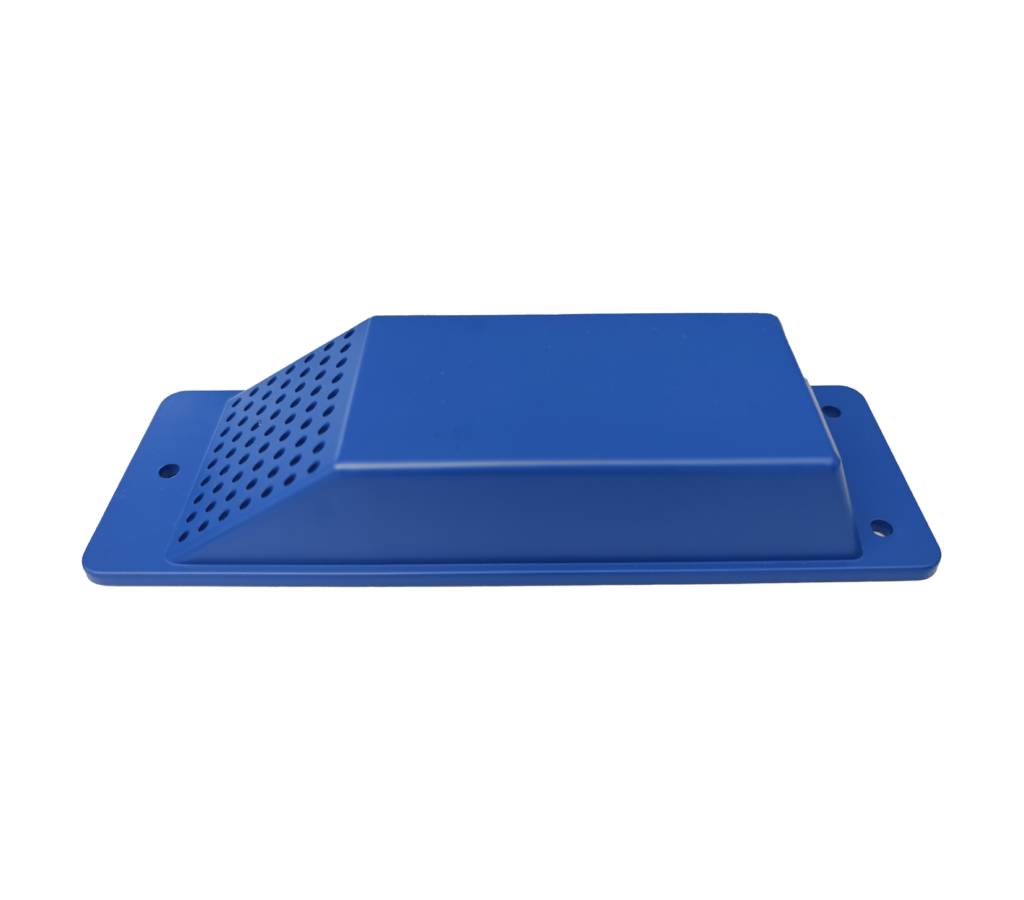

The Guodian Gaoke refrigerated container monitoring terminal is a dual-mode Tianqi satellite + 4G cellular solution for reefer container cold chain management and remote monitoring. Installed inside refrigerated container control boxes, it supports compatibility with major reefer brands: CARRIER, DAIKIN, THERMOKING, and STARCOOL.
The terminal monitors set temperature, supply air temperature, return air temperature, ambient temperature, voltage, and current — and transmits this data via 4G when available, automatically switching to Tianqi satellite communication in areas without terrestrial network coverage (open ocean, remote ports). Features BD/GPS dual positioning, Bluetooth 5.1, remote temperature setting, on/off control, fault code download, and historical temperature curve visualization via web portal.
Documentation
No public datasheet yet — request the datasheet / ICD from the supplier.
