Tianqi Automatic Weather Monitoring Station
Guodian Gaoke (Tianqi Satellite)
Solar-powered 7-parameter weather station with Tianqi satellite+4G dual-mode comms — no cellular needed.
Key figurescomparable across the catalogue
- Power
- 100 W
Normalised to common units so this product can be compared with others in its category. The supplier's own wording is below.
As published by the supplier
- PM2.5 range
- 0~1000 μg/m³, resolution 0.1 μg/m³, accuracy ±15%
- PM10 range
- 0~2000 μg/m³
- Wind direction
- 0~360°, resolution ±1°
- Wind speed
- 0~70 m/s, resolution ±0.1 m/s
- Temperature
- -40~+60°C, accuracy ±0.5°C
- Humidity
- 0~95% RH, accuracy ±3% RH
- Rainfall
- 0~999.9 mm, resolution 0.2 mm, accuracy ±4%, max intensity 4 mm/min
- Pressure
- 500~1100 hPa, resolution 0.1 hPa, accuracy ±0.3 hPa
- Tianqi message size
- Max 120 bytes per message
- Tianqi frequency band
- UHF
- Cellular
- 2G/3G/4G all-network
- Solar power
- 100W solar panel + 65Ah battery
- Mounting
- 3-meter pole, lightning protection compliant
About

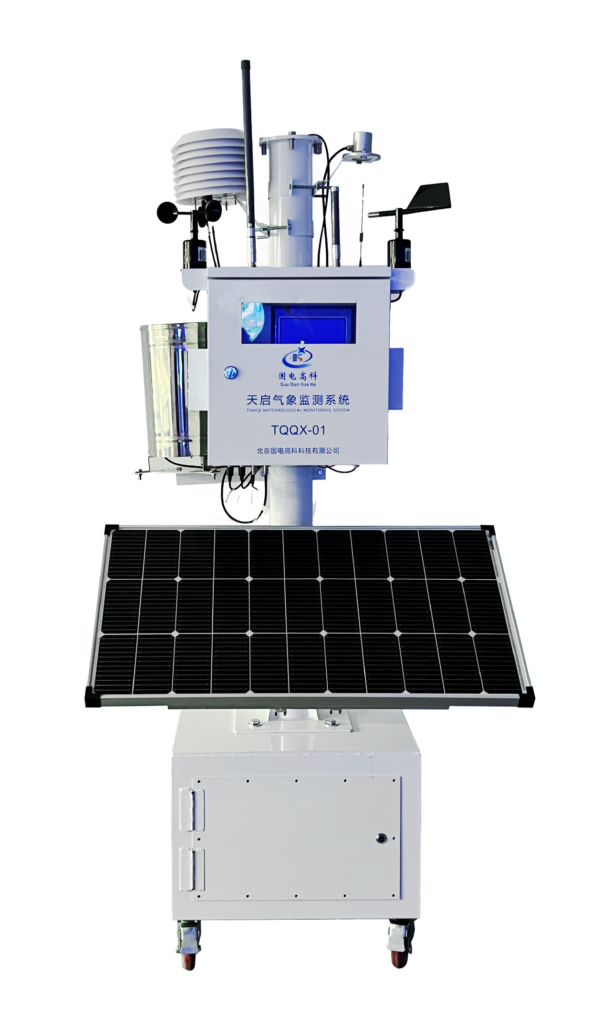

The Tianqi Automatic Weather Monitoring Station is a solar-powered, off-grid meteorological station combining Tianqi satellite and 4G cellular dual-mode data transmission. It monitors seven meteorological parameters: wind speed, wind direction, rainfall, air temperature/humidity, PM2.5/PM10 particulate matter, and atmospheric pressure.
The Tianqi+4G dual-mode communication eliminates monitoring blind spots in areas with no or weak cellular signal, or during natural disasters when terrestrial networks are disrupted. Powered by a 100W solar panel with 65Ah battery for fully off-grid deployment. Includes a 3-meter pole mount, weatherproof sensor enclosure, and data logger with 1-year local storage. Applications: scenic area weather safety monitoring, mountain road hazard monitoring, forest fire prevention, desert scientific research, remote reservoir monitoring, and urban emergency backup stations.
Documentation
No public datasheet yet — request the datasheet / ICD from the supplier.
