HDS6605 6U OpenVPX Multiprocessing Board
Mercury Systems
The EnsembleSeries™ HDS6605 is a 6U OpenVPX multiprocessor board powered by Intel® Xeon® Scalable processor, offering 40 Gb/s or 100 Gb/s Ethernet switch fabrics for extreme environmental protection and SOSA-alignment.
Typed specifications38 values
Discloses 8 of 13 fields engineers filter by in this category (category median 5).
- Processor
- Intel Xeon SP 6238T 22-core server-class processor with AVX512 acceleration datasheet p.2 Intel Xeon SP 6238T 1.9 GHz 22-core server-class processor with AVX512 acceleration default processor
- CPU clock
- 1 900 MHz datasheet p.2 1 900 MHz Intel Xeon SP 6238T
- RAM
- 196 608 MB datasheet p.2 196 608 MB max · Up to 192 GB DDR4-2666 SDRAM with ECC
- Mass storage
- 256 GB datasheet p.2 256 GB NVMe flash (option: NVMe flash depopulated)
- Operating system
- Linux datasheet p.3 Linux Linux development and run-time environment
- Data interface
- Ethernet datasheet p.2 SATA backplane SATA interface for alternate boot or storage paths | USB backplane USB interface for alternate boot or storage paths | Ethernet external | PCIe full x16 or dual x8 PCIe Gen3 on P2 and P5 expansion planes +15
- Board format
- 6U VPX 6U OpenVPX, 1.0" slot pitch, VITA 65/48/46 · datasheet p.2
- Radiation and fault mitigation
- EDAC / ECC on RAM DDR4-2666 SDRAM with ECC · datasheet p.2 hardware watchdog Watchdog timer to support interrupt or reset | hardware watchdog
- Cores
- 22 Intel Xeon SP 6238T, 2 threads per core · datasheet p.2
- RAM type
- DDR4 DDR4-2666 SDRAM with ECC · datasheet p.2
- Program / boot memory
- 8 MB BIOS MSPI flash, dual 8 MB partitions · datasheet p.2
- Data interface speed
- 100 Mbps max · Up to 100 GB Ethernet on data plane (printed as GB) · datasheet p.2
Each value is typed with its unit and measurement condition and cites the datasheet page it was taken from. Nothing is guessed: a field that is absent here has not been published by the manufacturer. machine-extracted ✓ checked by NewSpace Market ✓ manufacturer confirmed by the manufacturer.
As published by the supplier6 lines, in the manufacturer's own wording
- CPU
- Intel Xeon Scalable server-class CPU, 1.9 GHz, 22-core
- SDRAM per blade
- Up to 192 GB DDR4-2666
- Ethernet high speed switch fabrics
- Up to 100 Gb/s
- Co-processing and I/O expansion plane communications
- Gen3 PCIe
- Environmental protection
- MOTS+
- Compliance
- SOSA aligned and VITA 65 compliant
About

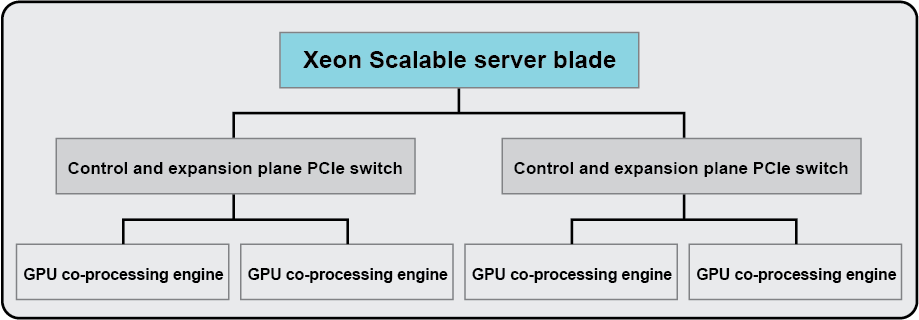

The HDS6605 is the industry’s first OpenVPX multiprocessor board powered by Intel 2nd generation Xeon Scalable processors with built-in AI acceleration, delivering data center processing capability to the tactical edge. This board provides extreme processing performance with a 22-core Intel Xeon Scalable processor featuring Deep Learning Boost, extending Intel’s Advanced Vector Extensions-512 (AVX-512) to accelerate inference and big data processing. New embedded Vector Neural Network Instructions (VNNI) accelerators speed up dense computations for convolutional and deep neural networks, offering up to a 14x improvement in inference performance. The HDS6605 is a cornerstone for composable high-performance embedded edge computing (HPEEC) solutions, combining with other EnsembleSeries modules and interconnected with wideband, low-latency PCIe switch fabrics to leverage data center power in harsh, SWaP-constrained environments. It is based on open architecture standards like SOSA for interoperability, scalability, and reuse, driving affordability and lower program risk by evolving with Intel’s technology roadmap and commercial data center hardware. The board utilizes proven liquid and air cooling, rugged packaging, and high-speed in-system switch fabric interconnect technologies, available with 100 Gbps in-chassis fabrics and MOTS+ technologies for reliable processing in extreme conditions.
Documentation
- Datasheet-HDS6605-6U-OpenVPX-HPEC-Processing-ES-Board.pdf PDF source: www.mrcy.com ↗
- ProductBrief-6U-OpenVPX-HPEC-Processing-BuiltSECURE-ES-Board.pdf PDF source: www.mrcy.com ↗
Need the full ICD, test reports or a specific revision? Ask the supplier directly.
