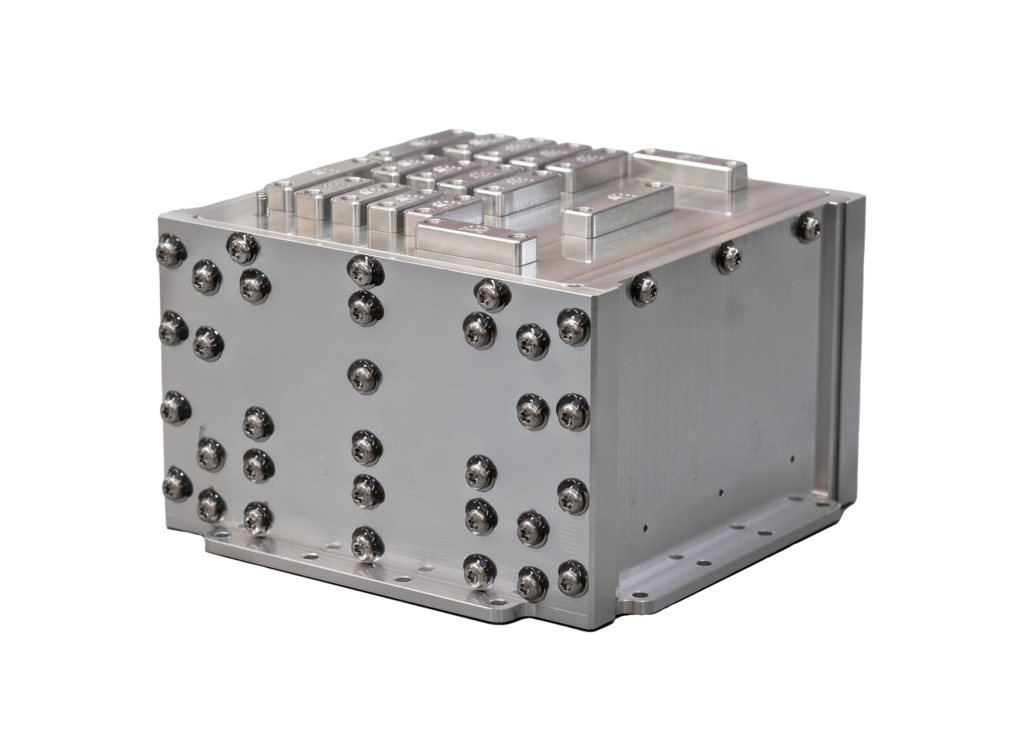

Unibap iX10 Space Computer
Unibap Space Solutions AB
Unibap's most powerful onboard space computer, combining CPU, GPU, and VPU processing with extensive I/O connectivity for demanding AI and edge-computing missions.
Typed specifications20 values
Discloses 6 of 13 fields engineers filter by in this category (category median 5).
- Processor
- AMD Ryzen V1000 CPU datasheet p.2
- Mass
- 1 400 g product page 1 600 g without enclosure
- Envelope (L×W×H)
- 125 (W) x 125 (H) x 75 (D) [mm] datasheet p.2
- RAM
- 24 576 MB datasheet p.2
- Mass storage
- 4 096 GB datasheet p.2 128 GB
- Operating system
- Linux datasheet p.2
- Supply voltage
- 12 V datasheet p.2
- Power consumption
- 20 W min · Depending on processing and storage load · datasheet p.2 40 W max · Depending on processing and storage load
- Data interface
- CAN datasheet p.2 Ethernet | I2C | RS-422 | RS-485 +2
- Operating temperature
- -20 °C min · datasheet p.2 55 °C max
Each value is typed with its unit and measurement condition and cites the datasheet page it was taken from. Nothing is guessed: a field that is absent here has not been published by the manufacturer. machine-extracted ✓ checked by NewSpace Market ✓ manufacturer confirmed by the manufacturer.
As published by the supplier16 lines, in the manufacturer's own wording
- Cpu
- AMD Ryzen V1000
- Gpu
- 8 x AMD Radeon
- Vpu (iX10-101)
- Intel Movidius Myriad X
- Vpu (iX10-102)
- Hailo-8
- Ram
- 24 GB DDR4 ECC
- Storage
- 2 x 4 TB NVMe SSD, 1 x 128 GB SATA SSD
- Dimensions
- 125 x 125 x 75 mm
- Mass
- 1400 g
- Enclosure
- 5 mm aluminum
- Power consumption
- <40 W (load-dependent)
- I/o interfaces
- 2x Camera Link Base, 1x CAN 2.0/FD, 2x 10 GbE Ethernet, 2x I2C, 1x RS232, 4x RS485/422, 2x SpaceWire, 2x USB 3.0/2.0, 1x Stepper Motor Control, 8x ADC inputs, proprietary PLET PPS
- Operating temperature
- -20 degC to 55 degC
- Radiation tolerance (TID)
- >20 krad with enclosure
- Technology readiness level
- TRL 9
- Production status
- Serial production
- Expected first launch
- Q1 2025
About
The iX10 is a space-qualified onboard computing platform built for satellite and spacecraft applications, offering market-leading input/output connectivity, high-performance heterogeneous processing (CPU/GPU/VPU), and a user-focused Linux-based (Unibap SCOS) computing environment. It is designed to run AI inference, image processing, and autonomous decision-making workloads directly on board, reducing dependence on ground-based data processing. The iX10 is offered in two variants distinguished by their vision-processing unit: the iX10-101 uses an Intel Movidius Myriad X VPU, while the iX10-102 uses a Hailo-8 AI accelerator. The platform is in serial production, rated Technology Readiness Level 9, and has an expected first launch in Q1 2025.
Documentation
Need the full ICD, test reports or a specific revision? Ask the supplier directly.
