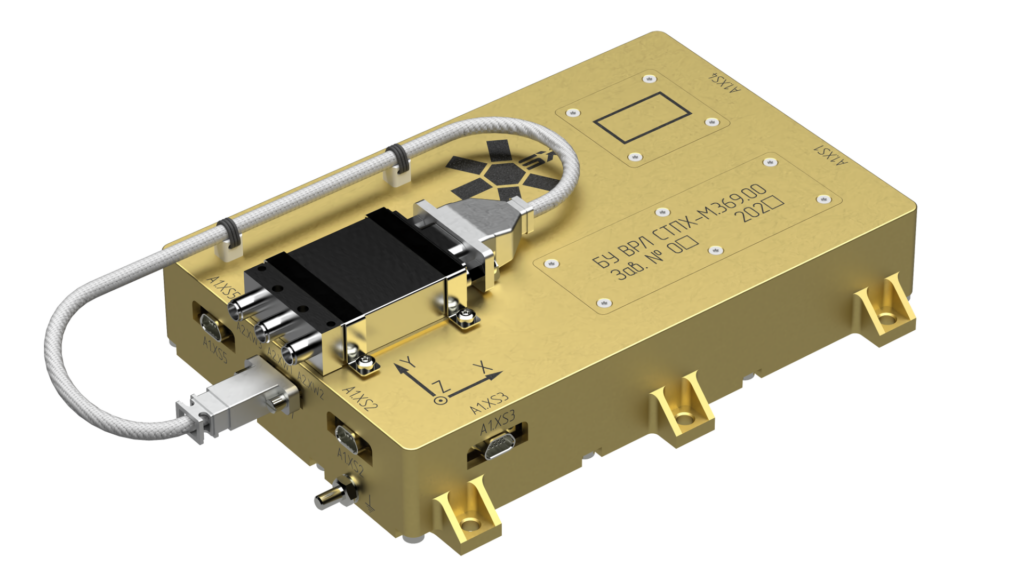

High-speed radio line control unit
SPUTNIX
A power and control interface converter unit that interfaces with high-speed transmitters of target information.
Key figurescomparable across the catalogue
- Mass
- 0.75 kg
- Power
- 11 W
- Largest dimension
- 171 mm
Normalised to common units so this product can be compared with others in its category. The supplier's own wording is below.
As published by the supplier
- Power supply
- 22...33 V, galvanic isolation 500 V
- Control interface
- CAN, duplicated
- Output power parameters
- +11...+16.5 V, 30 W
- Parameters of the control output interface
- x4 RS-422
- Dimensions
- 171 x 120 x 46 mm
- Mass
- 750 g
About
The control unit is designed to convert the input power supply and control interfaces in order to interact with high-speed transmitters of target information (e.g. the X-band High Data Rate Transmitter).
Documentation
No public datasheet yet — request the datasheet / ICD from the supplier.
