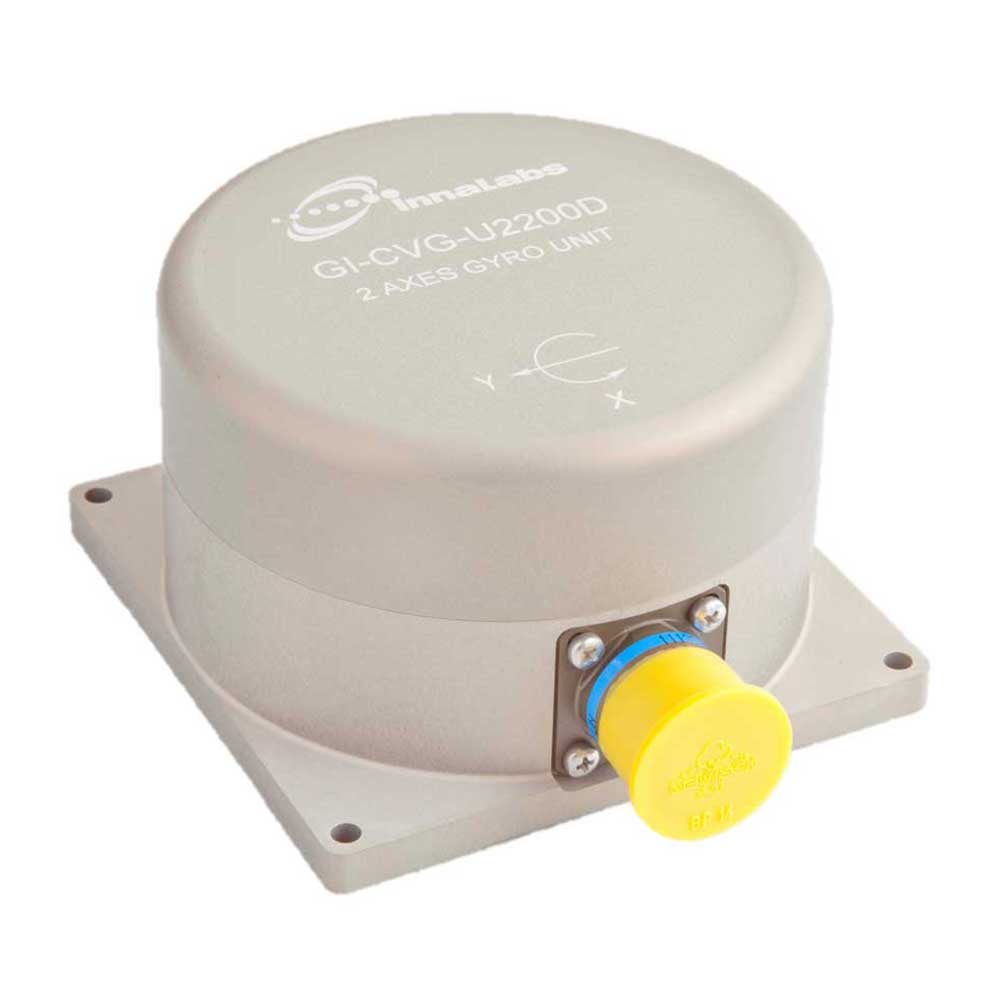

GI-CVG-U-Series 1 & 2-Axis Gyroscope
Innalabs
1 or 2-axis tactical CVG, <10°/hr full-temp bias stability, <0.22°/hr in-run, RS-422 or analog output.
Typed specifications6 values
Discloses 2 of 11 fields engineers filter by in this category (category median 3).
- Mass
- 1 100 g product page 1 200 g
- Bias instability
- 0.22 °/h max · product page 10 °/h max | 50 °/h max
- Envelope (L×W×H)
- H68 × L107 × W107 mm product page
Each value is typed with its unit and measurement condition and cites the datasheet page it was taken from. Nothing is guessed: a field that is absent here has not been published by the manufacturer. machine-extracted ✓ checked by NewSpace Market ✓ manufacturer confirmed by the manufacturer.
As published by the supplier14 lines, in the manufacturer's own wording
- In-run bias stability (room temp, 1σ) – tactical
- <0.22 deg/hr
- Bias stability – tactical (full temp, 1σ)
- <10 deg/hr
- Bias stability – industrial (full temp, 1σ)
- <50 deg/hr
- Scale factor error (full temp, 1σ)
- <3,500 ppm
- Angular random walk
- 0.01 deg/√hr typical
- Bandwidth (-3dB)
- ≥300 Hz
- Interface
- Analog or Digital RS-422
- Start-up time
- 1 sec typical
- MTBF
- >500,000 hours
- Mass (1-axis)
- 1.1 kg
- Mass (2-axis)
- 1.2 kg
- Dimensions
- H68 × L107 × W107 mm
- Built-in self test
- Yes
- Number of axes
- 1 or 2
About
The InnaLabs GI-CVG-U-Series (U1100A/D, U1200A/D, U2100A/D, U2200A/D) are industrial and tactical-grade Coriolis Vibratory Gyroscopes delivering less than 10°/hr bias stability over the full temperature range. These solid-state devices feature closed-loop control electronics, high dynamic range, low noise, and very high MTBF ratings exceeding 500,000 hours. Available in 1-axis or 2-axis configurations with analog or digital RS-422 output. The tactical-grade models achieve in-run bias stability below 0.22°/hr at room temperature. 1-second startup time and built-in self-test capability. Dimensions 68 × 107 × 107 mm, weight 1.1–1.2 kg. Designed for platform stabilization and navigation.
Documentation
No public datasheet yet — request the datasheet / ICD from the supplier.
