GNSS Active Patch Antenna
ISISPACE Group
Compact, flight-proven active GNSS patch antenna for GPS-L1 / GALILEO-E1 positioning on CubeSats, mounted on Rogers PCB for minimal RF losses.
Typed specifications7 values
Discloses 3 of 10 fields engineers filter by in this category (category median 3).
- Peak gain
- 34.5 dBi product page
- Mass
- 20 g max · product page
- Envelope (L×W×H)
- 58 x 58 x 9.7 mm product page
- Antenna type
- patch product page
- Supply voltage
- 3–5 V product page
- Operating temperature
- -20 °C product page
- Connector
- MMCX (RF and power line combined, female) product page
Each value is typed with its unit and measurement condition and cites the datasheet page it was taken from. Nothing is guessed: a field that is absent here has not been published by the manufacturer. machine-extracted ✓ checked by NewSpace Market ✓ manufacturer confirmed by the manufacturer.
As published by the supplier13 lines, in the manufacturer's own wording
- Mass
- < 20 g
- Dimensions
- 58 x 58 x 9.7 mm
- Operating temperature
- -20°C to +60°C
- Frequency range
- 1572 – 1578 MHz (GPS L1 / GALILEO E1)
- Signal gain (active circuitry)
- 34.5 dB
- Antenna peak gain
- < 5.2 dBic (approx.) at 1575 MHz
- Axial ratio
- < 3 dB
- Return loss
- > 15 dB
- Bandwidth
- 6 MHz
- Polarisation
- RHCP
- Connector type
- MMCX (RF and power line combined, female)
- Supply voltage
- 3 – 5 VDC
- Current consumption
- < 10 mA
About

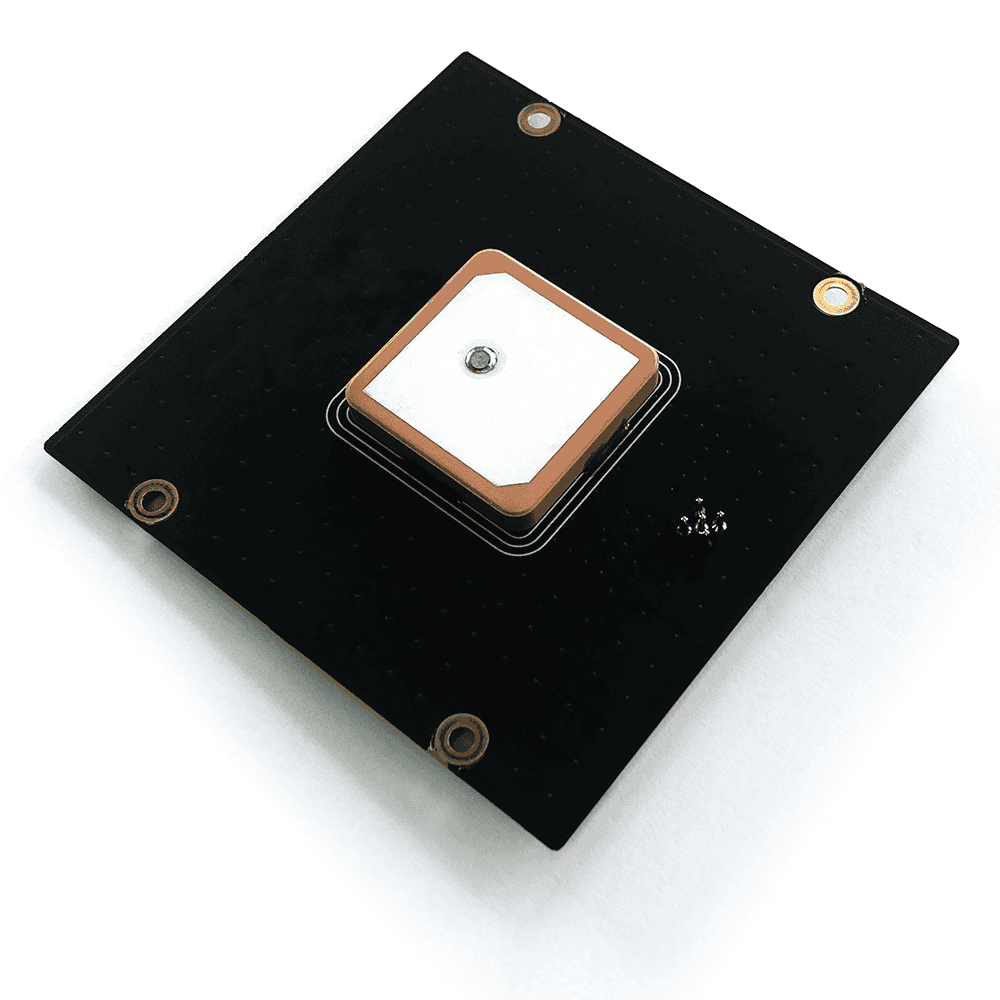

The ISISPACE GNSS Active Patch Antenna combines compact design, low mass, and flight-proven reliability. Perfectly engineered for GPS-L1 (1575 MHz) and GALILEO-E1, it ensures pinpoint positioning and integrates seamlessly with ISISPACE structures.

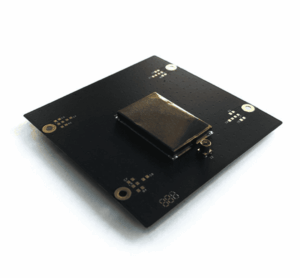

The antenna is mounted onto a Rogers PCB, ideal for high-frequency RF circuitry, ensuring lower losses than traditional FR-4 PCBs. It features integrated SAW filters and an LNA for active amplification, providing a total signal gain of 34.5 dB. The antenna is qualified for up to 15g quasi-static acceleration in all axes, making it suitable for launch environments.
A single MMCX connector is used for both power supply and RF output, simplifying satellite integration. Flight heritage since initial CubeSat deployments.
Documentation
No public datasheet yet — request the datasheet / ICD from the supplier.
