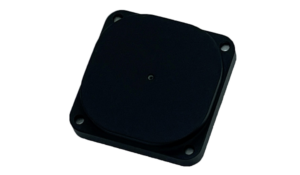

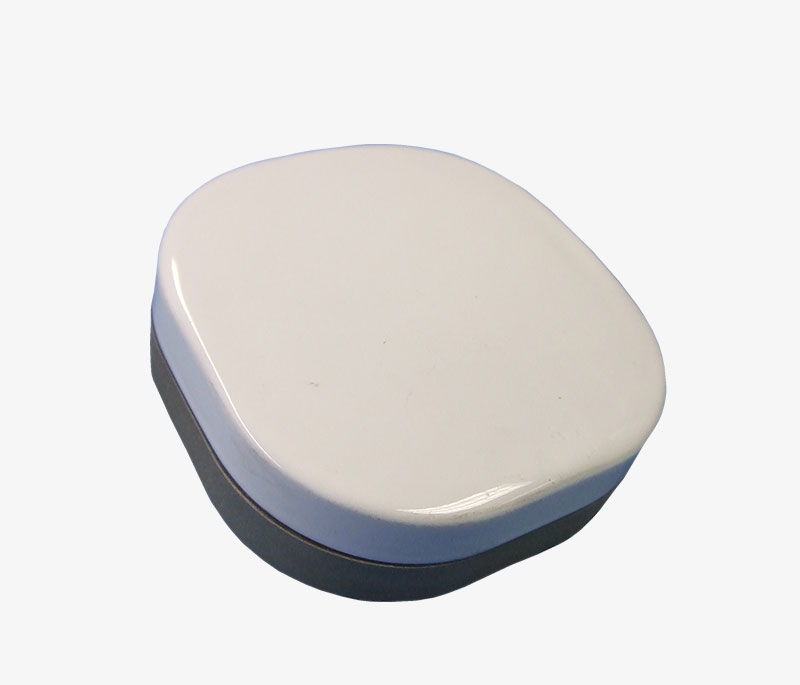

ANT-GPS Series
AAC Clyde Space
The ANT-GPS Series is a range of GNSS antennas designed for satellite applications, providing positioning, navigation, and timing capabilities.
Typed specifications30 values
Discloses 7 of 10 fields engineers filter by in this category (category median 3).
- Frequency band
- L datasheet p.1 GNSS L1/L2/L5 L1, 1575.42 ±12 MHz
- Peak gain
- -2.3 dBi datasheet p.2
- Mass
- 80 g datasheet p.2
- Frequency range
- 1 575.42 MHz nom. · datasheet p.2 1 575.42 MHz L1 band | 1 575.42 MHz L1, ±12 MHz
- Envelope (L×W×H)
- 21.03 mm x 50.8 mm x 50.8 mm datasheet p.2
- Polarization
- RHCP datasheet p.2
- Antenna type
- patch datasheet p.1 patch space-qualified L-band patch antenna
- Supply voltage
- 3.3 V product page
- Operating temperature
- -55–85 °C datasheet p.2
- Radiation tolerance (TID)
- 10 krad product page
- TRL
- 9 product page
- Passive or active
- active with LNA Built in 33dB LNA · datasheet p.1
- RF connector
- SMA Female · datasheet p.2
- Connector
- SMA Female datasheet p.2
- Survival temperature
- -55 °C product page
- Random vibration
- 30 g RMS min · datasheet p.2
- Flight heritage
- 15 years of successful on-orbit flight operations heritage on our AAC SpaceQuest spacecraft as well as being deployed for a global clientele. More than 18 in Operation on Orbit datasheet p.1
- Satellite class
- CubeSat can also be mounted recessed on CubeSats · datasheet p.1 microsat 10-100 kg ideal for MicroSats and SmallSats | microsat 10-100 kg | smallsat 100-500 kg
- Missions flown
- 18 datasheet p.1 18 min · more than 18 in Operation on Orbit
- Axial ratio
- 2 dB datasheet p.2
- VSWR, max
- 2 datasheet p.2 2 max · <2.0:1
Each value is typed with its unit and measurement condition and cites the datasheet page it was taken from. Nothing is guessed: a field that is absent here has not been published by the manufacturer. machine-extracted ✓ checked by NewSpace Market ✓ manufacturer confirmed by the manufacturer.
As published by the supplier24 lines, in the manufacturer's own wording
- Frequency
- 1575.42 MHz (GPS L1)
- Antenna type
- Patch antenna with LNA
- Gain
- >25 dBic
- Noise figure
- <1.5 dB
- Interface
- SMA connector
- Supply voltage
- 3.3 V
- Power consumption
- <40 mA
- Operating temperature
- -40°C to +85°C
- Mass
- ~15 g
- Dimensions
- 25 x 25 x 8 mm
- Radiation tolerance
- 10 KRad
- TRL level
- 9
- Axial ratio
- <3 dB (at zenith)
- Vswr
- <2:1
- Polarization
- RHCP
- Bandwidth
- 10 MHz (3 dB)
- Mounting
- Bolt or adhesive
- Compatible receivers
- GNSS-701, uBlox, NovAtel
- Coax cable
- Optional (various lengths)
- Ground plane required
- No (integrated)
- ESD protection
- Yes
- Connector type
- SMA Female
- Storage temperature
- -55°C to +125°C
- Vacuum compatible
- Yes
