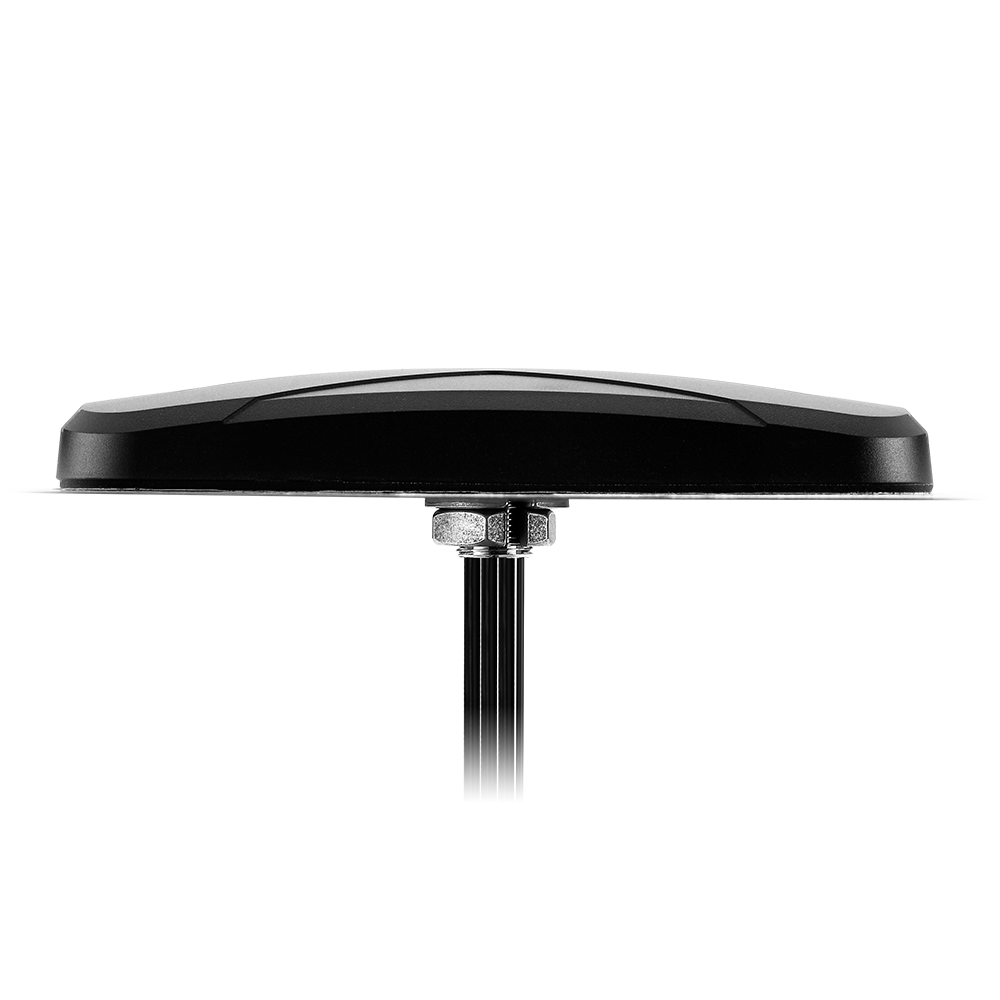

Storm MA410 4in1 Permanent Mount GPS/GLONASS/BeiDou & 2G/3G/4G & 2xMIMO & L-Band 1621MHz Antenna
Taoglas
The Storm MA410 is a low-profile, heavy-duty, IP67 waterproof external M2M antenna combining Global Cellular (4G/3G/2G LTE MIMO), Location (GPS/GLONASS/GALILEO/BeiDou), and Satellite Communications (1621MHz L-band) for worldwide telematics applications.
Typed specifications46 values
Discloses 8 of 10 fields engineers filter by in this category (category median 3).
- Frequency band
- GNSS L1/L2/L5 GPS/GALILEO 1575.42 MHz, GLONASS 1602 MHz, BeiDou 1561.098 MHz · datasheet p.4 other LTE MIMO 698~960MHz / 1710~2170MHz / 2490~2690MHz / 3300~3600MHz | L Satellite L Band 1621MHz
- Peak gain
- 5.9 dBi product page 2 dBi Satellite L Band 1621MHz, typ. @Zenith | 29 dBi total through antenna + LNA @3V, 1561MHz, ±3dBi | 29 dBi total through antenna + LNA @3V, 1575.42MHz, ±3dBi | 32 dBi total through antenna + LNA @3V, 1602MHz, ±3dBi
- Mass
- 440 g datasheet p.7
- Frequency range
- 1 561.1 MHz BeiDou center frequency ±2.046MHz · datasheet p.4 1 602 MHz GLONASS center frequency ±5MHz | 1 575.42 MHz GPS/GALILEO center frequency ±1.023MHz | 1 621 MHz Satellite L Band | 698–3 600 MHz +4
- Envelope (L×W×H)
- 216.24*93.25*30.95mm datasheet p.1
- Polarization
- linear 4G/3G/2G MIMO antennas · datasheet p.6 RHCP GNSS and Satellite L Band
- Antenna type
- other MA410 Storm 4in1 permanent mount antenna: 2x LTE MIMO + GPS/G… · datasheet p.1
- Supply voltage
- 3 V nom. · LNA typ · datasheet p.4 1.8–5.5 V LNA supply, min 1.8V / max 5.5V
- Operating temperature
- -40–85 °C operation · datasheet p.7
- Passive or active
- active with LNA GPS-GLONASS-GALILEO-BeiDou active antenna with LNA and filter · datasheet p.4
- RF connector
- SMA GNSS: standard · datasheet p.1 SMA LTE MIMO & SATELLITE L BAND: standard | SMA SMA(M) standard, fully customizable
- Fixed or deployable
- fixed datasheet p.1
- Connector
- 1M cable (GNSS: RG-174)(LTE MIMO & SATELLITE L BAND CFD-200) with SMA(M) connectors as standard datasheet p.1 Normal
- Survival temperature
- -40–90 °C storage · datasheet p.7
- Axial ratio
- 5.5 dB max · BeiDou · datasheet p.4 10.6 dB max · GLONASS | 3.2 dB max · GPS/GALILEO | 1.7 dB max · Satellite L Band 1621MHz
- VSWR, max
- 3.5 4G/3G/2G MIMO · datasheet p.6 2 GPS-GLONASS-GALILEO-BeiDou | 2 LNA and Filter Electrical Properties | 2 SATELLITE L BAND 1621MHZ | 2 max · GNSS, < 2:1 +2
- RF ports
- 4 4in1: 2x LTE MIMO, 1x GNSS, 1x Satellite L Band · datasheet p.1
- Mounting
- Screw-Mount [Permanent Mount], nickel plated aluminium base and thread, maximum assembly torque 39.2 Nm; does not require a ground plane datasheet p.7
Each value is typed with its unit and measurement condition and cites the datasheet page it was taken from. Nothing is guessed: a field that is absent here has not been published by the manufacturer. machine-extracted ✓ checked by NewSpace Market ✓ manufacturer confirmed by the manufacturer.
As published by the supplier21 lines, in the manufacturer's own wording
- Technology
- External Antennas, Combination
- IP rating
- IP67
- Impedance
- 50
- Minimum operating temperature (℃)
- -40
- Maximum operating temperature (℃)
- 85
- Mounting style
- Screw
- Termination style
- Connector
- Connector type
- SMA
- Length
- 216.24 mm
- Width
- 93.25 mm
- Height
- 30.95 mm
- Cable type
- TGC-200
- Connector body style
- Straight
- Polarity
- Linear
- Frequency range
- 698 - 3600 MHz
- Connector polarity
- Normal
- Cable length
- 3000 mm
- Vswr
- 2:1
- Mass
- 440 g
- Rohs
- Yes
- Gain (Max)
- 5.9
About
The Storm MA410 antenna is a low profile, heavy-duty, fully IP67 waterproof external M2M antenna designed for worldwide telematics applications. It integrates Global Cellular, Location, and Satellite Communications capabilities, delivering best-in-class LTE, GNSS, and Iridium antenna performance. With a height of only 31mm, it is described as the world’s lowest profile global telematics antenna solution. The antenna provides powerful worldwide 4G LTE MIMO technology, covering 3G and 2G bands, alongside GPS-GLONASS-GALILEO-BeiDou for enhanced location accuracy. Additionally, it features a 1621MHz L-band antenna for global satellite communications, enabling connectivity for Satellite L Band systems and offering backup in case of cellular network failure. The antenna does not require a ground plane and uses low loss cables to maintain high efficiency over long cable lengths. The GPS-GLONASS-GALILEO-BeiDou active antenna efficiently receives on all three bands, contributing to higher location accuracy and tracking stability in urban environments. The aerodynamic, super low-profile, and vandal-resistant housing ensures durability. Typical applications include high-speed data links with satellite communication as fallback, automotive and heavy equipment vehicle tracking and telematics, remote asset and pipeline monitoring, HD video over LTE, and first responder and emergency services. Cable length and connector types are customizable upon request. Conformity is declared under EN55022 Class B and EMC directive 2014/30/EU.
Documentation
- MA410.A.LBIJ.001.pdf PDF source: www.taoglas.com ↗
- CE-Declaration-of-Conformity-RED-RoHS-MA410.pdf PDF source: www.taoglas.com ↗
Need the full ICD, test reports or a specific revision? Ask the supplier directly.
