Modular Deployment Sequencer
ISISPACE Group
Dual-redundant deployment sequencing system for precise multi-satellite deployment control and launch vehicle telemetry.
Typed specifications12 values
Discloses 2 of 10 fields engineers filter by in this category (category median 1).
- Mass
- 1 kg max · 4 deployers, external power · description 2 kg max · 8 deployers, internal power
- Envelope (L×W×H)
- 250 x 100 mm base area description
- Release time
- 100 ms min · description 2 000 ms max
- Supply voltage
- 28 V nom. · description 4 V
- Data interface
- RS-485 description RS-422 | UART | CAN | Ethernet
Each value is typed with its unit and measurement condition and cites the datasheet page it was taken from. Nothing is guessed: a field that is absent here has not been published by the manufacturer. machine-extracted ✓ checked by NewSpace Market ✓ manufacturer confirmed by the manufacturer.
As published by the supplier8 lines, in the manufacturer's own wording
- Mass
- ~1 kg (4 deployers, external power) to ~2 kg (8 deployers, internal power)
- Volume
- 250 x 100 mm base area (height dependent on number of modules)
- Pulse power supply
- 28 V ±4 V
- Pulse power supply duration
- 0.1–2 s
- Activation pulse
- Purely resistive load, galvanic isolation, serial switch across 2x 10 Ohm resistors (2W rated)
- RF characteristics
- Meets EMI/EMC standards per launch vehicle payload user guides
- Digital interface
- Analog breakwire, RS485, RS422, USART, CAN Bus, Ethernet
- Lv telemetry interface
- Wire Route physical switches (always active) and controlled by sequencer electronics
About

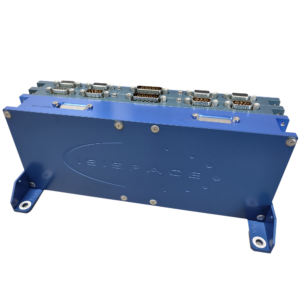

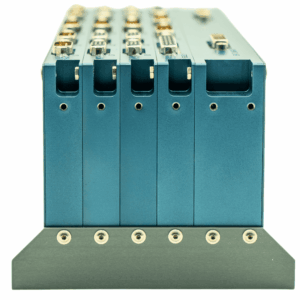

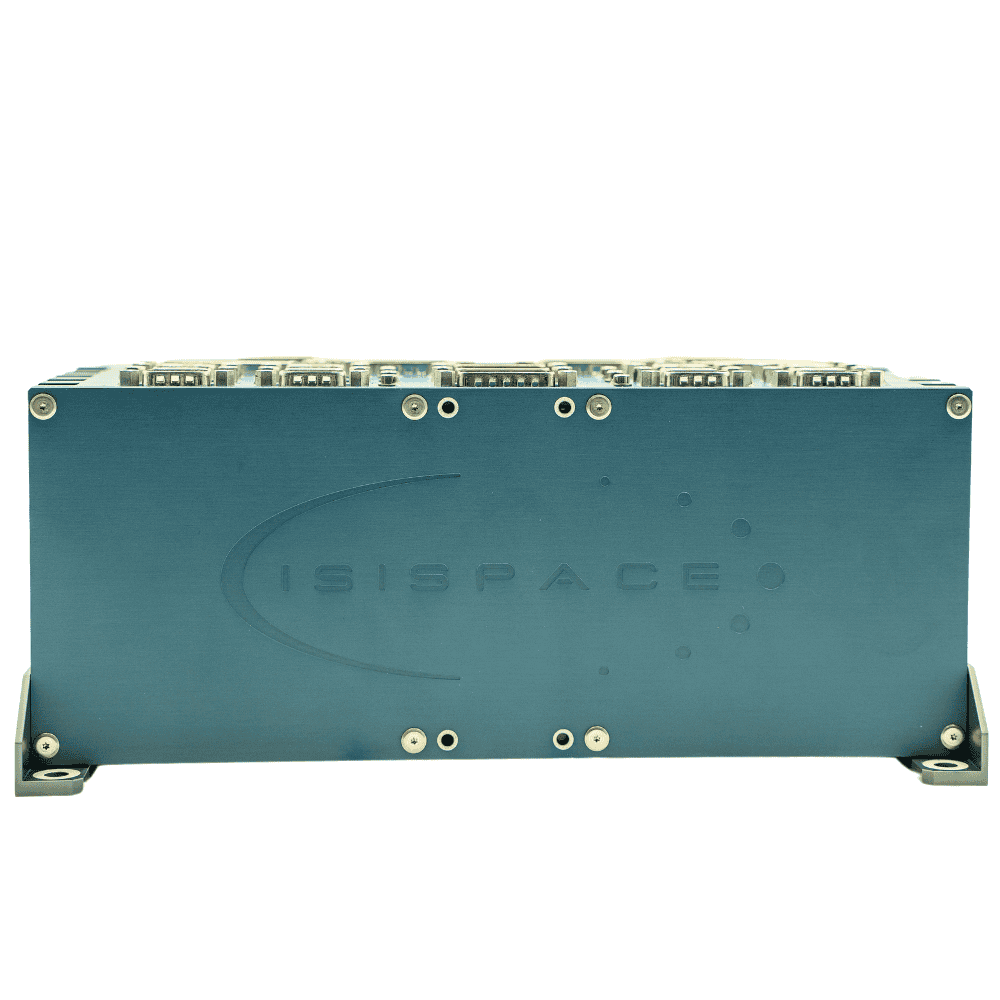

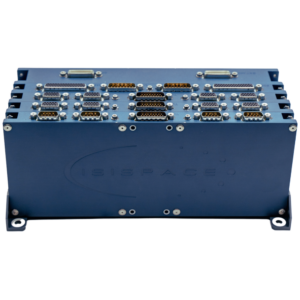

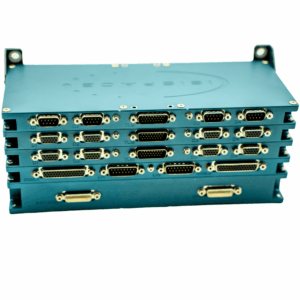

The ISISPACE Modular Deployment Sequencer (IMDS) offers precise satellite deployment sequencing through a dual-redundant system, effectively mitigating single-point risks. It signals deployer systems and deployer doors, ensures satellites deploy at preset times, collects separation confirmations, and relays this data back to the launch vehicle for mission assurance.
The IMDS supports a wide range of digital interfaces including analog breakwire, RS485, RS422, USART, CAN Bus, and Ethernet. It is scalable in mass from ~1 kg (4 deployers, external power) to ~2 kg (8 deployers, internal power), with a modular design allowing configuration to mission requirements.
The activation pulse system features a purely resistive load with galvanic isolation to internal circuitry, a serial switch across two parallel 10 Ohm resistors (2 W rated), and current-limited to prevent damage. The system meets EMI/EMC standards per launch vehicle payload user guides.
Documentation
No public datasheet yet — request the datasheet / ICD from the supplier.
