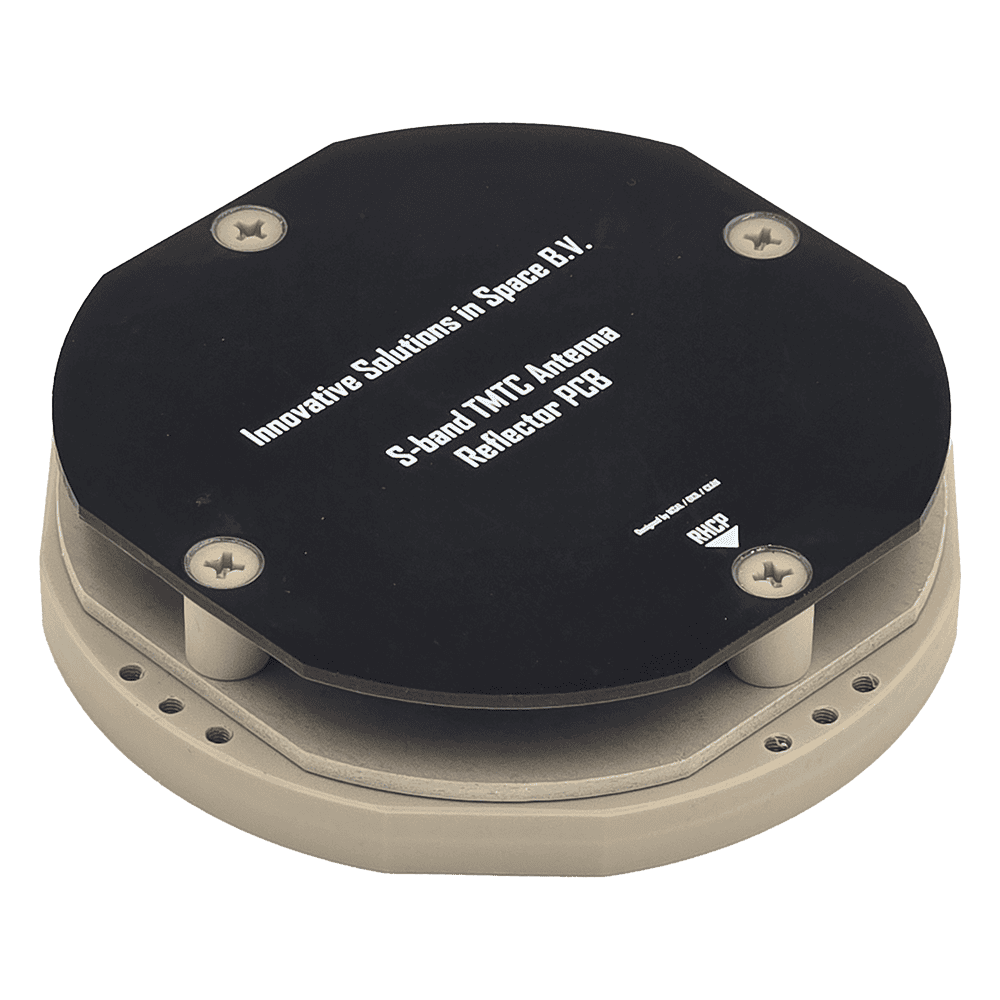

S-Band TMTC Antenna
ISISPACE Group
Passive RHCP S-Band patch antenna covering both uplink (2025–2110 MHz) and downlink (2200–2290 MHz) for CubeSat TT&C.
Typed specifications6 values
Discloses 3 of 10 fields engineers filter by in this category (category median 3).
- Peak gain
- 6 dBi min · product page
- Mass
- 60 g max · product page
- Beamwidth (-3 dB)
- 100 ° product page
- Envelope (L×W×H)
- Diameter: 78 mm; Height with connector: 16.0 mm product page
- Power consumption
- 2 W product page
- Operating temperature
- -20–60 °C product page
Each value is typed with its unit and measurement condition and cites the datasheet page it was taken from. Nothing is guessed: a field that is absent here has not been published by the manufacturer. machine-extracted ✓ checked by NewSpace Market ✓ manufacturer confirmed by the manufacturer.
As published by the supplier10 lines, in the manufacturer's own wording
- Mass
- < 60 g
- Dimensions
- Diameter: 78 mm; Height with connector: 16.0 mm
- Operating temperature
- -20 to +60°C
- Frequency range
- 2025–2110 MHz (uplink) and 2200–2290 MHz (downlink)
- Gain in boresight (centre frequency)
- > 6 dBic
- Half power beam width
- 100°
- Return loss (across frequency range)
- > 10 dB
- Axial ratio
- < 3 dB (for 80°)
- Polarisation
- RHCP
- Power handling
- 2 W
About
The ISISPACE S-Band TMTC Antenna is engineered for the commercial S-band uplink (2025–2110 MHz) and downlink (2200–2290 MHz) range, making it a true dual-band TMTC antenna. This lightweight, compact passive antenna is expertly designed for seamless integration with CubeSat platforms.
The antenna combines superior RF performance with structural compatibility and proven flight heritage to ensure mission success. Its Rogers PCB design minimizes signal losses compared to traditional FR-4 PCBs. The antenna provides a gain of >6 dBic in boresight and features RHCP polarization for optimal link margin.
With a diameter of 78 mm and total height of 16 mm (including connector), it fits within tight CubeSat volume constraints. Power handling up to 2 W ensures compatibility with standard CubeSat transmitters. Flight heritage since 2013.
Documentation
No public datasheet yet — request the datasheet / ICD from the supplier.
