S-Band Diplexer
WiRan

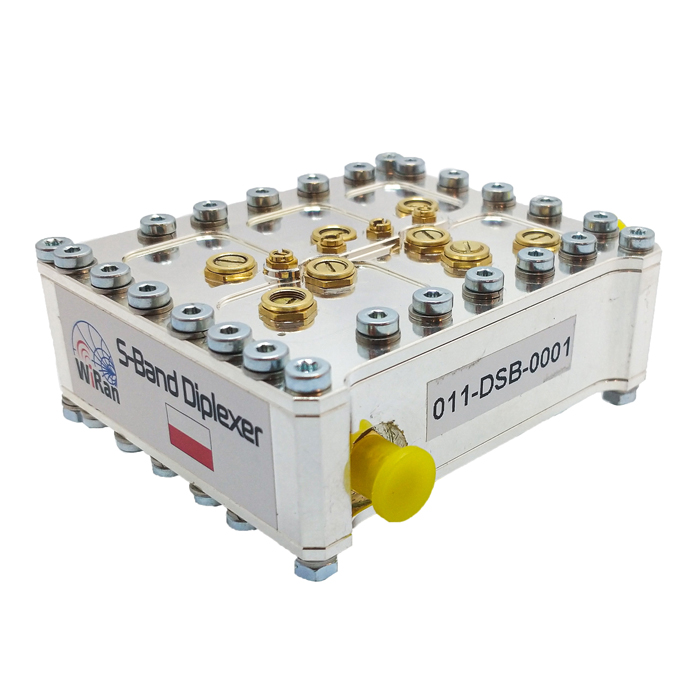

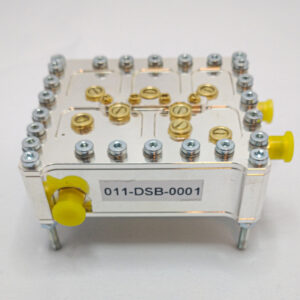

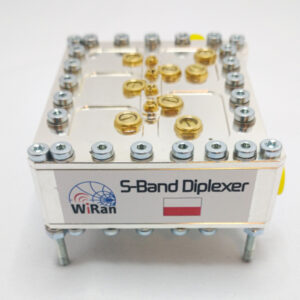

WiRan's S-Band Diplexer enables full-duplex satellite communication over a single antenna, separating RX and TX paths within the 2025-2290 MHz band.
Typed specifications8 values
Discloses 2 of 9 fields engineers filter by in this category (category median 2).
- Frequency band
- S datasheet p.1
- Mass
- 220 g datasheet p.2
- Frequency range
- 2025-2290 datasheet p.1
- Envelope (L×W×H)
- 80 x 29 datasheet p.2
- Power consumption
- 2.5 W datasheet p.2
- Operating temperature
- -40–75 °C datasheet p.2
- Connector
- SMA female datasheet p.2
- Flight heritage
- flight-proven datasheet p.1
Each value is typed with its unit and measurement condition and cites the datasheet page it was taken from. Nothing is guessed: a field that is absent here has not been published by the manufacturer. machine-extracted ✓ checked by NewSpace Market ✓ manufacturer confirmed by the manufacturer.
As published by the supplier8 lines, in the manufacturer's own wording
- Operating frequency band
- 2025-2290 MHz
- Variants
- A and B, covering entire 2025-2290 MHz range, no tuning required
- Housing
- Aluminium, mechanical-shock- and temperature-resistant
- CUBESAT compliance
- Compliant with the CubeSat nanosatellite standard
- Compatibility
- Fully compatible with WiRan S-Band antenna
- Engineering model availability
- Available within single days
- Flight model availability
- Available in days/weeks, depending on specific requirements
- Additional data
- STEP file, S parameters available on request
About
The WiRan S-Band Diplexer allows full-duplex communication for data transmission and TM&TC (telemetry, tracking and command) using a single antenna, operating within the 2025-2290 MHz band. It is compliant with the CubeSat nanosatellite standard and provides high isolation between the RX and TX bands. The unit is housed in a durable, mechanical-shock- and temperature-resistant aluminium enclosure, making it suitable for the space environment. It is fully compatible with the WiRan S-Band antenna. Two variants (A and B) are available, together covering the entire 2025-2290 MHz range, eliminating the need for tuning based on specific channel allocation. Engineering Models are available within single days, while Flight Models are available within days to weeks depending on specific requirements. STEP files and S-parameters are available on request.
