8U Bio-Platform
Kairo Space
8U CubeSat platform optimized for in-orbit life science and microgravity biology experiments.
Typed specifications38 values
Discloses 6 of 7 fields engineers filter by in this category (category median 3).
- Mass
- 4 kg platform mass without payload · datasheet p.2
- Envelope (L×W×H)
- 226.3 x 100 x 454 mm datasheet p.2
- Data interface
- I2C payload interface data: I2C/CAN/SPI/UART · datasheet p.2 CAN payload interface data: I2C/CAN/SPI/UART | SPI payload interface data: I2C/CAN/SPI/UART | UART payload interface data: I2C/CAN/SPI/UART
- Design lifetime
- 1 years design life 1 year (no propulsion) · datasheet p.2
- Form factor
- 8U CubeSat form factor: 8U · datasheet p.2
- Orbit
- LEO product page
- Max payload mass
- 12 kg max · biological payload mass up to 12 kg · datasheet p.2
- Payload volume, U
- 4 U max · envelope up to 4U (configurable) + tunacan (depending on disp… · datasheet p.2
- Power available to payload
- 15 W peak; power for payload (peak) · datasheet p.2
- Regulated voltages for the payload
- 3.3 V payload interface power: 3.3V, 5V, 12V, battery raw · datasheet p.2 5 V payload interface power: 3.3V, 5V, 12V, battery raw | 12 V payload interface power: 3.3V, 5V, 12V, battery raw
- Onboard storage for payload data
- 32 GB max · data storage up to 32 GB · datasheet p.2
- Battery capacity
- 96 Wh available configuration 4S, 2S2P, 4P · datasheet p.2
- Pointing accuracy
- 10 ° max · <10° (1σ); slew rate 5.15 deg/s on each axis / 5.5 deg/s simu… · datasheet p.2
- Attitude knowledge
- 5 ° max · <5° (1σ) · datasheet p.2
- Propulsion
- none design life / 1 year (no propulsion) · datasheet p.2
- Payload data downlink rate
- 10 000 kbps max · S-band downlink, high speed · datasheet p.2 1 000–5 000 kbps S-band downlink, standard
- Radio band
- UHF Communication (UHF): downlink UHF 9600 bps GMSK / uplink UHF … · datasheet p.2 S S-band: uplink 2025–2110 MHz, downlink 2200–2290 MHz; payload… | VHF uplink VHF 1200 bps AFSK / downlink VHF 1200 bps AFSK
- Subsystems included
- thermal control "features ... precise thermal control" · datasheet p.2 ADCS ADCS section: reaction wheel assembly, magnetorquer, sun sens… | OBC platform composition | battery platform composition: battery | EPS platform composition: PCDU, MPPT +4
- Deployables
- other deployable UHF antenna and deployable magnetometer (illustrat… · datasheet p.2
- Deployables (as printed)
- Deployable UHF antenna; deployable magnetometer illustration labels · datasheet p.2
- Satellite class
- CubeSat 8U CubeSat platform · datasheet p.2
- Form factor, U (number)
- 8 U CubeSat form factor: 8U · datasheet p.2
Each value is typed with its unit and measurement condition and cites the datasheet page it was taken from. Nothing is guessed: a field that is absent here has not been published by the manufacturer. machine-extracted ✓ checked by NewSpace Market ✓ manufacturer confirmed by the manufacturer.
As published by the supplier3 lines, in the manufacturer's own wording
- Form factor
- 8U CubeSat
- Application
- Microgravity biology, life science experiments
- Orbit
- LEO
About

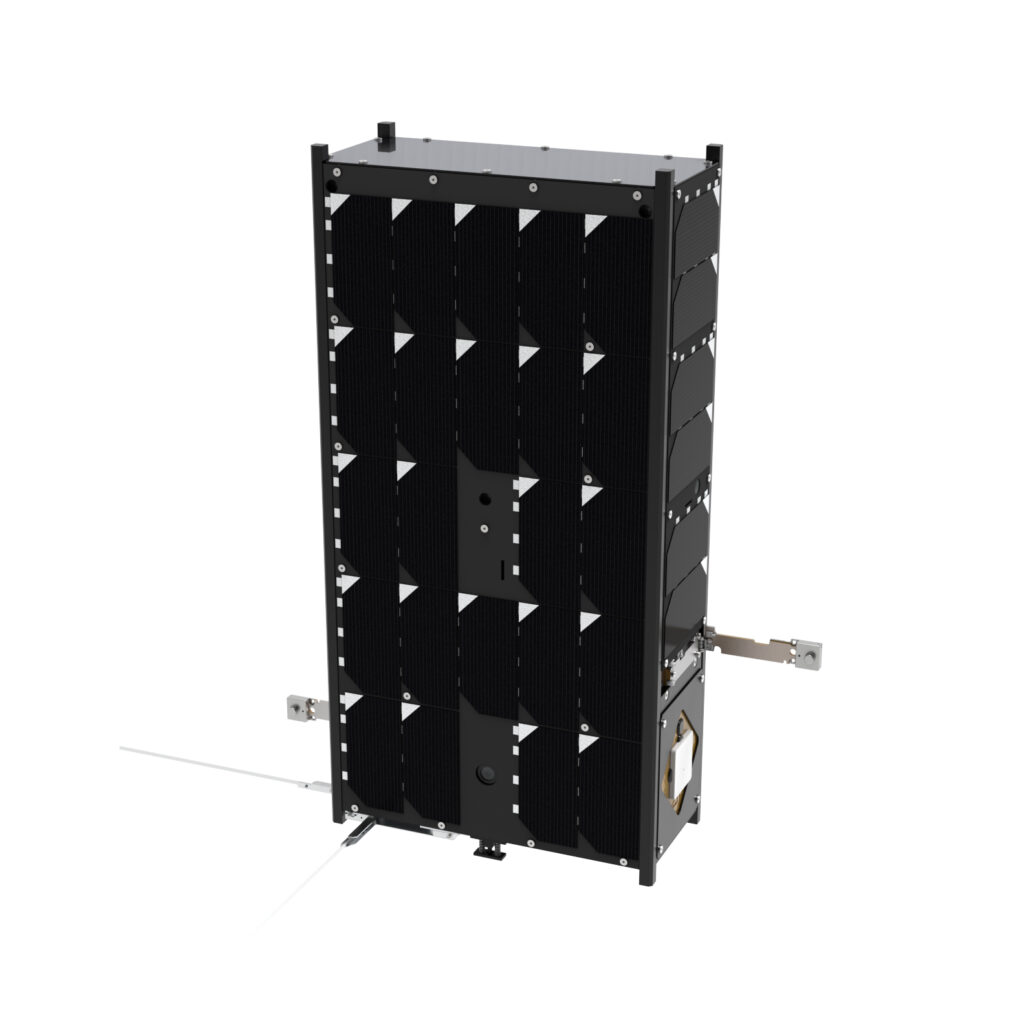

The Kairo Space 8U Bio-Platform is a CubeSat satellite bus specifically configured for microgravity biology and life science experiments in LEO. The 8U form factor provides substantially more volume than standard 3U platforms, accommodating biological sample containers, environmental control systems, and imaging hardware required for pharmaceutical and astrobiology research missions.
The platform integrates Kairo Space’s own power, attitude control, and communication subsystems, with payload interfaces designed to accommodate temperature-controlled biological experiment modules. It targets research institutions and pharmaceutical companies seeking access to the microgravity environment.
Documentation
Need the full ICD, test reports or a specific revision? Ask the supplier directly.
