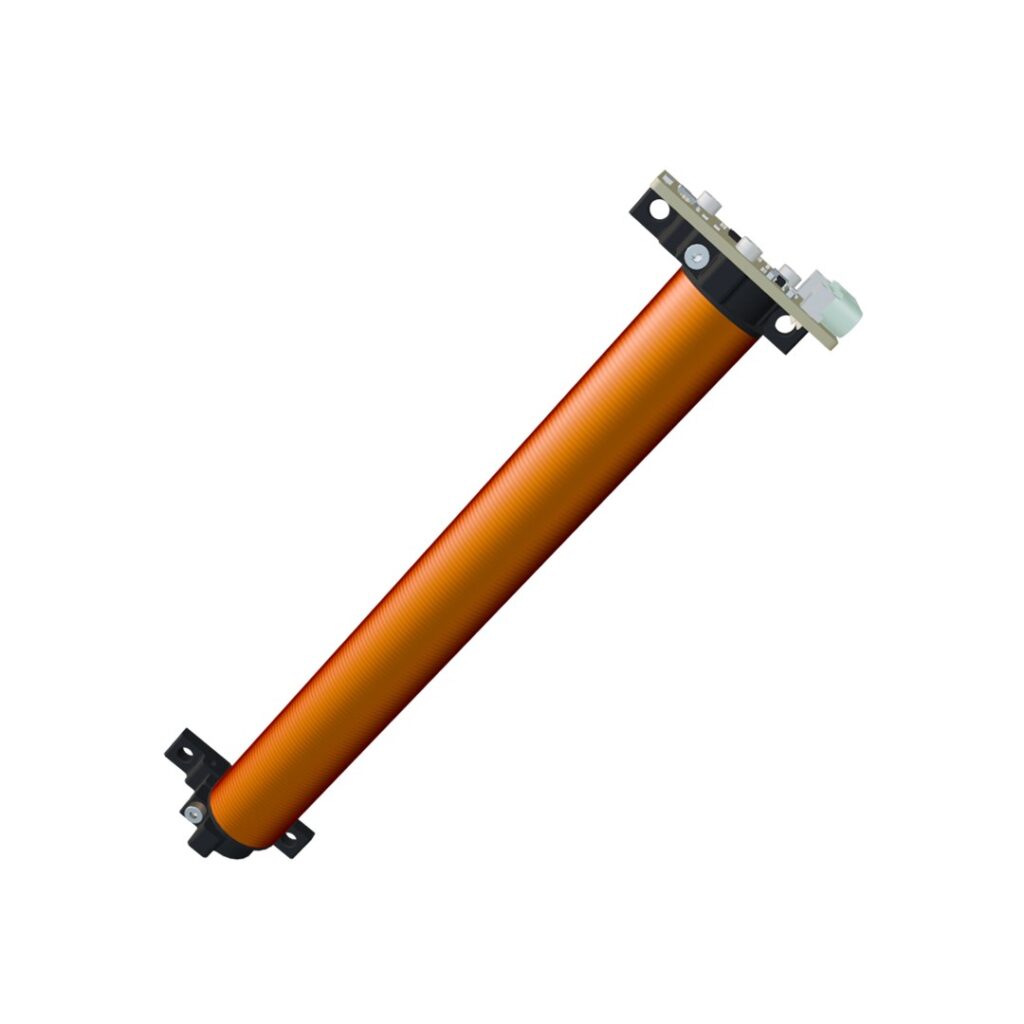

Magnetic Torque Rod family (PS-MTQ-0.8 and PS-MTQ-4)
Plan-S (Connecta)
The Magnetic Torque Rod family provides compact and efficient magnetic actuation solutions for spacecraft attitude control systems, designed for detumbling and reaction wheel unloading in small satellite and microsatellite segments.
Typed specifications19 values
Discloses 5 of 8 fields engineers filter by in this category (category median 3).
- Magnetic dipole moment
- 4 A·m² datasheet p.2
- Mass
- 200 g datasheet p.2
- Envelope (L×W×H)
- 160 x 35 x 20 mm datasheet p.2
- Supply voltage
- 5 V nom. · datasheet p.2 5 V | 5 V nom.
- Power consumption
- 1.25 W detumbling 5 kg·m² satellite from 10°/s · datasheet p.1 1.25 W detumbling a 5 kg·m² satellite from 10 deg/s in less than thr… | 0.5 W max · at maximum duty
- Data interface
- CAN datasheet p.2 CAN 1x CAN | RS-485 1x RS-485 | RS-485
- TRL
- 6 datasheet p.2
- Magnetorquer type
- rod magnetic torque rod · datasheet p.1
- Driver electronics
- integrated integrated driver and microcontroller · datasheet p.1
- Connector
- Harwin Gecko datasheet p.2
- Satellite class
- microsat 10-100 kg designed for microsatellite missions · datasheet p.1
- Coil current at nominal dipole
- 0.225 A at room temperature · datasheet p.2
Each value is typed with its unit and measurement condition and cites the datasheet page it was taken from. Nothing is guessed: a field that is absent here has not been published by the manufacturer. machine-extracted ✓ checked by NewSpace Market ✓ manufacturer confirmed by the manufacturer.
As published by the supplier10 lines, in the manufacturer's own wording
- Magnetic moment (PS-MTQ-4.0)
- 4 A·m²
- Supply voltage (PS-MTQ-4.0)
- 5 V
- Maximum current (PS-MTQ-4.0)
- 225 mA (at room temperature)
- Mass (PS-MTQ-4.0)
- 200 grams
- Dimensions (PS-MTQ-4.0)
- 160 x 35 x 20 mm (including driver board)
- Magnetic moment (PS-MTQ-0.8)
- 0,85 A·m²
- Supply voltage (PS-MTQ-0.8)
- 5 V
- Maximum current (PS-MTQ-0.8)
- 90 mA (110 mA at -40°C)
- Mass (PS-MTQ-0.8)
- 61.5 grams
- Dimensions (PS-MTQ-0.8)
- 83 x 25 x 15 mm (including driver board)
About
The Plan-S Magnetic Torque Rod family offers compact, power-efficient, and integration-friendly magnetic actuation solutions for spacecraft attitude control systems. These devices are designed to simplify ADCS integration and support reliable in-orbit attitude control. By combining magnetic actuation with integrated drive electronics and mission-focused interface options, the family helps reduce external hardware requirements, simplify spacecraft-level integration, and support more predictable ADCS performance. Engineered to address different platform needs within the small satellite and microsatellite segment, the product family supports critical in-orbit operations such as early-phase stabilization and momentum management throughout the mission lifecycle. Its low residual magnetization, efficient power profile, and digital control approach enable satellite teams to achieve reliable magnetic control while keeping system complexity, harnessing effort, and integration risk under control. The product family offers solutions for different spacecraft platform needs, from compact 6U-class small satellites to microsatellite missions requiring higher magnetic authority.
