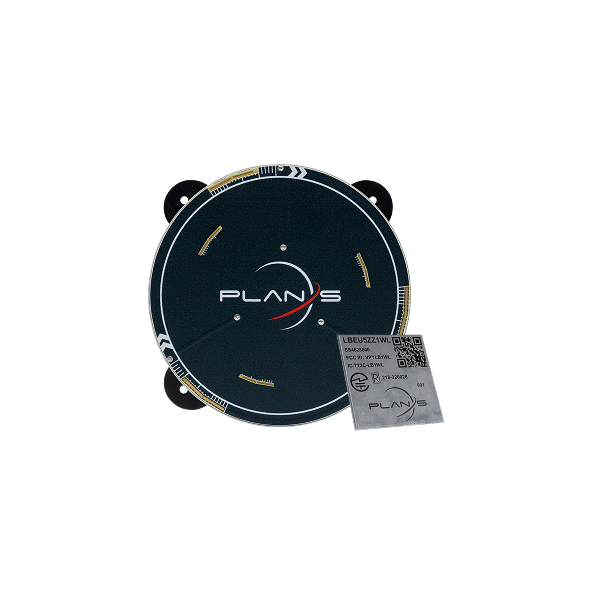

Connecta IoT Module and Dual-Band Antenna
Plan-S (Connecta)
The Connecta IoT Module and Dual-Band Antenna provide efficient, global satellite IoT connectivity, designed for seamless integration and long-term reliability in harsh conditions.
Typed specifications9 values
Discloses 2 of 10 fields engineers filter by in this category (category median 3).
- Peak gain
- 3.3 dBi product page
- Mass
- 25 g max · product page
- Envelope (L×W×H)
- 17 x 17.5 x 2.15 mm (max) datasheet p.1 80 × 80 × 13.65 mm
- Data interface
- UART datasheet p.1
- Operating temperature
- -30 °C min · datasheet p.1 85 °C max
- RF connector
- U.FL product page SMA
Each value is typed with its unit and measurement condition and cites the datasheet page it was taken from. Nothing is guessed: a field that is absent here has not been published by the manufacturer. machine-extracted ✓ checked by NewSpace Market ✓ manufacturer confirmed by the manufacturer.
As published by the supplier20 lines, in the manufacturer's own wording
- Iot module - options
- Two options available with or w/o GNSS
- Iot module - chipsets
- Equipped with STM32WB MCU, LR1110 RF IC and MT3333 GNSS chipset (optional)
- Iot module - lorawan stack
- Enhanced LoRaWAN stack for Connecta IoT Network
- Iot module - connectivity
- Dual Mode Connectivity, supports both terrestrial and non-terrestrial connectivity
- Iot module - wake-up algorithm
- TLE based advanced wake-up algorithm for long battery life
- Iot module - deep sleep power consumption
- ~6.8 µA
- Iot module - rx power consumption
- ~23 mA
- Iot module - tx power consumption
- ~161 mA
- Iot module - frequency range
- EU868, US915
- Iot module - payload size
- Up to 51-byte
- Iot module - interface
- AT commands over UART interface
- Iot module - GNSS support
- Standalone multiconstellation GNSS support in the same form factor
- Iot module - ble support
- BLE support for activation and maintenance activities
- Dual band antenna - frequency range
- EU868 or US915
- Dual band antenna - gain (Peak)
- 3.30 dBic
- Dual band antenna - connection type
- UFL coaxial cable or SMA connector
- Dual band antenna - weight
- <25 g
- Dual band antenna - operating temperature range
- -40°C to +85°C
- Dual band antenna - GPS frequency range
- L1
- Dual band antenna - dimensions
- 80 × 80 × 13.65 mm
About
The Connecta IoT Module and Dual-Band Antenna together form a solution for efficient, global satellite IoT connectivity. This pair is purpose-built for low power and high performance, ensuring strong signal performance and stable communication even in harsh conditions like dense forests or remote industrial zones. It allows developers and system integrators to rapidly design IoT devices that connect directly to the Connecta IoT Network and terrestrial LoRaWAN infrastructure. The system supports LoRa/LR-FHSS and GNSS for direct satellite communication. The IoT Module is available with or without GNSS, equipped with an STM32WB MCU, LR1110 RF IC, and an optional MT3333 GNSS chipset. It features an enhanced LoRaWAN stack for the Connecta IoT Network, dual-mode connectivity supporting both terrestrial and non-terrestrial connections, and a TLE based advanced wake-up algorithm for long battery life. It offers different power modes to optimize consumption and supports both EU868 and US915 frequency ranges with up to a 51-byte payload size. AT commands are available over a UART interface, and it includes standalone multi-constellation GNSS support in the same form factor, plus BLE support for activation and maintenance. The Dual-Band Antenna complements the module, providing the necessary frequency range and gain for reliable communication.
