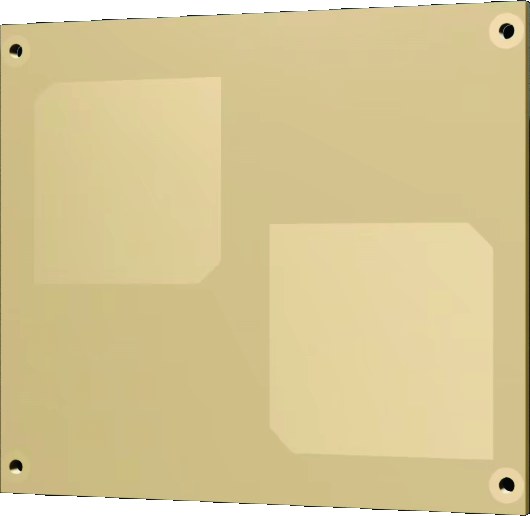

S-Band Dual-Band Patch Antenna
Plan-S (Connecta)
This compact stacked-patch antenna is designed for demanding S-band SatCom & TT&C missions, offering reliable circular polarization, broad coverage, and environmental robustness.
Typed specifications34 values
Discloses 5 of 10 fields engineers filter by in this category (category median 3).
- Frequency band
- S datasheet p.0
- Peak gain
- 6.1 dBi datasheet p.2 6.1 dBi ~ 6.1 dBic in both bands
- Frequency range
- 2 025 MHz min · datasheet p.2 2 025 MHz min · Band 1 | 2 200 MHz min · Band 2 | 2 110 MHz max | 2 110 MHz max · Band 1 +5
- Envelope (L×W×H)
- 86 x 98 x 3.25 mm, Excluding Connectors datasheet p.2
- Polarization
- RHCP datasheet p.2 other Right-Hand Circular Polarized (RHCP)
- Antenna type
- Stacked Patch datasheet p.2
- Operating temperature
- -40 °C min · datasheet p.2 85 °C max
- RF connector
- MMCX 2 x MMCX Male · datasheet p.2
- Connector
- 2 x MMCX Male datasheet p.2
- Survival temperature
- -40–85 °C thermal cycling test, 10 cycles · datasheet p.2
- Random vibration
- 14.1 g RMS 20-2000 Hz, 3 min per axis (X, Y, Z) · datasheet p.2
- Flight heritage
- Flight heritage demonstrated on 2 satellites datasheet p.2
- Satellite class
- CubeSat datasheet p.2
- Missions flown
- 2 flight heritage demonstrated on 2 satellites · datasheet p.2
- Fits satellite size
- 1U 1U Cubesat compatible · datasheet p.2
- Axial ratio
- 1.5 dB ~ at band centers · datasheet p.2 4.5 dB max
- VSWR, max
- 1.7 datasheet p.2 1.7 max · < 1.7:1
- RF ports
- 2 dual-port · datasheet p.2
- Mounting
- 4 x M2.5 countersunk screws datasheet p.2
- Isolation
- 23 dB min · port isolation · datasheet p.2
Each value is typed with its unit and measurement condition and cites the datasheet page it was taken from. Nothing is guessed: a field that is absent here has not been published by the manufacturer. machine-extracted ✓ checked by NewSpace Market ✓ manufacturer confirmed by the manufacturer.
As published by the supplier12 lines, in the manufacturer's own wording
- Frequencies
- 2025-2110 MHz / 2200-2290 MHz
- Peak gain
- ~ 6.1 dBi
- Vswr
- < 1.7:1
- Polarization
- RHCP
- Port-to-port isolation
- > 23 dB
- Axial Ratio
- < 4.5 dB, ~1.5 dB at Band Centers
- Interface
- 2 x MMCX Male
- Impedance
- 50 ohm
- Dimensions
- 86 x 98 x 3.25 mm
- Mounting
- 4 x M2.5 Countersunk Screws
- Random Vibration Qualification
- 14.1 gRMS (20–2000 Hz), 3 min per axis (X, Y, Z)
- Operating temperature
- –40 °C to +85 °C
About
The S-Band Dual-Band Patch Antenna operates over 2025-2110 MHz and 2200-2290 MHz through a dual-port, facilitating easy integration into compact RF subsystems. Designed for spaceborne use, it provides balanced coverage and consistent link performance across both operating bands. It supports reliable communication across both operating bands, combining dual-band capability and balanced coverage to help maintain stable SatCom and TT&C links under varying mission conditions. The antenna is part of Plan-S’s Radios & Antennas portfolio, which delivers flight-ready communications hardware for LEO missions, offering band and configuration options in compact, integration-friendly form factors. The S-Band Dual Transceiver Antenna (likely referring to this product) reduces hardware and integration complexity while delivering robust links that maintain command authority across every pass.
