MoonRanger — 5 kW Hall-Effect Thruster
Pulsar Fusion
The MoonRanger (PF-MOONRANGER) is Pulsar Fusion’s 5–7 kW Hall-effect thruster targeting GEO-class missions, cislunar transfer, and high-power constellation applications. At the nominal 5 kW design point the MoonRanger targets greater than 280 mN thrust at approximately 1,800 s specific impulse; at 7 kW, targets exceed 350 mN at approximately 2,050 s Isp on krypton or […]
Typed specifications5 values
Discloses 2 of 10 fields engineers filter by in this category (category median 3).
- Thrust
- 280 mN min · product page 350 mN min
- Propellant
- krypton product page xenon
- Power consumption
- 5–7 W product page
Each value is typed with its unit and measurement condition and cites the datasheet page it was taken from. Nothing is guessed: a field that is absent here has not been published by the manufacturer. machine-extracted ✓ checked by NewSpace Market ✓ manufacturer confirmed by the manufacturer.
As published by the supplier10 lines, in the manufacturer's own wording
- Power
- 5–7 kW
- Thrust target at 5 kw
- >280 mN
- Thrust target at 7 kw
- >350 mN
- ISP target at 5 kw
- ~1,800 s
- ISP target at 7 kw
- ~2,050 s
- Partial-power test result (2 kW)
- 104 mN thrust; 1,891 s Isp; 38% anode efficiency
- Propellants
- Krypton, Xenon
- Magnetic shielding
- Yes
- First test fire
- November 2024
- Application
- GEO orbit raising, cislunar transfer, high-power LEO constellations; Sunbird fusion tug (8 units)
About

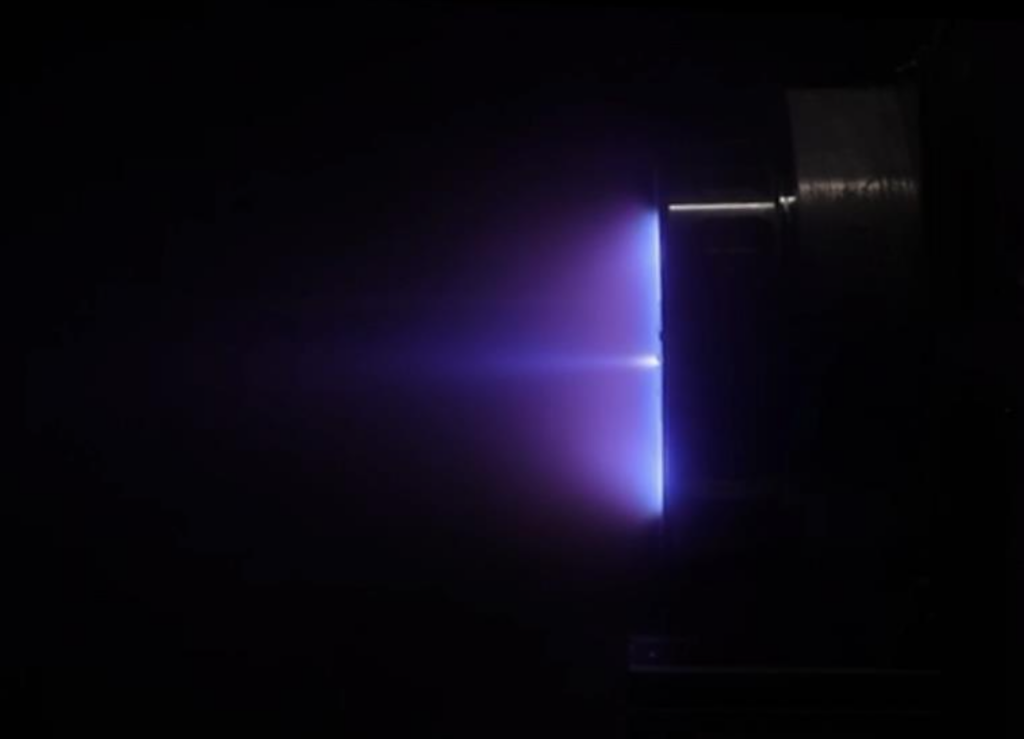

The MoonRanger (PF-MOONRANGER) is Pulsar Fusion’s 5–7 kW Hall-effect thruster targeting GEO-class missions, cislunar transfer, and high-power constellation applications. At the nominal 5 kW design point the MoonRanger targets greater than 280 mN thrust at approximately 1,800 s specific impulse; at 7 kW, targets exceed 350 mN at approximately 2,050 s Isp on krypton or xenon propellant. First firing tests in November 2024 demonstrated 104 mN thrust and 1,891 s Isp at partial 2 kW power (below the design voltage range of 300–500 V). Eight MoonRanger thrusters are baselined as the electric propulsion system for Pulsar’s Sunbird fusion tug when it enters service. The MoonRanger uses magnetic shielding for extended operational lifetime in high-delta-V missions. Pulsar Fusion is based in Bletchley, UK, and also produces the LeoBear 500 W and MarsRanger 10 kW thrusters alongside the Sunbird nuclear fusion development programme.
Documentation
No public datasheet yet — request the datasheet / ICD from the supplier.
