Protoboard Module Kit
Pumpkin, Inc.
A prototyping PCB module for the CubeSat Kit that lets engineers wire through-hole components into circuitry connected to the CubeSat Kit Bus Connector.
Technical specifications
- SKU
- 711-00303
- Price
- $100.00 per item
- Category
- Prototyping Hardware
- Grid pitch
- 0.100"
- Plated holes
- roughly 500
- Power buses
- +5 V_SYS, VCC_SYS, GND on each side
- Includes
- Red (for prototyping) multilayer PCB
- Includes (2)
- Two 52-pin stackthrough connectors
- Includes (3)
- Four 15 mm M3 M/F plated brass standoffs
- Compatibility
- All CubeSats conforming to the CubeSat Kit Bus standard with its 104-pin connector
About

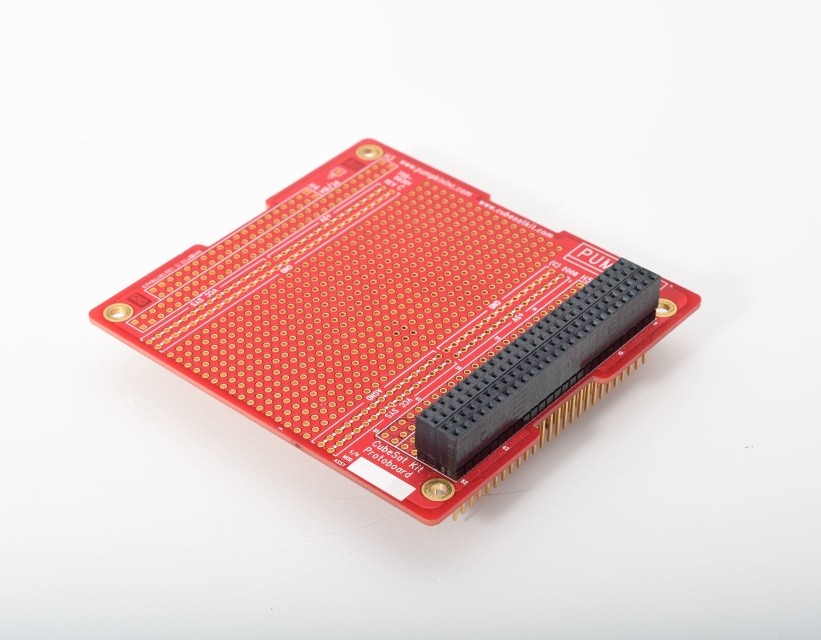

The Protoboard Module Kit provides an easy way to wire through-hole components into circuitry that connects to the CubeSat Kit Bus Connector. It features an 0.100″ grid with roughly 500 plated holes provided for mounting and interconnecting through-hole components. Power buses on each side for +5V_SYS, VCC_SYS and GND are provided, allowing easy access to system power rails while prototyping custom circuitry. The kit includes a red (for prototyping) multilayer PCB, two 52-pin stackthrough connectors, and four 15mm M3 M/F plated brass standoffs for mechanical stacking within the CubeSat Kit module stack. It is compatible with all CubeSats that conform to the CubeSat Kit Bus standard with its 104-pin connector. This product is categorized by Pumpkin as Prototyping Hardware.
