RGUC-Aa160-ACREN-A0
RevGo

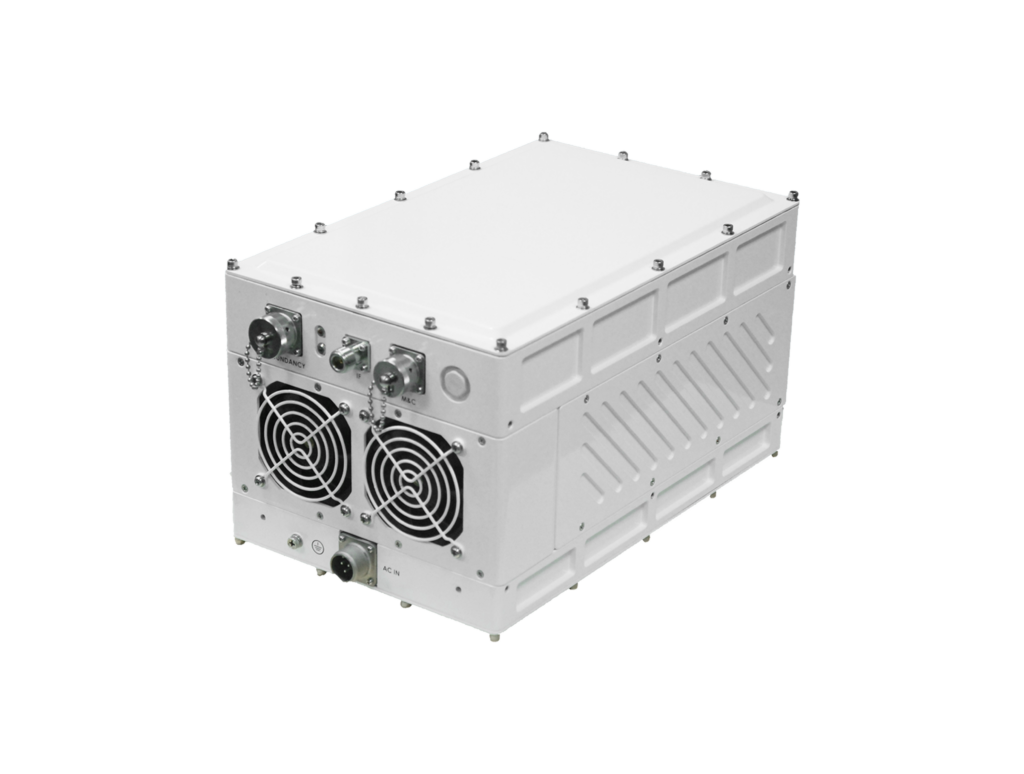

Block Up-Converter (BUC) — RGUC-Aa160-ACREN-A0, frequency 27.5-31 GHz (Many band options available), output 160W.
Typed specifications37 values
Discloses 2 of 13 fields engineers filter by in this category (category median 2).
- Frequency bands
- Ka TX · datasheet p.2
- Mass
- 15 kg datasheet p.2
- Frequency range
- 950–1 950 MHz IF Frequency · datasheet p.2 27 500–31 000 MHz RF Frequency, General | 27 500–31 000 MHz RF output
- Envelope (L×W×H)
- 350*220*200 datasheet p.2
- Supply voltage
- 100–240 V 50-60Hz · datasheet p.2 100–240 V Input Power
- Power consumption
- 160 W product page 650 W PLin3 Output | 1 000 W Rated Output
- Data interface
- RS-485 M&C (RS485/232, Eth) · datasheet p.2 RS-485 M&C Connector | RS-232 M&C (RS485/232, Eth) | RS-232 M&C Connector | Ethernet M&C (RS485/232, Eth) +1
- Operating temperature
- -40–60 °C datasheet p.2
- Function
- other Block Up-Converter (BUC) · datasheet p.1
- Link use
- ground terminal Gateway · datasheet p.1
- RF connector
- other IF Connector, N-Type Female · datasheet p.2 N IF input N-Type Female | other RF Output Connector (optional), WR34-G | other RF Output Connector, WR28-G | waveguide flange RF output WR28-G / WR34-G (optional)
- Power draw, transmit
- 1 000 W Rated Output · datasheet p.2
- Transmit power
- 100 W Plin1 Output Power · datasheet p.2 79.43 W Plin2 Output Power | 63.1 W Plin3 (<-25 dBc IMD3) | 63.1 W Plin3 Output Power | 125.89 W Rated (CW Power) +3
- Connector
- Power: ACS02E14S-7P; M&C: PT02E-12-19P; Redundancy: PT02E-12-14P datasheet p.2
- Frequency tunable in orbit
- yes software selectable sub-band 27.5-31 GHz · datasheet p.1
- RF gain
- 55–75 dB small signal gain · datasheet p.2
Each value is typed with its unit and measurement condition and cites the datasheet page it was taken from. Nothing is guessed: a field that is absent here has not been published by the manufacturer. machine-extracted ✓ checked by NewSpace Market ✓ manufacturer confirmed by the manufacturer.
As published by the supplier25 lines, in the manufacturer's own wording
- Frequency
- 27.5-31 GHz (Many band options available)
- Power/output
- 160 W
- Input power
- 100 to 240 VAC (50-60 Hz)
- RF output vswr
- 1.3:1
- If input vswr
- 1.5:1
- Dimensions
- 13.7*8.66*7.87 inches
- Mass
- 33 lbs
- Operating temperature
- -40 to +60oC
- Humidity
- 0-100% (condensing)
- Altitude
- 0-10,000 feet ASL
- If frequency
- 950-1950 MHz
- External ref
- 10 MHz, 0 5 dBm
- Saturated
- 52 dBm (Peak to Peak)
- Rated
- 51 dBm (CW Power)
- Plin1
- 50 dBm
- Plin2
- 49 dBm
- Plin3
- 48 dBm
- Noise power ratio (NPR)
- -19 dBc @48.3 dBm or 68 W
- Small signal gain
- 55-75 dB
- Gain variation
- 1 dB p-p / 36 MHz
- Gain adjustment
- 20 dB (Step: 0.1 dB)
- Phase noise
- -63 dBc / Hz @ 100 Hz
- Output spurious
- -60 dBc
- Optional
- 1:1 Redundancy Configuration; 1:1 Redundancy Kit
- Switchka
- 160 W BUC KA 160 W BUC
About
RevGo Global’s RGUC-Aa160-ACREN-A0 is a block up-converter (buc) designed for satellite ground-segment (VSAT/SNG/maritime) RF chains, manufactured by RevGo Global Inc. (Reston, VA, USA), a satellite earth-station RF equipment manufacturer founded in 2002 and operating an ISO 9001:2015 quality system. This model operates over 27.5-31 GHz (Many band options available) with rated output/class of 160W. RevGo’s product line uses highly integrated RF technologies (RFIC and GaN), is designed for high-volume production, and is built for rugged outdoor operation (typ. -40 to +60C, 0-100% humidity condensing, up to 10,000 ft altitude). Typical applications include maritime VSAT terminals, 5G backhaul, SNG (satellite news gathering) vehicles, and fixed, portable, or transportable satellite terminals. Full RF, power, mechanical, and interface specifications are provided in the manufacturer’s datasheet linked below.
