Satcube Ku
Satcube AB

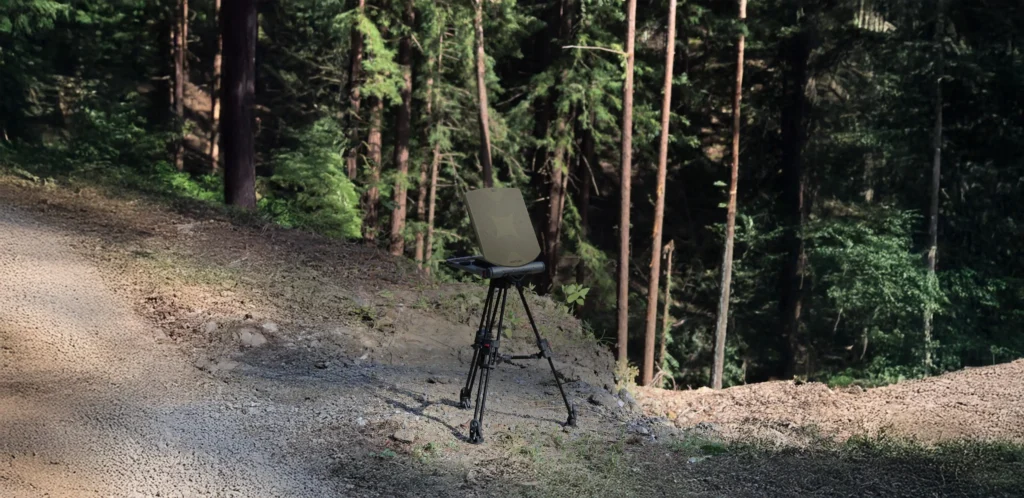

Ultra-portable Ku-band flyaway satellite terminal delivering high-speed internet in under a minute anywhere in the world.
Typed specifications23 values
Discloses 8 of 13 fields engineers filter by in this category (category median 2).
- Frequency bands
- Ku Rx · datasheet p.2 Ku Rx 10.95 - 12.75 GHz | Ku Tx | Ku Tx 13.75 - 14.50 GHz
- Mass
- 8 kg datasheet p.2
- Frequency range
- 10 950–12 750 MHz Rx · datasheet p.2 13 750–14 500 MHz Tx
- Envelope (L×W×H)
- 470 x 300 x 55 mm datasheet p.2
- G/T
- 9 dB/K datasheet p.2
- Data rate
- 20 000 000 kbps datasheet p.2 20 000 kbps max · up to 20/20 Mbps via HTS
- EIRP
- 46 dBW datasheet p.2
- Supply voltage
- 24 V nom. · datasheet p.2 24 V | 100–240 V AC/DC, 47 - 63 Hz
- Power consumption
- 130 W datasheet p.2 130 W 24 VDC
- Data interface
- Ethernet Wi-Fi hotspot or ethernet cable · datasheet p.2
- Operating temperature
- -35 °C product page -35–60 °C
- Offering
- portable or mobile terminal datasheet p.2
- Installation
- portable (man-pack) 8 kg portable terminal · datasheet p.2
- Polarization
- linear datasheet p.2
Each value is typed with its unit and measurement condition and cites the datasheet page it was taken from. Nothing is guessed: a field that is absent here has not been published by the manufacturer. machine-extracted ✓ checked by NewSpace Market ✓ manufacturer confirmed by the manufacturer.
As published by the supplier13 lines, in the manufacturer's own wording
- Dimensions
- 470 x 300 x 55 mm
- Mass
- 8 kg
- Environmental rating
- IP65/IP67 water and dust proof
- Power
- 24 VDC, 130 W; AC/DC 100-240 VAC, 47-63 Hz
- Antenna tx
- 13.75-14.50 GHz (Ku band)
- Antenna rx
- 10.95-12.75 GHz (Ku band)
- Polarisation
- Linear
- Eirp
- 46 dBW
- G/t
- 9 dB/K
- Approvals
- CE (RED directive 2014/53/UE, EN 301 428), FCC
- Satellite modem
- iDirect IQ 200, Newtec MDM2510, UHP 210
- Operating temperature
- -35 C to 60 C
- Data rate
- Up to 85/20 Mbps via HTS
About
Satcube Ku is an ultra-portable Ku-band flyaway satellite terminal enabling users to establish reliable high-speed internet in less than a minute, anywhere in the world. It is satellite-agnostic, certified to run on networks from all major satellite providers, and features an intuitive user interface, robust construction, and battery operation, making it suitable for emergency response, broadcast media, law enforcement, public safety, NGOs, and telemedicine. The terminal ships with three batteries, a hardcase, power supply, and external charger, and is assembled in Karlstad, Sweden.
Documentation
Need the full ICD, test reports or a specific revision? Ask the supplier directly.
