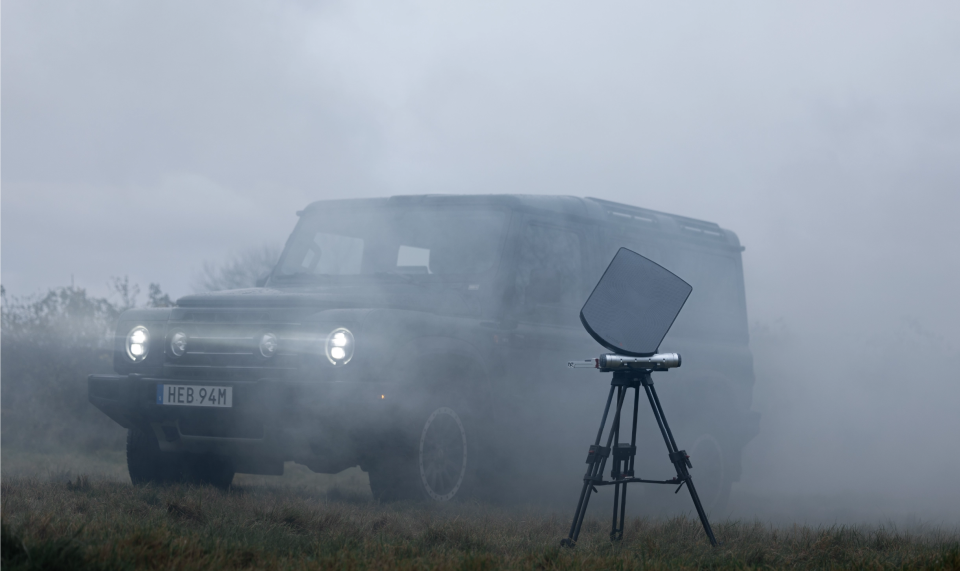

Satcube Secure
Satcube AB
Hardened, FIPS 140-2 Level 3 certified portable satellite terminal for TRANSEC government and defence networks.
Typed specifications23 values
Discloses 8 of 13 fields engineers filter by in this category (category median 2).
- Frequency bands
- Ku RX · datasheet p.2 Ku Rx 10.95 - 12.75 GHz | Ku TX | Ku Tx 13.75 - 14.50 GHz
- Mass
- 9.5 kg datasheet p.2
- Frequency range
- 10 950–12 750 MHz RX · datasheet p.2 13 750–14 500 MHz TX
- Envelope (L×W×H)
- 470 x 320 x 75 mm datasheet p.2
- G/T
- 9 dB/K datasheet p.2
- Data rate
- 20 000 kbps Up to, via HTS · datasheet p.2 20 000 kbps max · up to 20/20 Mbps via HTS
- EIRP
- 46 dBW datasheet p.2
- Supply voltage
- 24 V nom. · datasheet p.2 24 V | 100–240 V AC/DC | 100–240 V AC/DC, 47 - 63 Hz
- Power consumption
- 130 W datasheet p.2 130 W 24 VDC
- Data interface
- other X.509 Digital Certificates · datasheet p.2
- Operating temperature
- -35–50 °C datasheet p.2
- Offering
- portable or mobile terminal datasheet p.2
- Installation
- portable (man-pack) 9.5 kg portable terminal · datasheet p.2
- Polarization
- linear datasheet p.2
Each value is typed with its unit and measurement condition and cites the datasheet page it was taken from. Nothing is guessed: a field that is absent here has not been published by the manufacturer. machine-extracted ✓ checked by NewSpace Market ✓ manufacturer confirmed by the manufacturer.
As published by the supplier13 lines, in the manufacturer's own wording
- Dimensions
- 470 x 320 x 75 mm
- Mass
- 9.5 kg
- Environmental rating
- IP65/IP67 water and dust proof
- Power
- 24 VDC, 130 W; AC/DC 100-240 VAC, 47-63 Hz
- Antenna tx
- 13.75-14.50 GHz (Ku band)
- Antenna rx
- 10.95-12.75 GHz (Ku band)
- Eirp
- 46 dBW
- G/t
- 9 dB/K
- Internal modem
- iDirect 950mp
- Approvals
- CE (RED directive 2014/53/UE, EN 301 428), FCC
- Operating temperature
- -35 C to 60 C
- Data rate
- Up to 85/20 Mbps via HTS
- Security
- FIPS 140-2 Level 3 certified TRANSEC module, AES-256 link encryption, X.509 digital certificates, automatic key management
About
Satcube Secure enables users to create an efficient and secure broadband connection in a minute anywhere in the world. It is FIPS 140-2 Level 3 certified and supports both one-way and two-way TRANSEC for mission-critical communications, suitable for governments, emergency responders, law enforcement, and public safety organizations. With the Intelsat FlexMove data plan it reaches near-global coverage, and has been cited by USSOCOM and the US Department of Defense as a force multiplier for global deployment.
Documentation
Need the full ICD, test reports or a specific revision? Ask the supplier directly.
