Satcube Motion
Satcube AB
Compact vehicle-mountable on-the-move Ku-band satellite terminal, MIL-STD tested, launching autumn 2025.
Typed specifications28 values
Discloses 8 of 13 fields engineers filter by in this category (category median 2).
- Frequency bands
- Ku Rx · datasheet p.2 Ku Rx 10.95 - 12.75 GHz | Ku Tx | Ku Tx 13.75 - 14.5 GHz
- Mass
- 15 kg datasheet p.2
- Frequency range
- 10 950 MHz min · Rx · datasheet p.2 13 750 MHz min · Tx | 12 750 MHz max · Rx | 14 500 MHz max · Tx | 10 950–12 750 MHz Rx +1
- Envelope (L×W×H)
- 500 x 500 x 250 mm datasheet p.2
- G/T
- 9 dB/K datasheet p.2
- Data rate
- 20 000 kbps max · Up to 20/20 Mbps via HTS · datasheet p.2
- EIRP
- 47.5 dBW datasheet p.2
- Supply voltage
- 11 V min · datasheet p.2 50 V max | 11–50 V
- Power consumption
- 150 W datasheet p.2
- Data interface
- Ethernet 2x RJ45 · datasheet p.2
- Operating temperature
- -20 °C min · datasheet p.2 50 °C max | -20–50 °C
- Offering
- portable or mobile terminal datasheet p.1
- Installation
- mobile (on-the-move) GEO mobility terminal, mounts on any vehicle · datasheet p.1
- Polarization
- linear datasheet p.2
- Connector
- 2x RJ45 datasheet p.2
- Satellite class
- GEO GEO mobility terminal, Intelsat GEO network FlexMove · datasheet p.1
Each value is typed with its unit and measurement condition and cites the datasheet page it was taken from. Nothing is guessed: a field that is absent here has not been published by the manufacturer. machine-extracted ✓ checked by NewSpace Market ✓ manufacturer confirmed by the manufacturer.
As published by the supplier13 lines, in the manufacturer's own wording
- Dimensions
- 500 x 500 x 290 mm
- Mass
- 15 kg
- Environmental rating
- IP67 water and dust proof
- Scan angles
- Elevation 15-90 degrees; azimuth continuous 360 degrees
- Power
- 48 VDC, 150 W; AC/DC 100-240 VAC, 47-63 Hz
- Antenna tx
- 13.75-14.50 GHz (Ku band)
- Antenna rx
- 10.95-12.75 GHz (Ku band)
- Eirp
- 47.5 dBW (all scan angles)
- G/t
- 9 dB/K (all scan angles)
- Internal modem
- iDirect IQ200
- Operating temperature
- -46 C to 49 C, MIL-STD-810H compliant
- Data rate
- Up to 85/20 Mbps via HTS satellite, full duplex
- Connections
- 2x RJ45 15 W PoE connectors
About

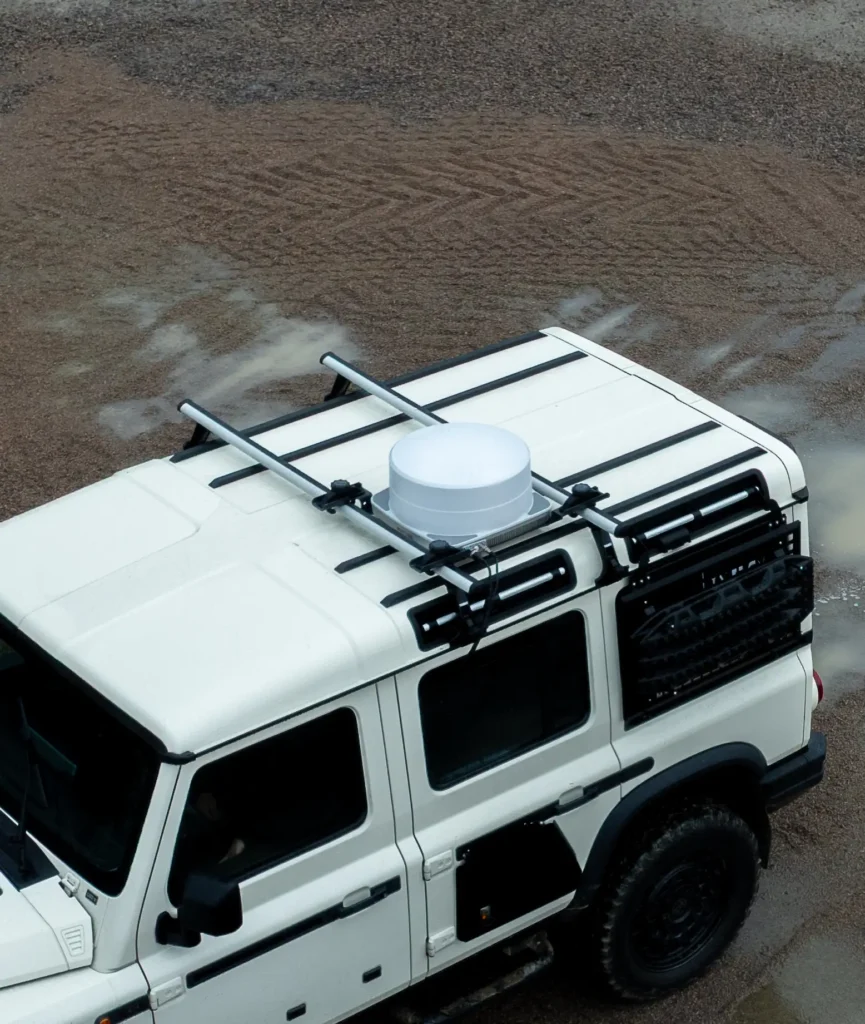

Satcube Motion is described as the world’s smallest and most intuitive mobility on-the-move terminal, mountable on any vehicle due to its low weight and compact size, and able to run on standard vehicle batteries. It operates on Intelsat’s GEO FlexMove network and Satcube Connectivity Services, is MIL-STD 810 and 461 tested, IP67 certified, and built for contested and harsh environments, fully controllable via Satcube’s web-based user interface.
