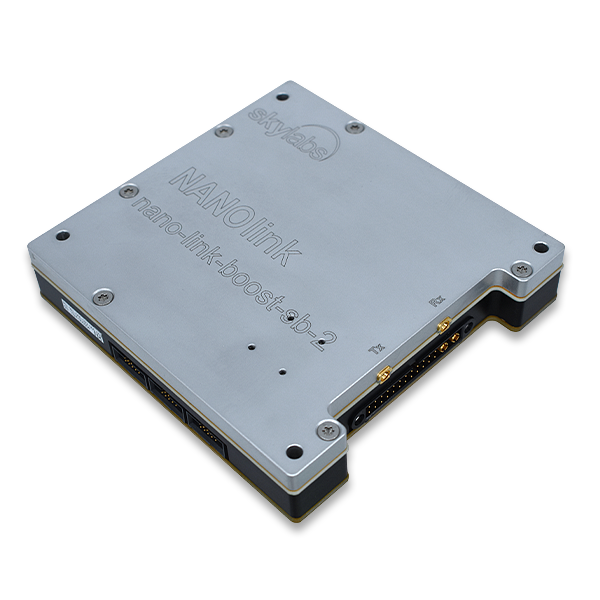

NANOlink(-S)-boost
SkyLabs d.o.o.
S-band communication subsystem with an additional highly efficient amplifier and optional AES-256 encryption.
Key figurescomparable across the catalogue
- Power
- 37 W
- Data rate
- 4 Mbps
- TRL
- 9
Normalised to common units so this product can be compared with others in its category. The supplier's own wording is below.
As published by the supplier
- Standard
- ISO 19683, IPC Class 3+
- TRL
- 9
- Mait
- In-house
- Output power
- Adj. up to 37 dBm (5 W)
- Security (optional)
- AES-GCM-256; CCSDS 355.0-B-2 SDLP; CCSDS 355.1-B-1 SDLP-EP
- Input sensitivity
- -95 dBm @ 4 Mbps OQPSK
- Data rate
- Up to 4 Mbps, full duplex
- Frequency band
- Tx: 2.200 - 2.300 GHz, Rx: 2.025 - 2.110 GHz
- Protocol
- CCSDS compliant
- Tm storage
- Up to 24k log entries
- Interfaces
- Redundant CAN for TM/TC
About
The NANOlink(-S)-boost is a highly miniaturized full-duplex TM/TC satellite communication subsystem, equipped with an additional efficient integrated amplifier and an optional built-in encryption system that provides a high level of security between the satellite and the ground station. Several intelligent built-in functions enable the NANOlink(-S)-boost to operate as a fully autonomous system, facilitating the streamlined acquisition of satellite diagnostic data. The optional security features (-S) utilize the CCSDS Space Data Link Security protocol. Additionally, the NANOlink(-S)-boost supports the symmetric AES-GCM-256 authenticated encryption algorithm and accommodates multiple encryption keys, making it a key subsystem in NANOsky avionics. Qualified to ISO 19683 and IPC Class 3+, in-house MAIT, TRL 9.
Documentation
No public datasheet yet — request the datasheet / ICD from the supplier.
