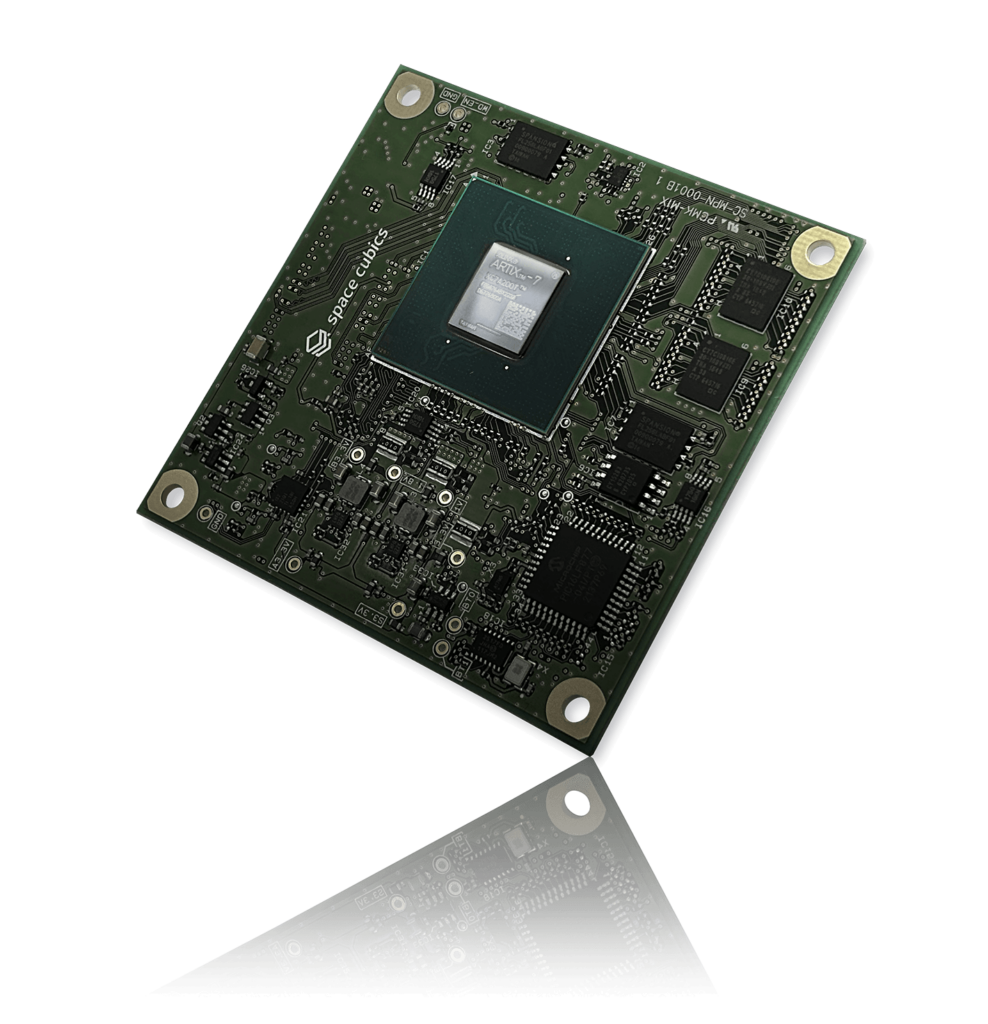

SC-OBC Module A1
Space Cubics Inc.
CubeSat on-board computer on a Xilinx Artix-7 FPGA with Zephyr RTOS, 70 x 70 x 9.6 mm, 30 g, 2.0 W max, built on JAXA-derived technology.
Typed specifications12 values
Discloses 6 of 13 fields engineers filter by in this category (category median 5).
- Processor
- Xilinx Artix-7 FPGA product page Cortex-M3 / MicroBlaze-V
- Mass
- 30 g product page
- CPU clock
- 24 MHz product page
- Envelope (L×W×H)
- 70 x 70 x 9.6 mm product page
- RAM
- 4 MB product page 32 MB | 0.5 MB
- Mass storage
- 0.031 GB product page
- Operating system
- Zephyr product page
- Power consumption
- 2 W product page
- Connector
- 80 pin, 0.5 mm pitch product page
Each value is typed with its unit and measurement condition and cites the datasheet page it was taken from. Nothing is guessed: a field that is absent here has not been published by the manufacturer. machine-extracted ✓ checked by NewSpace Market ✓ manufacturer confirmed by the manufacturer.
As published by the supplier18 lines, in the manufacturer's own wording
- Main processor
- Xilinx Artix-7 FPGA
- Main cpu
- Cortex-M3 / MicroBlaze-V
- Preinstalled os
- Zephyr RTOS
- Communication interface
- CAN, I2C, UART
- FPGA user i/o
- 38 pin
- Pic user i/o
- 3 pin
- Anomaly detection / system recovery
- 8 bit PIC MCU
- Watchdog timer
- 1 (IP core)
- Clock generator
- 24 MHz x 2
- On-chip sram
- 64 KByte FPGA block RAM
- On-board sram
- 4 MBytes
- Nor flash memory (configurable)
- 32 MBytes x 2
- Feram
- 512 KBytes x 2
- Interface connector
- 80 pin, 0.5 mm pitch
- Supply voltage
- DC 5.0 V +/- 10%
- Power consumption
- 2.0 W (max)
- External dimensions
- 70 x 70 x 9.6 mm
- Mass
- 30 g
About

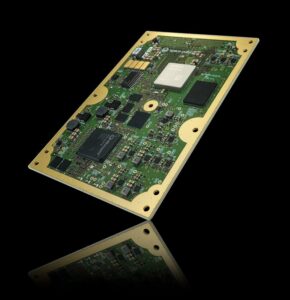

The SC-OBC MODULE A1 board is optimized for use in CubeSats. Space Cubics uses technology cultivated by JAXA for reliable, safe use on the International Space Station. These boards use a Xilinx Artix-7 FPGA, allowing flexible configuration and multiple interface options. Not limited to CubeSats, the boards can also benefit other spacecraft and even terrestrial applications here on Earth.
During installation in Space Cubics’ own satellite, the SC-OBC Module A1 board was mounted to an interface board with a PC104 form factor. Space Cubics also provides custom circuit board design services to connect the SC-OBC Module A1 to the customer’s satellite.
The module carries an 8-bit PIC MCU for anomaly detection and system recovery, an IP-core watchdog timer, and redundant non-volatile memory: 32 MByte NOR flash x2 (configurable) and 512 KByte FeRAM x2.
The vendor lists a limited-time price of 300,000 JPY excluding tax, available until space-readiness testing is approved, and conditioned on the customer allowing publication of the purchase and of launch results, and on sharing in-orbit functional and performance data (kept confidential).
Documentation
No public datasheet yet — request the datasheet / ICD from the supplier.
