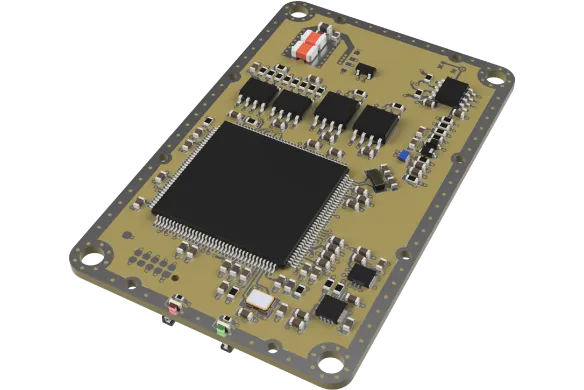

Deep Thought
Spacemanic s.r.o.
Deep Thought is a compact, flight-proven on-board computer designed for small satellites, offering robust processing capabilities, extensive interfaces, and integrated sensors.
Typed specifications65 values
Discloses 9 of 13 fields engineers filter by in this category (category median 5).
- Processor
- Microchip SAMV71Q21 32-bit Arm Cortex M7 datasheet p.5
- Mass
- 25 g datasheet p.6
- CPU clock
- 16 MHz HF crystal (LF crystal 32.768 kHz) · datasheet p.6
- Envelope (L×W×H)
- 67 x 42 x 7 mm datasheet p.6
- RAM
- 3 MB FRAM · datasheet p.5
- Mass storage
- 0.031 GB data storage external Flash, 4 x 32 MiB (4 Flash ICs S25FL256L) · datasheet p.6 0.001 GB data storage external FRAM, 3x1 MiB (3 FRAM ICs CY15B108QN) | 0.125 GB Flash
- Operating system
- FreeRTOS datasheet p.6 other alt. Custom; MCU compatible with various RTOS systems
- Supply voltage
- 3.3 V nom. · power supply · datasheet p.6 3.3 V | 3 V min · Power Input | 3.6 V max · Power Input | 3–3.6 V power input min / max (typ. 3.3 V)
- Power consumption
- 0.33 W nom. · average · datasheet p.6 0.33 W average | 0.5 W max · peak | 0.5 W max · peak, <500 mW
- Data interface
- SPI SPI-0 external SPI for sensor interfacing, typical speed 40 MHz · datasheet p.6 other ADC | CAN CSP CAN | I2C CSP I2C | I2C CSP I2C up to 400 kHz; isolated plain I2C (I2C-1) up to 400 kHz +22
- Operating temperature
- -40 °C min · datasheet p.6 85 °C max | -40–85 °C
- Processor architecture
- ARM Cortex-M Arm Cortex M7 · datasheet p.5
- Flight software support
- CSP (CubeSat Space Protocol) over I2C, over RS485 KISS and over CAN datasheet p.6 CSP
- Radiation and fault mitigation
- rad-hard components flight model integrating radiation tolerant MCU (SAMV71Q21RT) · datasheet p.5
- Connector
- Main J1 board-to-board Molex SlimStack 55650-0688 (motherboard 54363-0689), extension J2; programming Molex PicoLock 503763-0691 (motherboard 503764-0601) datasheet p.8 Molex SlimStack 55650-0688 Main J1 (on module) | Molex SlimStack 54363-0689 Main J1 (on motherboard) | Molex PicoLock 503763-0691 Programming (on module) | Molex PicoLock 503764-0601 Programming (on motherboard)
- Flight heritage
- on 10+ missions (e.g. LASARsat, CroCube, Planetum-1 and external customers) datasheet p.5
- Missions flown
- 10 datasheet p.5 10 min · flight heritage on 10+ missions
- GPIO lines
- 18 up to, 3.3 V range, shares pins with SPI-0, ADC, PWM · datasheet p.6
- RAM type
- FRAM external FRAM data storage · datasheet p.6
- Data interface speed
- 1 Mbps max · CSP CAN, speed up to · datasheet p.6
- Analog inputs
- 5 min · ADC >5 x 12bit with 3.3 V range · datasheet p.6
Each value is typed with its unit and measurement condition and cites the datasheet page it was taken from. Nothing is guessed: a field that is absent here has not been published by the manufacturer. machine-extracted ✓ checked by NewSpace Market ✓ manufacturer confirmed by the manufacturer.
As published by the supplier37 lines, in the manufacturer's own wording
- Operating temperature
- -40°C to +85°C
- Dimensions
- 67 x 42 x 7.5 mm
- Mass
- 25 g
- Power supply
- 3.3 V
- Power consumption
- 330 mW (average)
- Power consumption (peak)
- < 500 mW (peak)
- Operating system
- FreeRTOS based
- On-board sensors
- Gyro, accelerometer, magnetometer, temperature
- Microcontroller
- SAMV71Q21
- Clock speeds
- 32.768 kHz (low power mode)
- Clock speeds (2)
- 16 MHz (standard mode)
- Watchdog
- Internal & external watchdog for added reliability
- Memory
- 3 x 1 MiB external FRAM storage
- Memory (2)
- 4 x 32 MiB external Flash storage
- Interfaces (CSP v1)
- 2x I2C & 1x isolated I2C
- Interfaces (CSP v1) (2)
- 1x RS485
- Interfaces (CSP v1) (3)
- 1x UART
- Interfaces (CSP v1) (4)
- 1x CAN
- Interfaces (CSP v1) (5)
- 1x SPI
- Interfaces (CSP v1) (6)
- 6x PWM
- Interfaces (CSP v1) (7)
- 22x GPIO (4x ADC: 12-bit, 3.3 V range)
- Interfaces (CSP v1) (8)
- USB
- Interfaces (CSP v1) (9)
- QSPI
- Interfaces (CSP v1) (10)
- JTAG on separated connector
- Flight heritage
- Yes
- ITAR
- Free
- Power consumption - average
- 330 mW
- Mcu
- SAMV71Q21
- Hf crystal
- 16
- Lf crystal
- 32.768
- Data storage external fram
- 3 x 1
- Data storage external flash
- 4 x 32
- On-board magnetometer
- MMC5983
- On-board gyroscope & accelerometer
- ICM-42688-P
- Power input
- 3.0
- Current draw (3.3 V)
- 100
- Gpio level (including comm. Buses)
- -0.2
About
The Deep Thought is a high-performance on-board computer specifically engineered for space applications, featuring a compact design and robust functionality. It is built around a SAMV71Q21 microcontroller and runs on a FreeRTOS-based operating system. The computer includes internal and external watchdogs for enhanced reliability and offers significant memory with 3x 1 MiB external FRAM storage and 4x 32 MiB external Flash storage. It integrates a suite of on-board sensors including a gyroscope, accelerometer, magnetometer, and temperature sensor. The Deep Thought provides a wide array of interfaces, including 2x I2C (one isolated), 1x RS485, 1x UART, 1x CAN, 1x SPI, 6x PWM, 22x GPIO (with 4x 12-bit ADC), USB, QSPI, and JTAG on a separated connector. It operates across a wide temperature range of -40°C to +85°C and has a low power consumption profile. The product comes with an aluminum cover, a USS Module for testing and development, a debug cable, 1 hour of engineering support, and is shipped in a hardcase. It is ITAR-free and has flight heritage.
Documentation
Need the full ICD, test reports or a specific revision? Ask the supplier directly.
