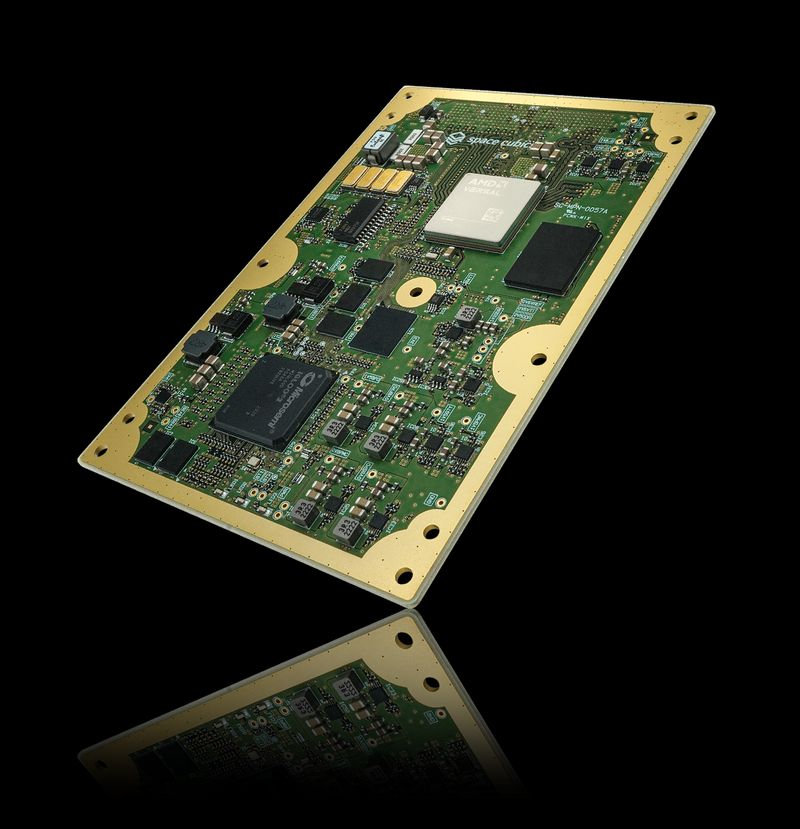

SC-OBC Module V1
Space Cubics Inc.
High-end space-grade on-board computer on the AMD Versal AI Edge VE2302 adaptive SoC, with rad-tolerant 4 GB DDR4 ECC, 64 GB eMMC, 100 x 150 mm, 110 g.
Typed specifications9 values
Discloses 2 of 13 fields engineers filter by in this category (category median 5).
- Processor
- AMD Versal AI Edge Series VE2302 product page Dual core Arm Cortex-A72 up to 1.3 GHz (48/32 KByte L1 with parity and ECC, 1 MByte L2 with ECC) | Dual core Arm Cortex-R5F up to 600 MHz (32/32 KByte L1, 256 KByte TCM with ECC) | Microchip IGLOO2
- Mass
- 110 g product page
- Envelope (L×W×H)
- 100 x 150 mm product page
- Operating system
- Linux product page Zephyr
- Operating temperature
- -40–80 °C product page
Each value is typed with its unit and measurement condition and cites the datasheet page it was taken from. Nothing is guessed: a field that is absent here has not been published by the manufacturer. machine-extracted ✓ checked by NewSpace Market ✓ manufacturer confirmed by the manufacturer.
As published by the supplier20 lines, in the manufacturer's own wording
- Main processor
- AMD Versal AI Edge Series VE2302
- Application processor
- Dual core Arm Cortex-A72 up to 1.3 GHz (48/32 KByte L1 with parity and ECC, 1 MByte L2 with ECC)
- Real-time processor
- Dual core Arm Cortex-R5F up to 600 MHz (32/32 KByte L1, 256 KByte TCM with ECC)
- Ai engine
- AI Engine-ML tiles 34; AIE/AIE-ML data memory 17 Mbit; AIE-ML shared memory 68 Mbit
- Programmable logic
- System logic 328,720; LUTs 150,272; DSP engines 464; block RAM 5.4 Mbit; UltraRAM 43.6 Mbit; accelerator RAM 32 Mbit
- Safety processor
- Microchip IGLOO2
- Main memory
- Radiation-tolerant DDR4 with ECC, 4 GByte
- Boot memory
- MRAM 64 MByte (redundant)
- Storage
- eMMC 64 GByte
- High reliability memory
- MRAM 8 MByte x 2
- Operating system
- Linux on APU, Zephyr RTOS on RPU
- Versal mio
- Platform management 27 signals, low power domain 26 signals; Gigabit EtherMAC, USB2.0 (ULPI), UART, I2C, SPI, GPIO, CAN FD, SD/eMMC
- Versal pl xpio
- 54 signals (VDDIO 1.0/1.2/1.35/1.5 V)
- Versal gtyp
- 40 signals; 4 clock pairs; 8 TX pairs; 8 RX pairs
- Igloo2 msio
- 48 signals (VDDIO 1.2/1.5/1.8/2.5/3.3 V)
- Health monitoring
- On-board temperature sensor, current/voltage monitor; over-current detection, brownout protection
- Power supply
- DC 5.0 V, 20-40 W typical
- Operating temperature
- -40 to 80 C
- Dimensions
- 100 x 150 mm
- Mass
- 110 g
About
SC-OBC Module V1 is a cutting-edge OBC for space applications, powered by the AMD Versal Adaptive SoC, a powerful heterogeneous computing platform that integrates Arm processing subsystems, programmable logic (PL), and an AI Engine (AIE).
Engineered for next-generation missions, it delivers comprehensive onboard capabilities, from capturing massive data streams from advanced sensors such as SAR and LiDAR, to real-time edge processing and reliable high-capacity data storage.
Use cases: high-speed data processing for Earth observation sensors (SAR, LiDAR); guidance, navigation and control (GNC); LEO, GEO and lunar missions covering orbiters, landers and probes.
The module pairs the Versal device with a Microchip IGLOO2 safety processor, radiation-tolerant DDR4 memory with ECC, redundant MRAM boot memory and high-reliability MRAM, plus on-board temperature sensing, current/voltage monitoring, over-current detection and brownout protection. Linux runs on the application processor and Zephyr RTOS on the real-time processor.
Documentation
No public datasheet yet — request the datasheet / ICD from the supplier.
